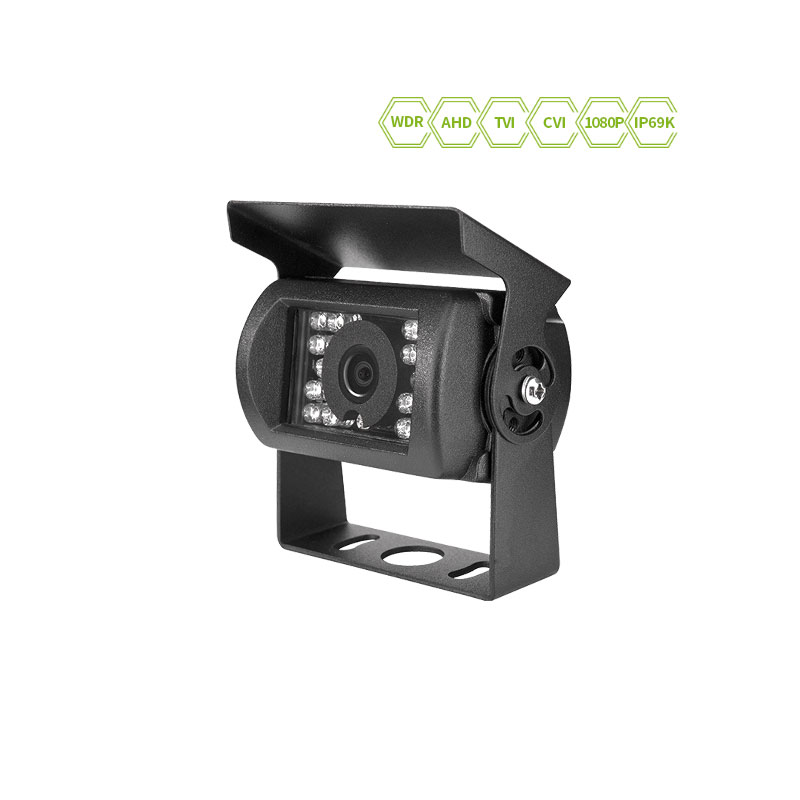

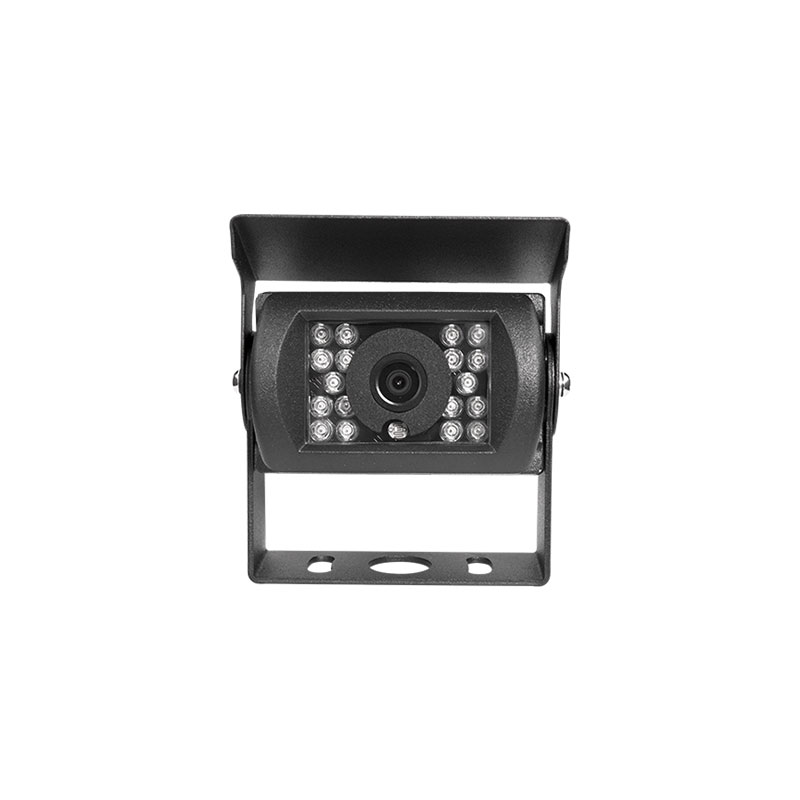

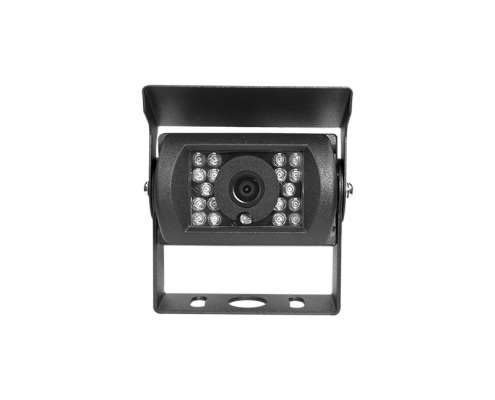

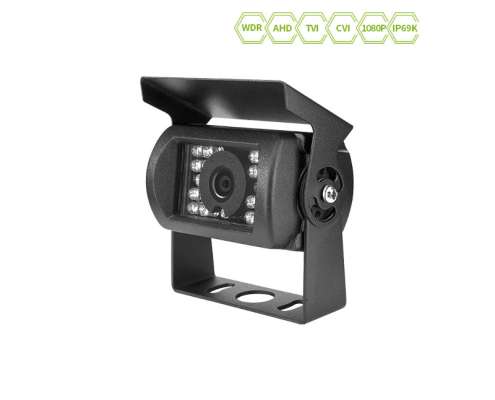

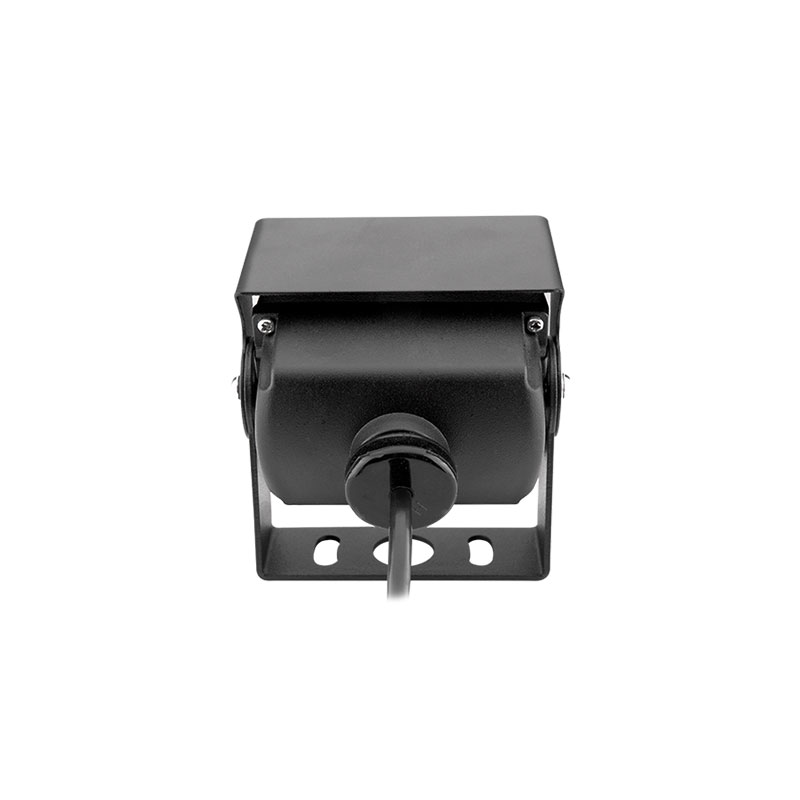

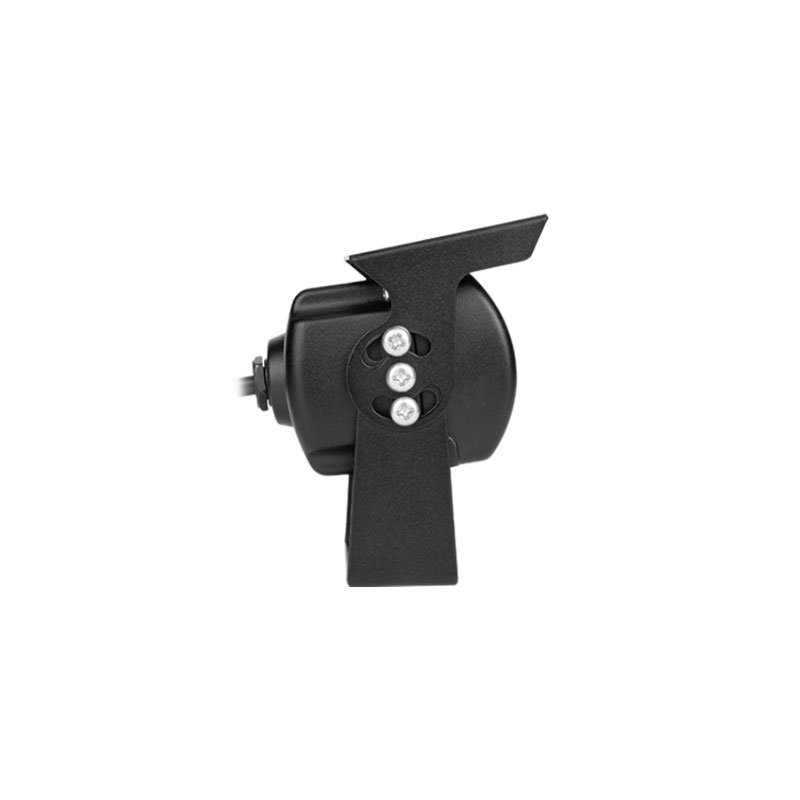

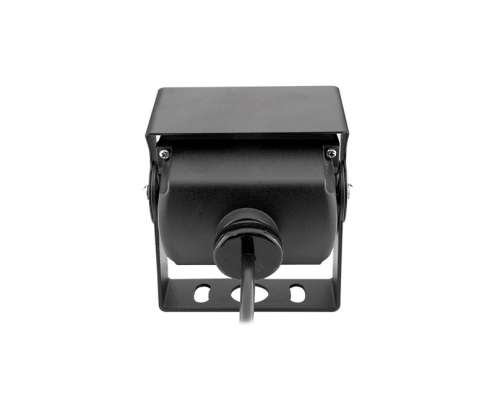

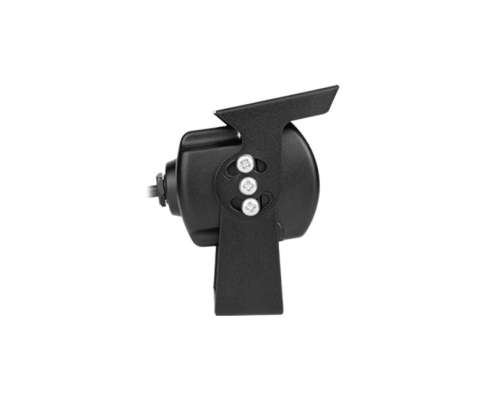

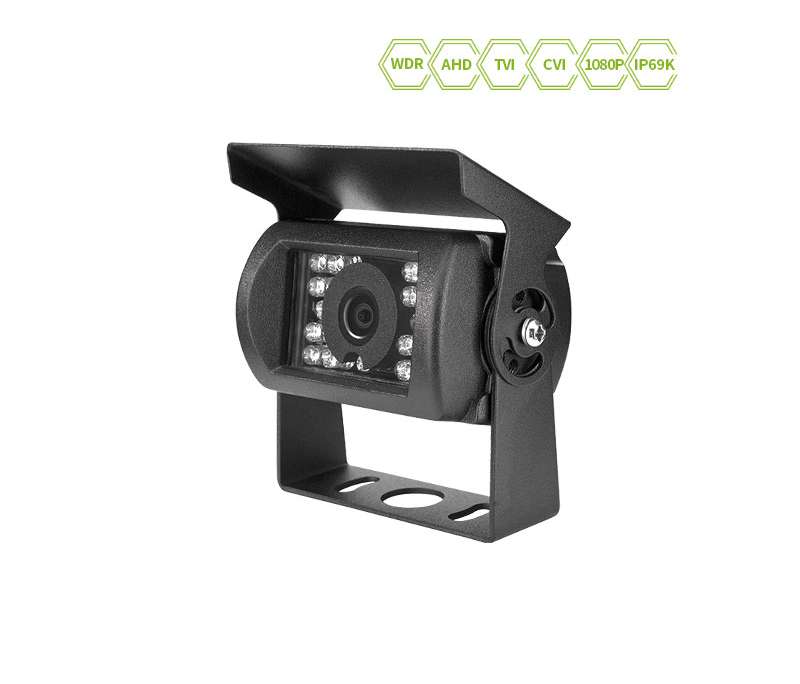

JY-663 IP69K 480 TVL rear view camera with Sharp ccd sensor
Product Features
For crystal-clear vision and enhanced driving safety, LUVIEW offers the ultimate solution. The JY-663 rear view camera packs 480TVL resolution with 1/3 CCD image chip technology plus 18 infrared LEDs for superior day or night visibility – no color loss in sight! Make sure your vehicle is equipped with our cutting edge products – simply send an email to [email protected] and let us serve you today !
- IP69K
- Support mirror switch
- Support ICR switching
- Infrared distance is 13m
- 2Megapixel sensor of SONY
- With night vision function
Technical Specifications
| Image Sensor | 1/3 SHARP CCD |
| TV System | NTSC/PAL |
| Effective Pixels | P:752(H)×582(V) N:768(H)×494(V) |
| Sensing Area | 4.880mm*3.670mm |
| Sync. System | Internal |
| Resolution | 480 TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 18PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 115° |
| Current Drain | 80±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
