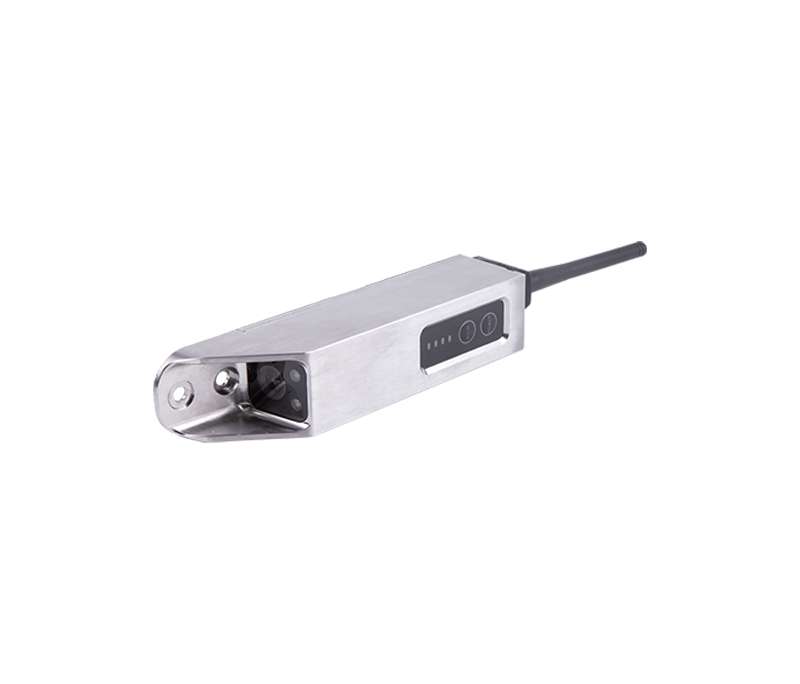

JY-F5 IP68 waterproof wireless forklift camera with magnetic

Product Features

In dynamic warehouse and construction environments, the LUVIEW JY-F5 IP68 waterproof wireless forklift camera significantly enhances operational safety and efficiency, especially in narrow and low-visibility areas. The JY-F5 camera features auto-shutdown, quick-start, noise reduction, and image inversion functions, ensuring clear visibility under various conditions. With a durable battery life, a wireless range of 30 meters, and an easily installable magnetic design, it excels in expansive outdoor settings, seamlessly improving forklift safety and production efficiency. Its unique positioning aid function displays a red line on the monitor, assisting drivers in lifting and lowering forks with greater precision, effectively preventing the risk of goods damage.

  • Automatic shutdown function saves battery
  • With positioning aid function
  • Image can be flipped to adapt to different forklifts
  • Noise reduction technology enhances image clarity
  • Quick startup, instant connection
  • Built-in battery for long-lasting power
  • Supports various fast charging methods, strong voltage adaptability
  • LED indicator displays battery level
  • Long-distance connection, stable signal
  • IP68 waterproof design, suitable for outdoor use
  • Magnetic design for convenient installation

Technical Specifications

Image Sensor 1/2.9 CMOS
TV System NTSC/PAL
Effective Pixels 1280(H) X 720(V)
Sync. System Internal
Resolution 720P
Minimum Illumination 0.1 Lux
LED Qty 2PCS
Battery Indicator Light 4PCS
Video Output 1.0 Vp-p/75 Ohm
Scanning System Interlace
AGC AUTO
Signal to Noise Ratio Better than 38dB
White Balance AUTO
Dynamic Balance 81dB
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Built-in Power 3.7V/5000mAh
Charging Supports voltage input of 5V@3A/9V@2A/[email protected], with a maximum charging power of 18W
Fast Charging Protocol QC2.0/QC3.0/PD2.0/PD3.0/FCP/AFC
Power Consumption 1.85W
Standard operating time at room temperature 10 Hours
Charging Time 2.3 Hours
Image Latency <200ms
Waterproof Grade IP68
Lens Focal Length 6mm
Lens Angle 83°
Lens Angle H 52°/V 30°/D 55°
Transmission Distance 30m
Operating Temperature -20℃-60℃,RH 95% MAX
Storage Temperature -20℃-60℃,RH 95% MAX
