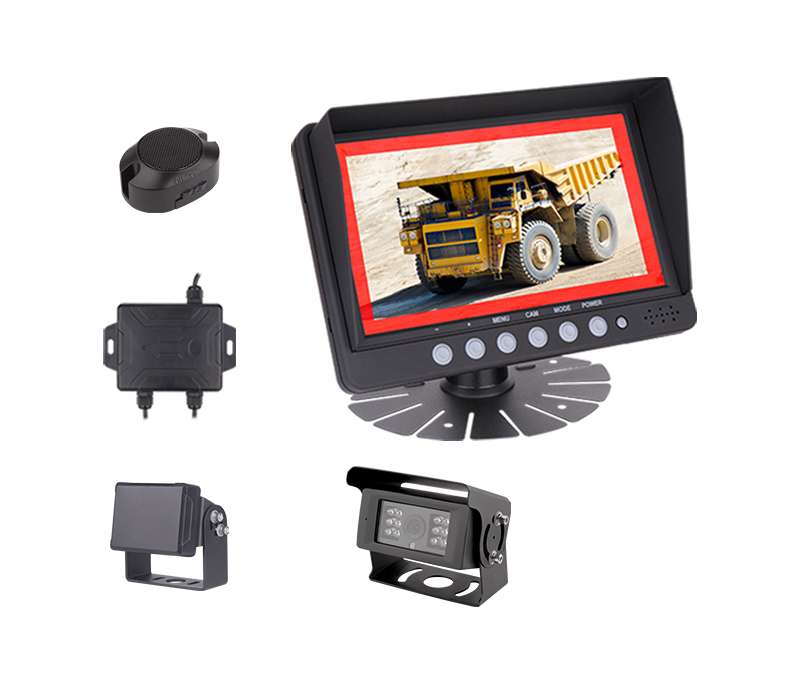

JY-PT09 millimeter wave radar system with sensor, camera and monitor
Product Features
The Luview JY-PT09 radar system integrates the power of millimeter wave technology to detect obstacles even in challenging conditions. By sending out and capturing reflected signals, this revolutionary device is able to calculate distance, speed, angle, and direction – It plays a role in complex road conditions and is very useful for obstacle detection when reversing or parking. It is widely used in large vehicles such as trucks, construction machinery and agricultural machinery.
- High-precision range detection
- With wide voltage power supply
- Dustproof and waterproof grade is IP67
- Radar uses CAN interface to communicate
Technical Specifications
| Product | Radar main box |
| Operating Voltage | 12-24V |
| Operating Current | 210mA/12V |
| Video Signal type | AHD 720P |
| Signal Standards | NTSC/PAL |
| Operating Temperature | -20℃-70℃ |
| Operating Humidity | RH50%～95% |
| Storage Temperature | -40℃-85℃ |
| Product | Radar sensor |
| Transmission frequency | 24.00-24.20GHz |
| Transmission power | 20dBm |
| Update rate | 20Hz |
| Power consumption | 1.8W MAX @12V DC 25℃ |
| Distance measuring range | Passenger cars 0.1-30m, pedestrians 0.1-15m |
| Operating Voltage | 12-24V |
| Operating Temperature | -40℃-85℃ |
| Storage Temperature | -40℃-95℃ |
| Maximum Operating Current | Max：200mA@12V DC |
| Detection Angle | Horizontal degrees: 56, vertical degrees:40 |
| Installation height | 40-150cm |
| Distance accuracy | 0.1m |
