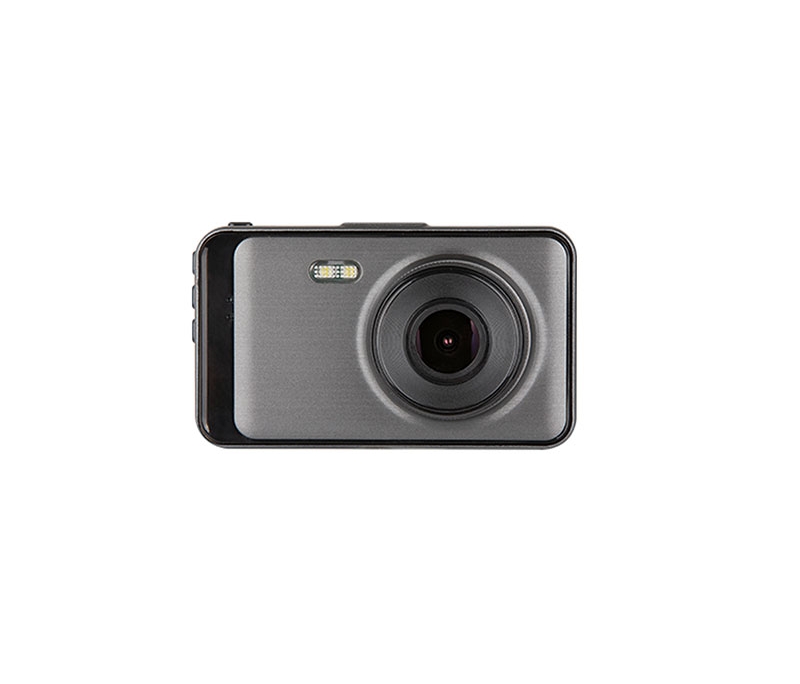

SD204 card type stylish universal dash camera
Product Features
SD204 is a card type universal car dash camera with stylish appearance, exquisite workmanship, and convenient installation, suitable for a variety of vehicles. The recorder supports menu languages such as Chinese, English, French and German, and is suitable for many countries and regions. After installation, it can record the video and sound of the whole process of the car driving, provide evidence for traffic accidents, and record the time, speed, and location in the video, which is equivalent to a “black box”.
- 150°Wide field of view
- H.264 encoding
- GPS track playback
- High and low temperature resistance
Technical Specifications
Image Sensor | 1/3 CMOS PC2099K |
TV System | NTSC/PAL |
Effective Pixels | 968(H)*488(V) |
Sensing Area | 6.2um*7.4um |
Sync. System | Internal |
Resolution | 700 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 6PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.3mm |
Lens Angle | 150° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
