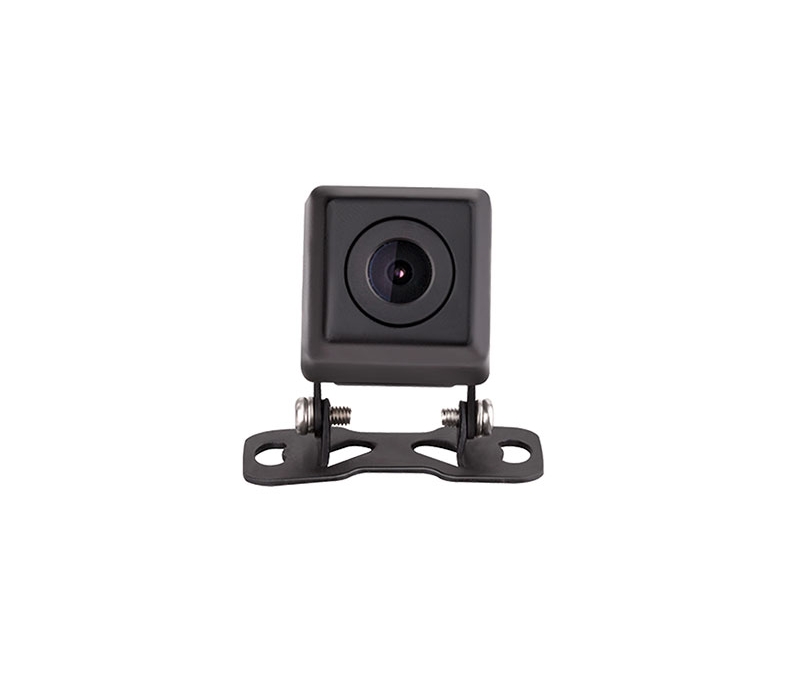

JY-025 mini camera with 1/3 AHD cmos sensor and metal bracket
Product Features
The Luview JY-025 colorful AHD mini camera offers an incredibly vivid and detailed view of the road. With its cutting edge 1/3 AHD mini car camera, a metal bracket for secure mounting to your vehicle, plus a powerful 1.3 megapixel analog HD sensor – you’re guaranteed reliable protection while on the go! Enjoy real time video and audio functions that give you peace of mind when travelling; rest assured knowing your safety is in good hands with this top notch mini camera.
- Can be installed anywhere on the vehicles
- support analog hd video 700TVL
- Waterproof grade IP69K
- Support mirror switching and ruler control functions
Technical Specifications
| Image Sensor | 1/3 CMOS PC2099K |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)*488(V) |
| Sensing Area | 4.880mm*3.670mm |
| Sync. System | Internal |
| Resolution | 700 TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | NO |
| IR LED Qty | NO |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 1.7mm |
| Lens Angle | 145° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
