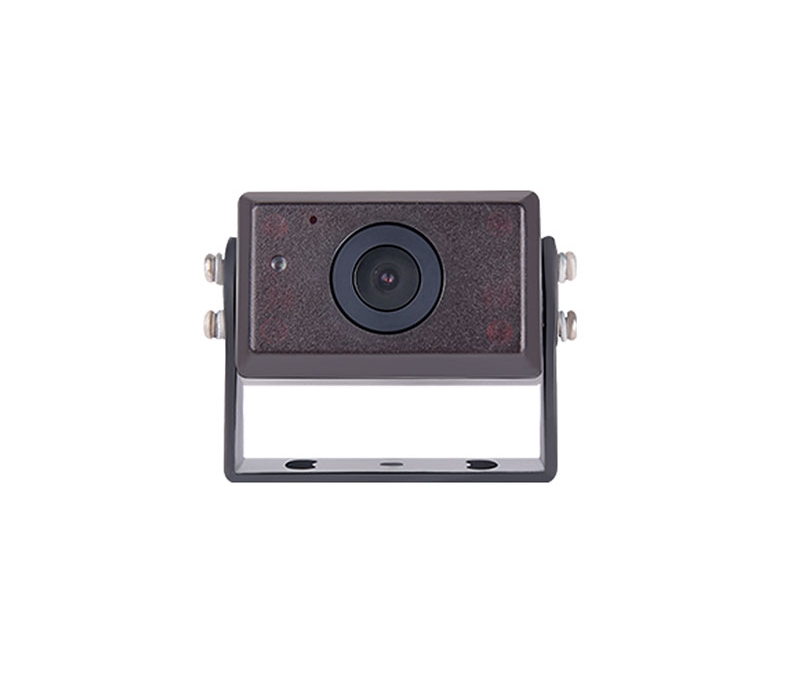

JY-026 HD mini camera with infrared night vision
Product Features
JY-026 is a high quality car camera with infrared night vision function. In a dark environment with no visible light or low light, the camera uses an infrared emitting device to actively project infrared light onto the object, and the infrared light enters the lens for imaging after being reflected by the object. The infrared night vision function can fully ensure that the driver can drive safely in the dark environment, effectively improving driving safety.
- with night vision function
- support analog hd video 700TVL
- Waterproof grade IP69K
- Support mirror switching and ruler control functions
Technical Specifications
| Image Sensor | 1/3 CMOS PC1058K |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)*592(V) |
| Sensing Area | 4.880mm*3.670mm |
| Sync. System | Internal |
| Resolution | 700 TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 2PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 1.7mm |
| Lens Angle | 145° |
| Current Drain | Daytime current 50mA ± 5, night vision current 210mA ± 5 |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
