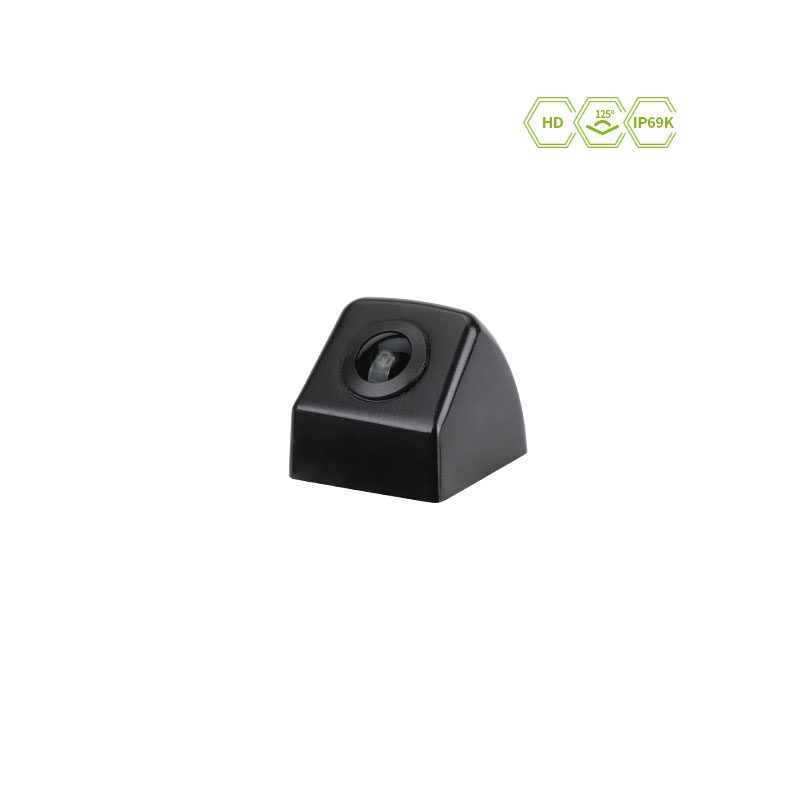

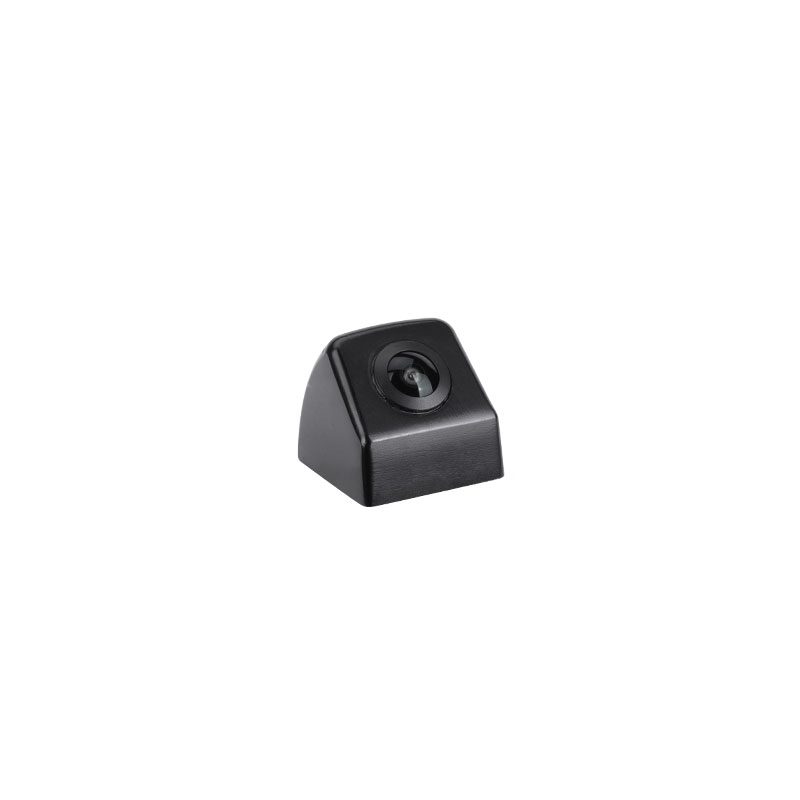

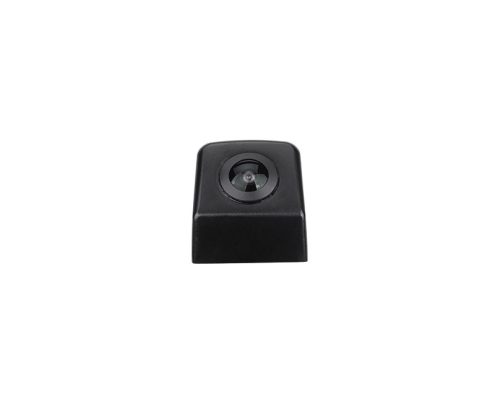

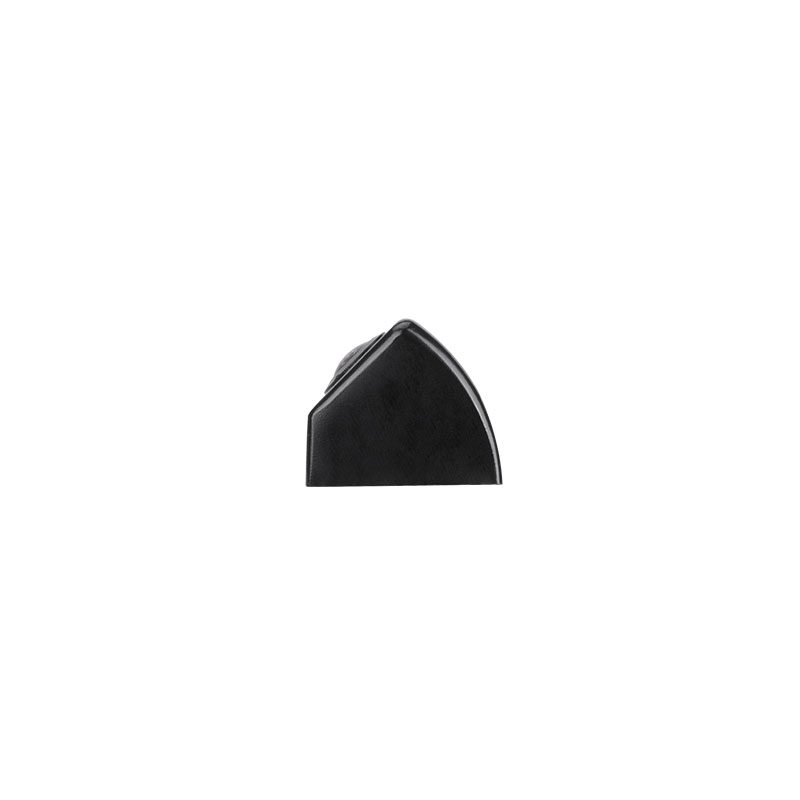

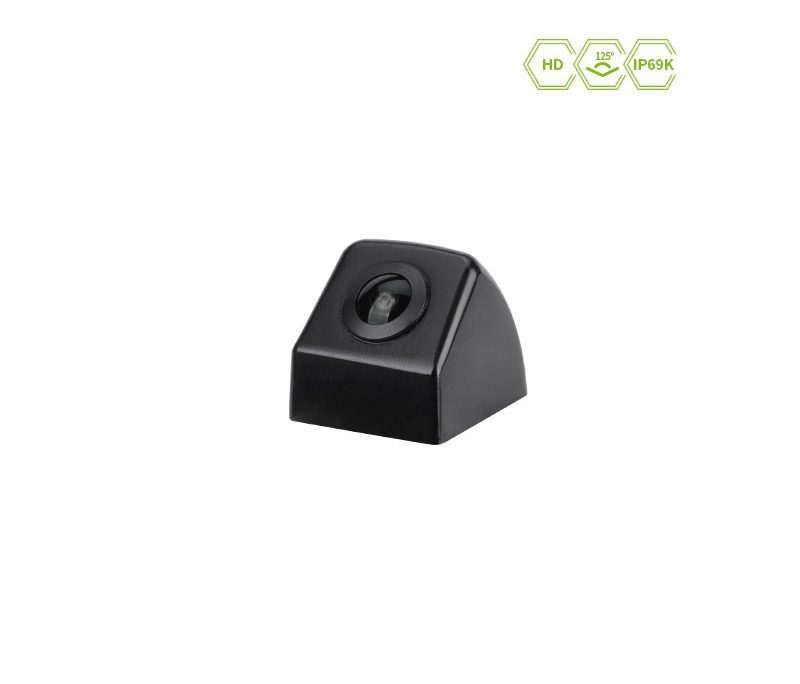

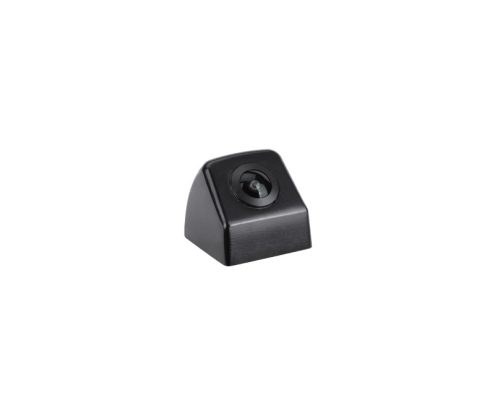

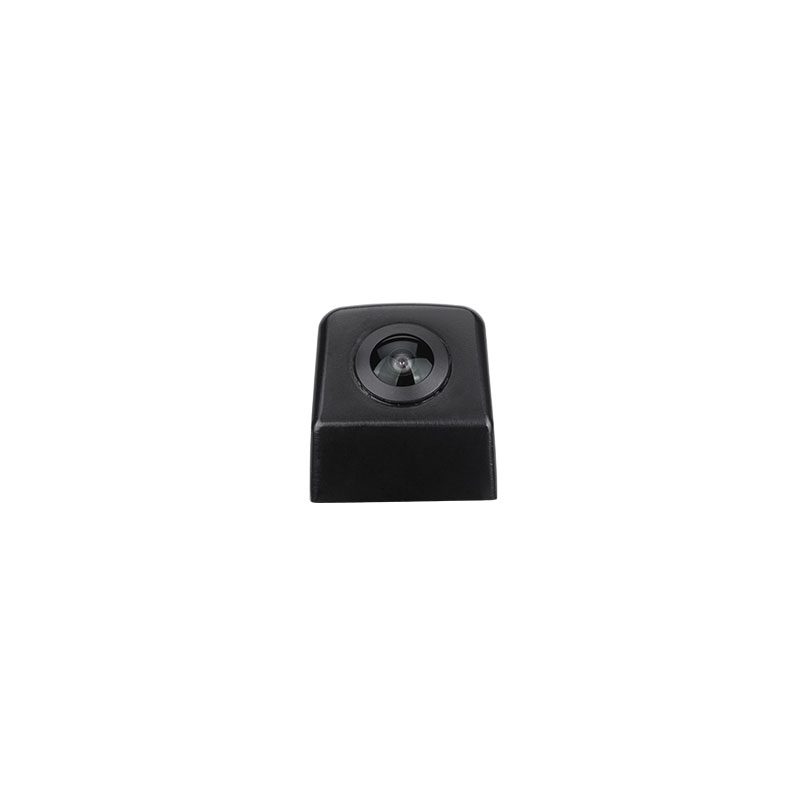

JY-028 1/4 CMOS wide angle HD waterproof mini camera for car safety
Product Features
This mini camera equipped with a 1/4 CMOS sensor, ensures clear and high-quality images. With a 125° wide-angle view and HD-Analog output, it effectively resolves blind spot challenges on the road. The IP69K waterproof rating ensures stable operation in harsh conditions, and the integration of noise reduction and 2D-DNR technology enhances image clarity, providing reliable driving support for improved road safety.
- adopt a 1/4 CMOS 1-megapixel high-performance sensor
- ultra-wide viewing angle of 125 degrees
- HD-analog signal output
- waterproof grade IP69K
- add noise reduction processing, 2D-DNR
Technical Specifications
| Image Sensor | 1/4 CMOS |
| TV System | NTSC/PAL |
| Effective Pixels | 1284(H)*724(V) |
| Frame rate | 720P@30fps/720P@25fps |
| Sync. System | Internal |
| Resolution | 720P/100W |
| Minimum Illumination | 0.1 Lux |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 43.1dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC：12V±1V |
| Lens | 1.6mm |
| Lens Angle | Horizontal: 110° Vertical:63° Diagonal:125° |
| Current Drain | 40±5mA/12V |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
