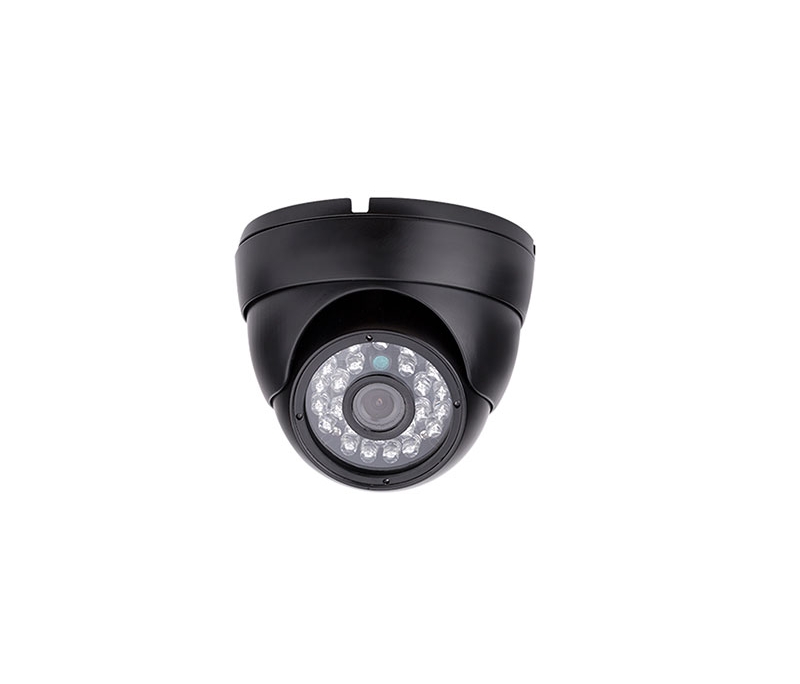

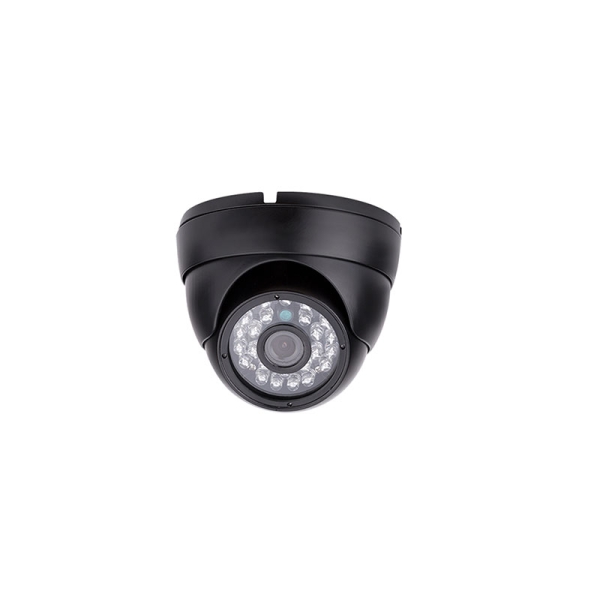

JY-D12 IP20 non waterproof inside dome camera with night vision infrared LEDs
Product Features
The Luview JY-D12 is an IP20 non waterproof in-car dome camera that boasts a unique hemispherical shape and the ability to switch between mirror mode and ICR, allowing for real time inside monitoring of passenger vehicles such as buses, subways or trains. Featuring 24 built-in LED lamp beads, it ensures optimal image capture quality even during late hours or times when visibility may be low. This makes it perfect for both automotive safety as well industrial applications!
- High performance 2Megapixel sensor of SONY
- Support mirror switch
- Support ICR switching
- With night vision function
Technical Specifications
| Image Sensor | 1/3 CMOS PC2099K |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)×488(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 24PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 115° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
