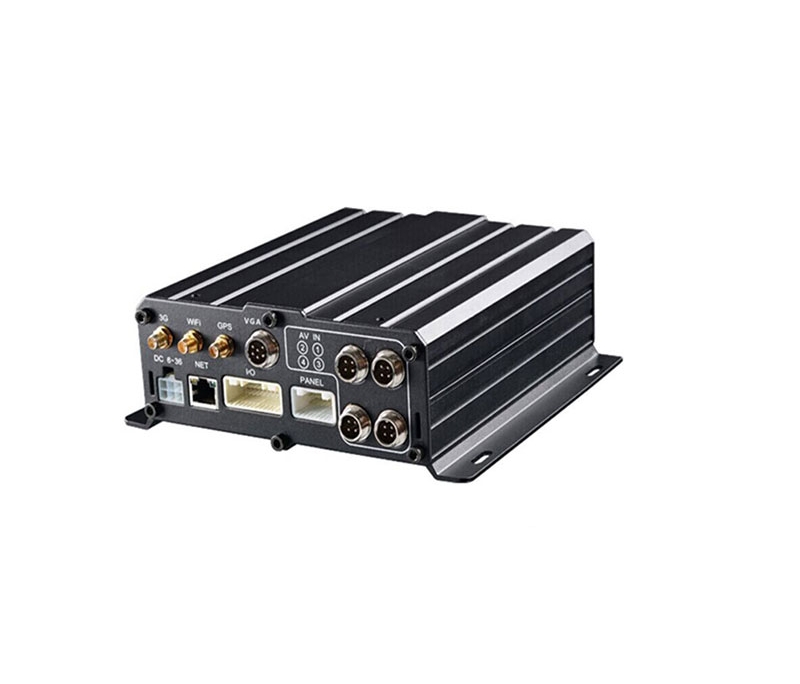

JY-DV6114 4 channel 720p economical mobile DVR supports SD card
Product Features
Luview’s JY-DV6114 mobile video recorder offers unparalleled value for your money. This economical 4 channel 720P mobile DVR (SD MDVR) will deliver quality results at an unbeatable price! For those needing more, a variety of auto DVR models are available in stock or made to order through Luview’s OEM car DVRS and MDVRS services.
4-CH 720P Analog High Definition SD MDVR
H.264 Video Compression, Support 4CH720p video record.
Support Max Mega Pixels real-time HD Video Recording,960H/720P/D1/HD1/CIF for Optional,Adjustable Frame Rate Quality.
Support Max 128GB SD card Mirror video record, Damping shock technology.
Support 3G/4G Network.
Support GPS,G-sensor and WIFI module.
Support External WIFI module
2 high-speed USB2.0 interface.
8CH alarm input, 2CH alarm output, support Acousto-optic alarm linkage , Cut off power/Fuel Oil, etc.
Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc;
Built-in hard disk heating function
Power supply: Support 6V – 36V
Dimension : 187(W)*62(H)*200(D) mm
Technical Specifications
| Product | MDVR |
| Language | Chinese/English/Others (can be customized) |
| Video Compression | H.264 |
| Video Input | 4CH 720P AHD input |
| Video Output | 2CH CVBS+ VGA output for optional |
| Resolution | 720P/D1/HD1/CIF, MAX:4 channels of 720P |
| Position | Support Built GPS/BD Module |
| G-Sensor | Support |
| Storage | 2.5’’ HDD+ SD Card,each max 2TB HDD + 128GB SD Card mirror recording to protect data from loss |
| Voltage Input | DC:+8V ~ +36V |
| Voltage Output | [email protected]，[email protected] |
| Power Consumption | Normal Working＜5W Stand-by Status＜0.5W |
| Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% |
