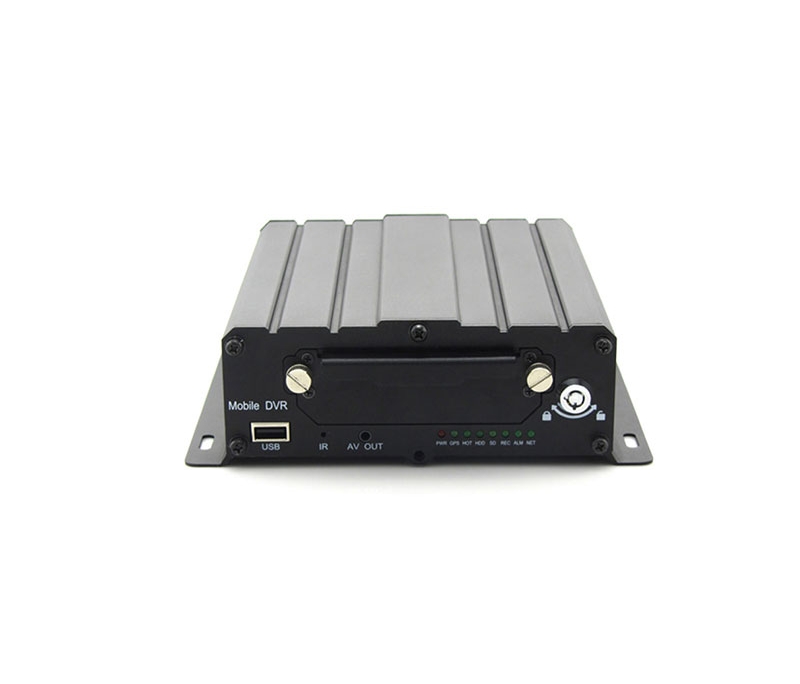

JY-DV810 8 channel 720P MDVR with mirror video recorder
Product Features
The Luview JY-DV810 is an all in one MDVR that offers advanced surveillance for your safety. This 8 channel 720p recording device supports GPS, WiFi and 3G/4G/5G networks with a 2TB HDD storage capacity and 128GB SD card mirror video backup – plus it comes equipped with damping shock technology to ensure stability during bumps or vibrations, as well as built in hard disk heating function to protect against freezing temperatures!
720P Analog High Defination HDD MDVR
H.264 Video Compression, Support 8CH real-time D1 Video Record.
Support Max Mega Pixels real-time HD Video Recording,960H/720P/D1/HD1/CIF for Optional,Adjustable Frame Rate Quality.
Support Max 2TB HDD+128GB SD card Mirror video record, Damping shock technology.
Support 3G/4G Network
Support GPS,G-sensor and WIFI module.
Support External WIFI module
2 high-speed USB2.0 interface.
8CH alarm input, 2CH alarm output, support Acousto-optic alarm linkage , Cut off power/Fuel Oil, etc.
Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc;
Built-in hard disk heating function
Power supply: Support 6V – 36V
Dimension : 186.5(W)x61.5(H)x200(D) mm
Weight : 1.9Kg
Technical Specifications
| Product | MDVR |
| Language | Chinese/English/Others (can be customized) |
| Video Compression | H.264 |
| Video Input | 4CH 720P AHD input |
| Video Output | 2CH CVBS+ VGA output for optional |
| Resolution | 720P/D1/HD1/CIF, MAX:4 channels of 720P |
| Position | Support Built GPS/BD Module |
| G-Sensor | Support |
| Storage | 2.5’’ HDD+ SD Card,each max 2TB HDD + 128GB SD Card mirror recording to protect data from loss |
| Voltage Input | DC:+8V ~ +36V |
| Voltage Output | [email protected]，[email protected] |
| Power Consumption | Normal Working＜5W Stand-by Status＜0.5W |
| Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% |
