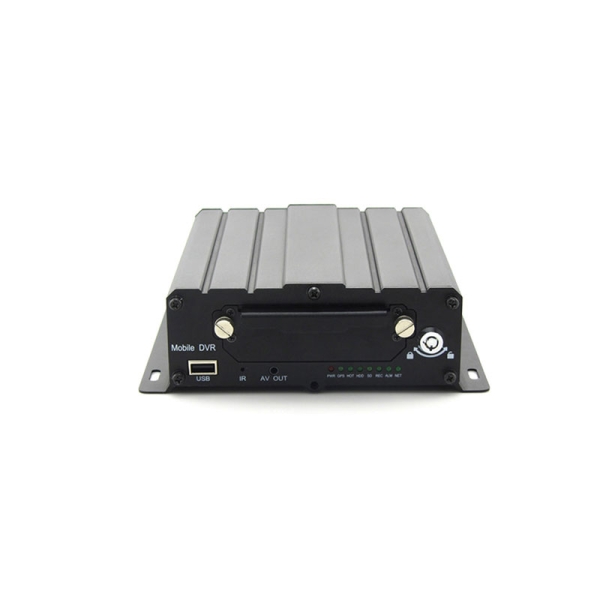

JY-DV610 MDVR for public bus, taxi,commerical van & other vehicles
With the Luview JY-DY610 MDVR, your vehicle’s security can be taken to a whole new level! This 4 CH 720P high definition MDVR / mobile DVR ensures that every moment is recorded and stored in an SD card. In case of any traffic accidents or anti theft events, you”ll have crystal clear footage available for investigation. Enjoy peace of mind on all your journeys with this top notch public safety device!
Product Features
Industrial design,Mini size, Aviation connector input, convenient installation;
H. 264 compression,support 4CH video & 4CH Audio input ;
Real-time HD video recording,720P/D1/HD1/CIF for optional, Frame Adjustable;
+10-36V working voltage,Transient voltages on 8-70V, suitable for all kinds of vehicles.
Max support 128 GB per SD card (Support dual SD card);Exclusive file system
3CH alarm input, linkage of multiple alarms , 1CH alarm output.
Support SMS remote configuration,Support Phone calling.
Support local alarm photo captureing, Support OTA function for convenient maintenance ;
Aviation Video & Audio connector, More stability;
Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc;
Support the GPS, 3G/4G module expansion.
Demension: 112(W) *35.5(H) *137(D) mm
Technical Specifications
| Product | MDVR |
| Language | Chinese/English/Others (can be customized) |
| Video Compression | H.264 |
| OSD | Overlays information such as date time and vehicle ID |
| Video Input | 4CH 720P AHD input |
| Video Output | 2CH CVBS+ VGA output for optional |
| Resolution | 720P/D1/HD1/CIF, MAX:4 channels of 720P |
| Position | Support Built GPS/BD Module |
| G-Sensor | Support |
| Storage | 2.5‘’ HDD+ SD Card,each max 2TB HDD + 128GB SD Card mirror recording to protect data from loss |
| Voltage Input | DC:+8V ~ +36V |
| Voltage Output | [email protected]，[email protected] |
| Power Consumption | Normal Working＜5W Stand-by Status＜0.5W |
| Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% |
