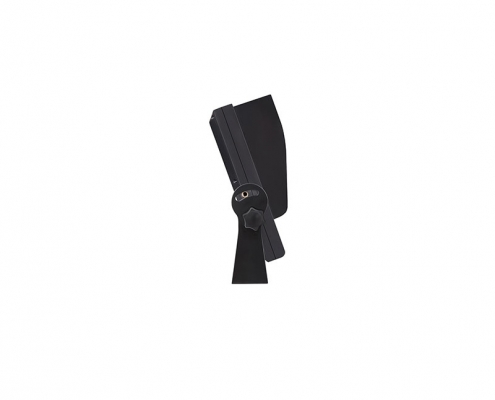

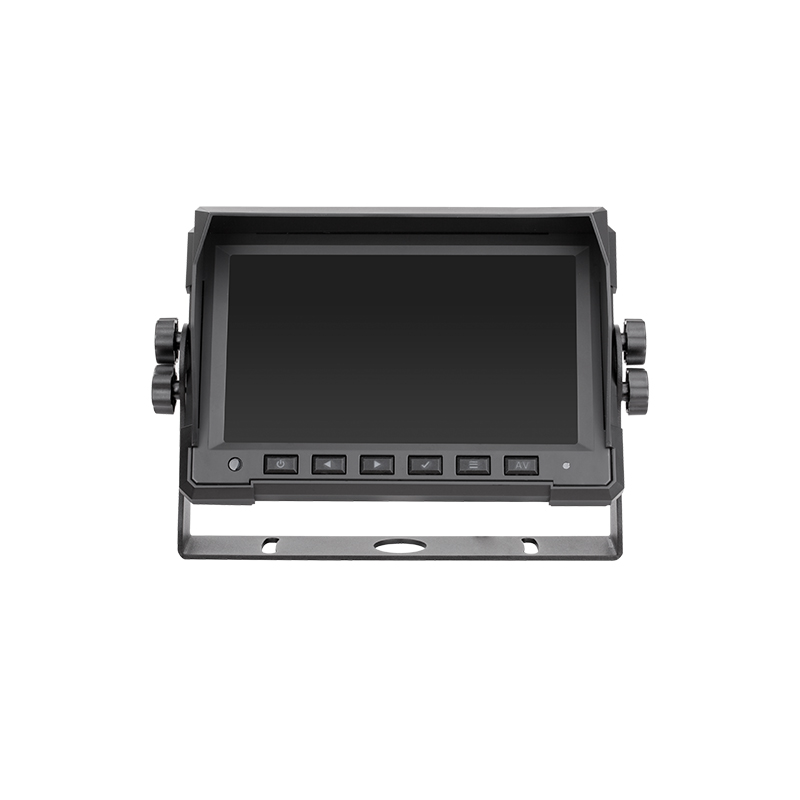

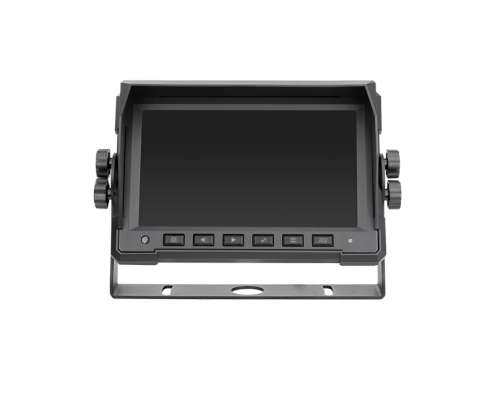

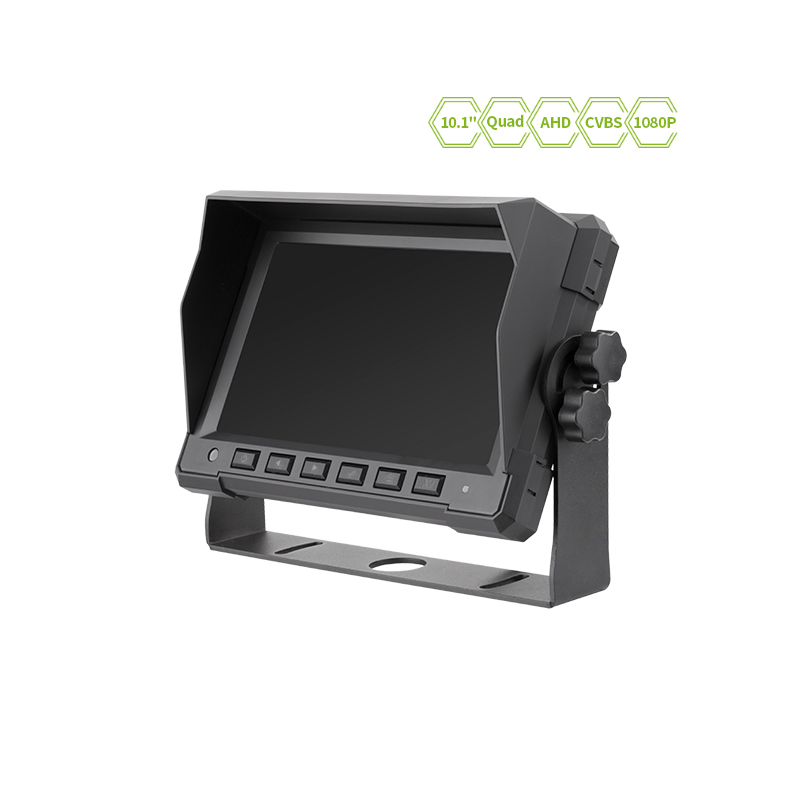

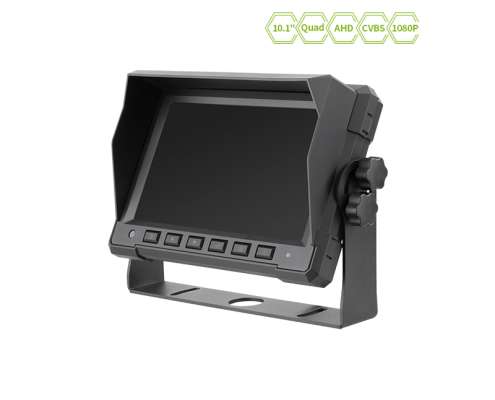

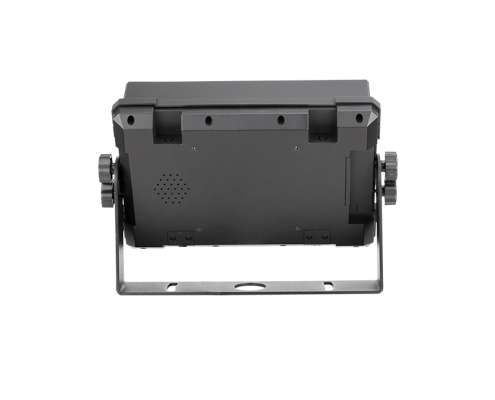

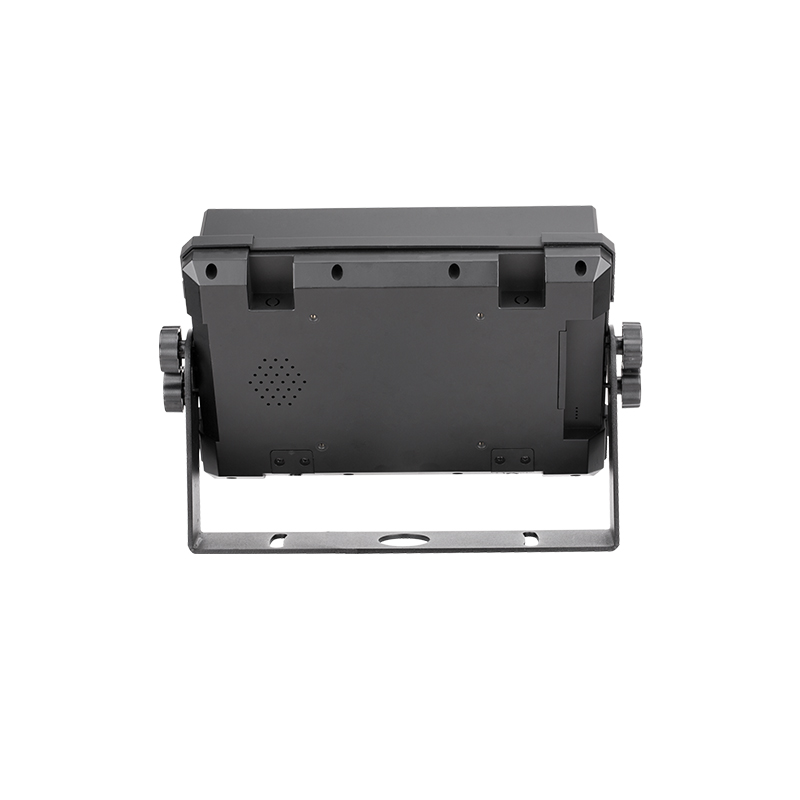

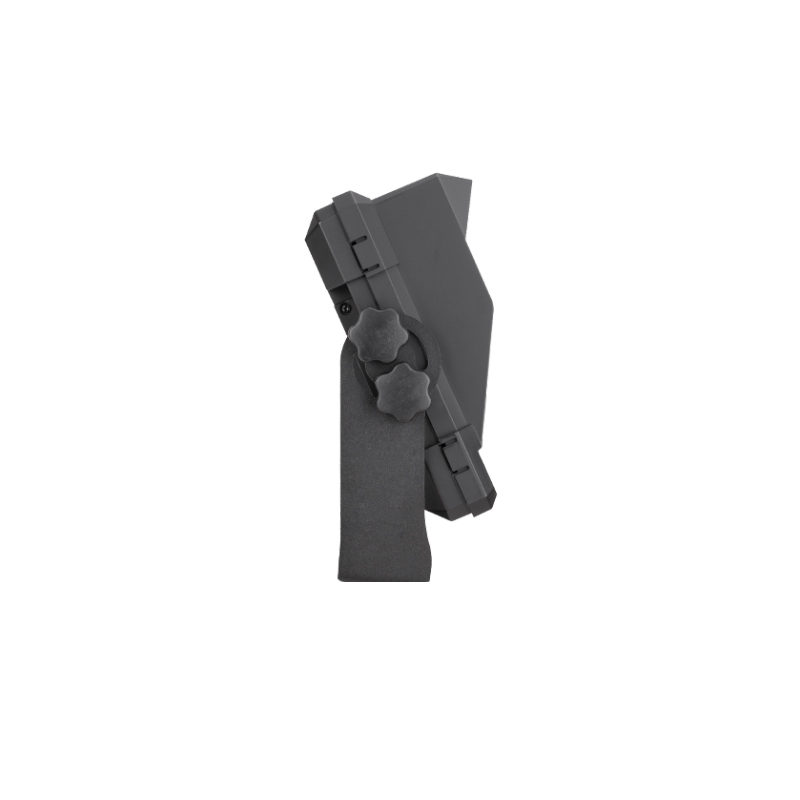

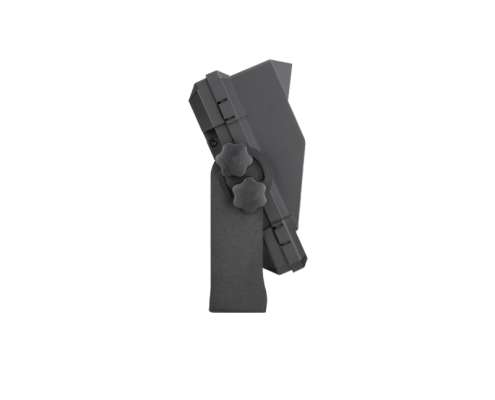

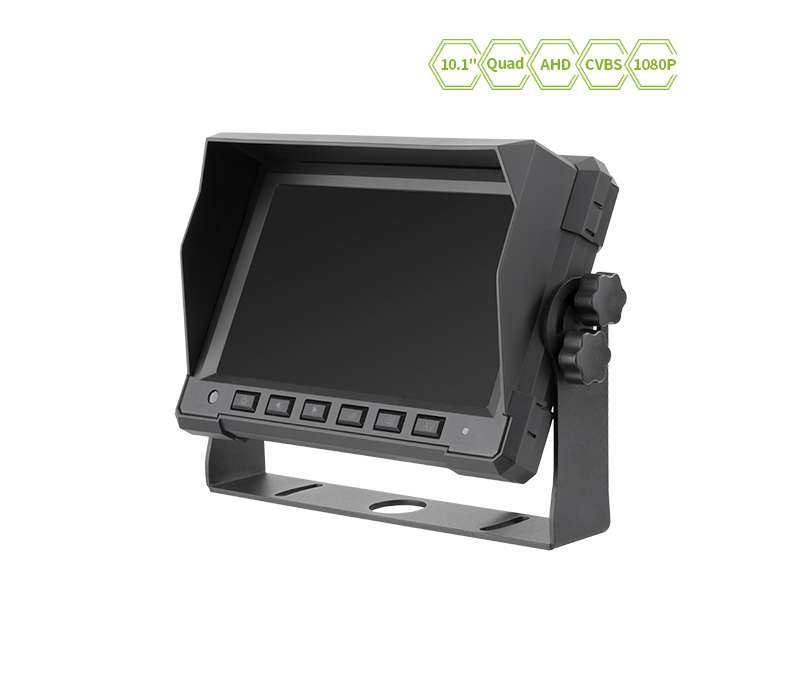

JY-M1001 10 inch high resolution lcd monitor with speaks and remote control

Product Features

JY-M1001 is a 10-inch, 4CH high-resolution liquid crystal display launched by Luview. It supports high-definition camera input and can be conveniently applied to all kinds of vehicles to carry out good monitoring of vehicles, help prevent accidents and dangerous collisions, and keep driving safety. The display comes with speakers and a remote control that allows you to adjust sound from the control panel or remote control.

  • With speakers
  • Multi-languages available
  • Have remote control function
  • Images can be flipped up and down from left to right
  • With short circuit protection function of power supply

Technical Specifications

Screen Size 10"/16:9
Resolution 1024(H)*3(RGB)*600(V)
Brightness 300cd/㎡
Contrast 400:1
Active Area 154.08(W) × 85.92(H) mm
Viewing Angle U/D:15°/35°,R/L:45°/45°
Image Settings Brightness、Color、Contrast
Video Format AHD/CVBS
Mirror Flip Non-mirror, mirror, flip, mirror flip
Video Channel Two channel video input
Reverse Function Single way back (ruler setting function)
Reversing Delayed 0-15s
Scale Function Two scale ruler and automatic ruler switch
Power Supply 12/24V,DC/<6W
Operating Temperature -20℃ to +65℃
Storage Temperature -25℃ to +70℃
