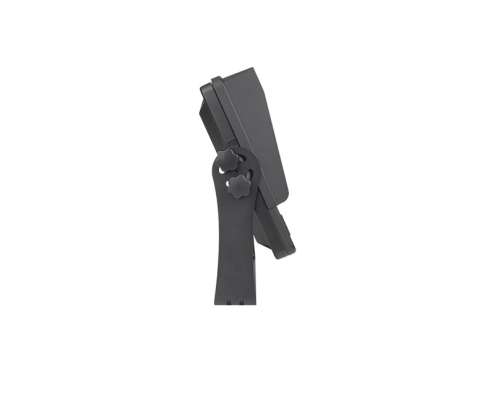

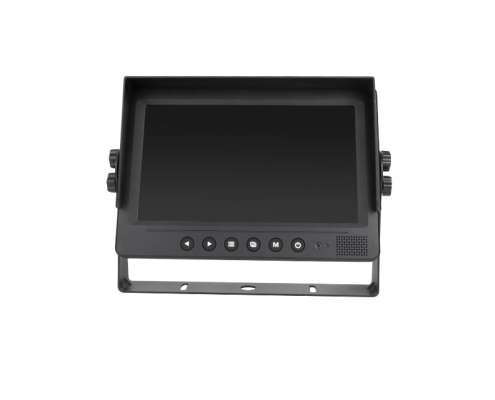

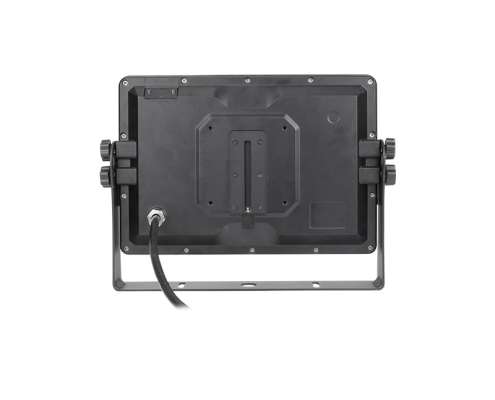

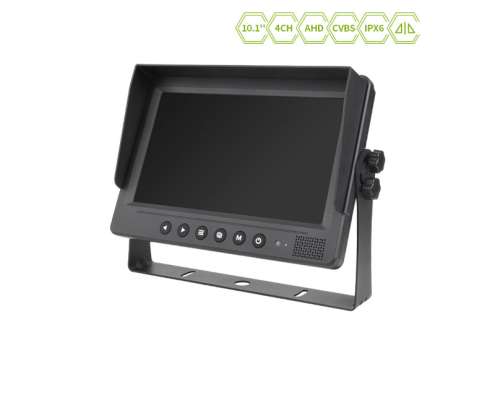

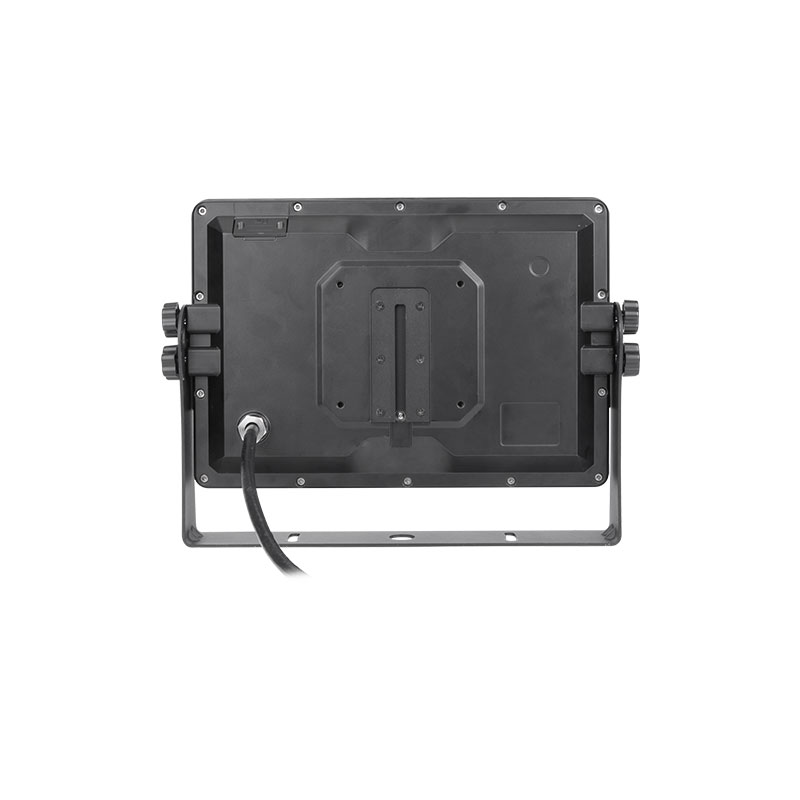

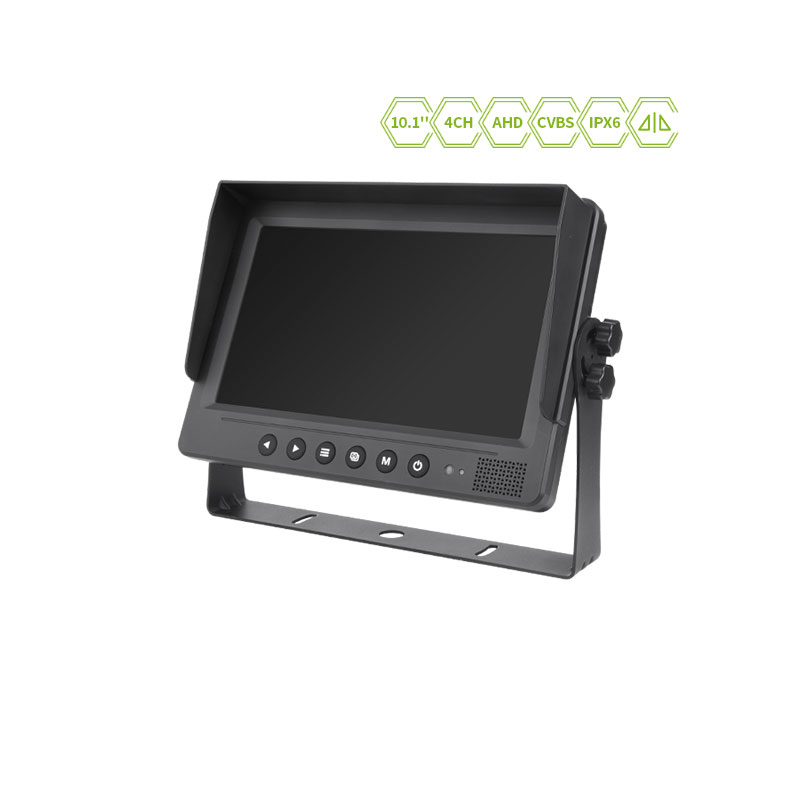

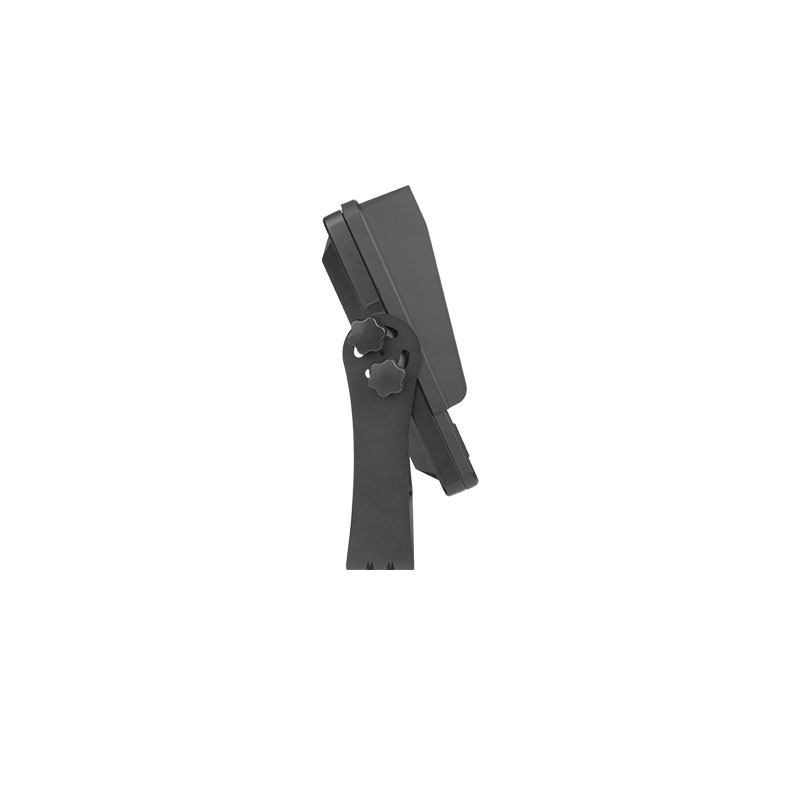

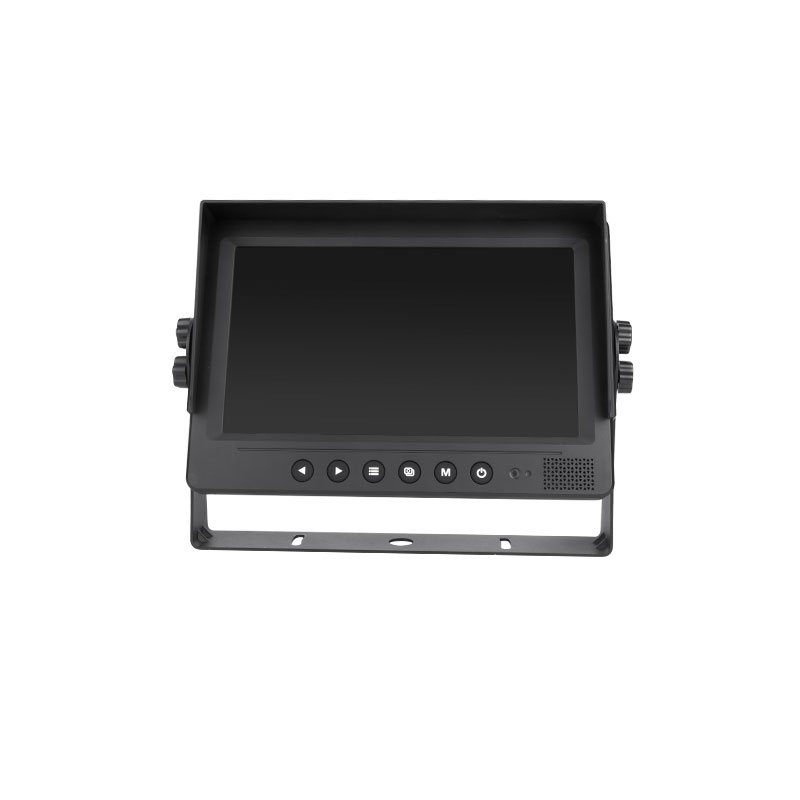

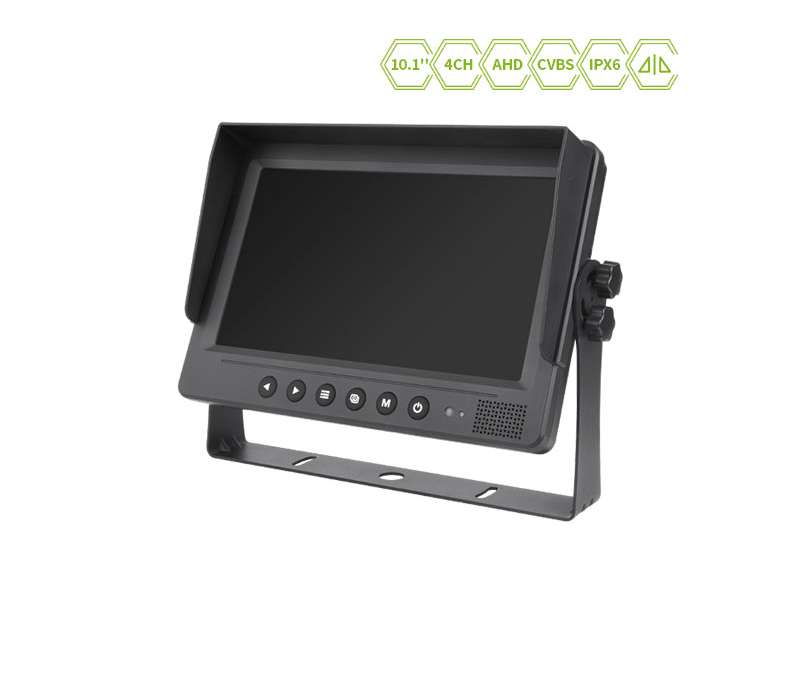

JY-M1002 10.1 inch waterproof four channel digital lcd monitor with recording function
Product Features
The Luview JY-M1002 multifunctional monitor is specially designed for heavy-duty vehicles to tackle blind spot challenges and offer comprehensive visual support. This advanced monitor features a multi-language interface for ease of use, a remote control for convenient operation, and built-in speakers for audio clarity. It seamlessly manages video and audio feeds from four cameras at once, with an image flipping function that caters to various viewing perspectives. The automatic brightness adjustment and playback capabilities significantly enhance the user experience. With its waterproof functionality and wide voltage design, the JY-M1002 ensures dependable performance in a variety of conditions, positioning it as an ideal solution for enhancing the safety of heavy-duty vehicles.
- Multiple menu languages available: English, French, German, Italian, Spanish, Dutch, Polish, Danish, Norwegian, default English
- Remote control function
- Display with built-in speaker, volume adjustable from the control panel or remote control
- Support simultaneous video input from 4 cameras
- Support simultaneous audio input from 4 cameras (optional)
- Image can be flipped up, down, left, and right
- Support four-channel single-channel line control triggering
- Automatic brightness adjustment function
- Recording and playback function
- Waterproof function
- Wide voltage design, operating power supply range 12~24V, with power short circuit protection function
Technical Specifications
| Screen Size | 10.1 inch |
| Resolution | 1024 (H) * RGB * 600 (V) |
| TV System | PAL/NTSC/AUTO |
| Brightness | 800cd/㎡ |
| Contrast | 1000:1 |
| Viewing Angle | 222.72 (H) x 125.28 (V) mm |
| Image Settings | Brightness, Chroma, Contrast |
| Image Settings | Brightness、Saturation、Color、Contrast |
| Video Format | AVI |
| Video Format | CVBS/AHD (1080P) |
| Mirror Function | Non-mirror, Mirror, Flip, Mirror Flip |
| Video Channels | Four-channel video input |
| Reversing Delayed | 0-30s |
| Line Control Channel Trigger | Supports four single-channel triggers |
| Waterproof Rating | IPX6 |
| Power Consumption | 12V, ≥7.5W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -25°C to +70°C |
