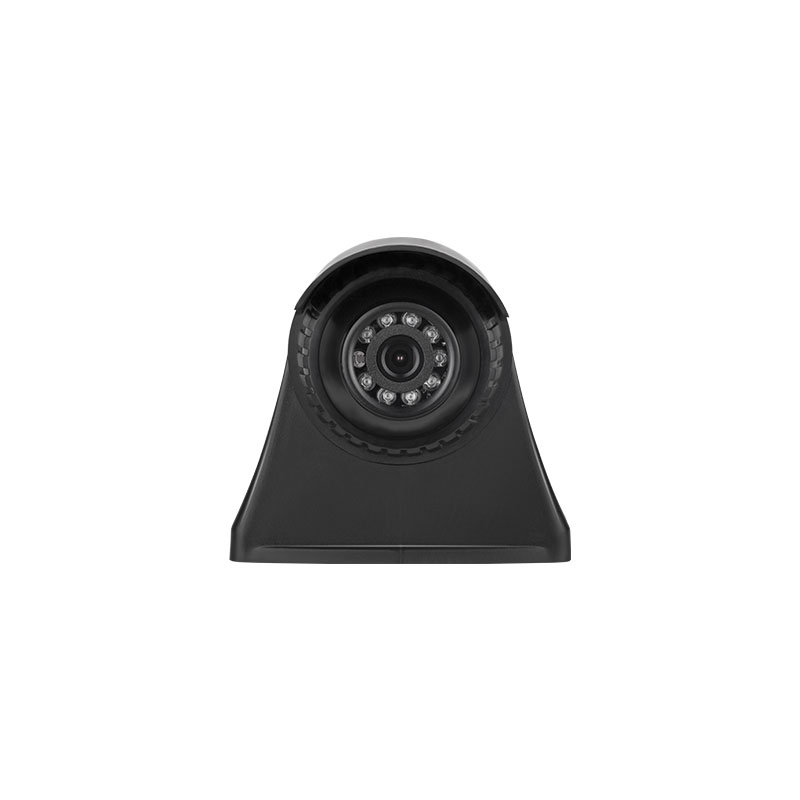

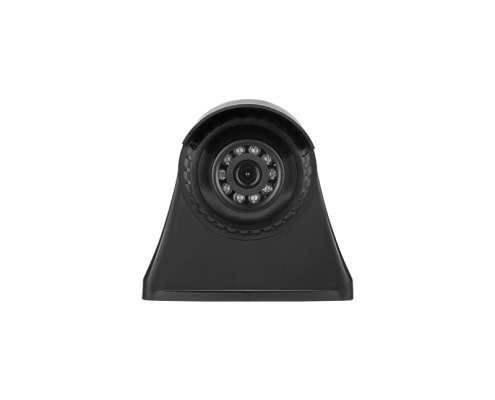

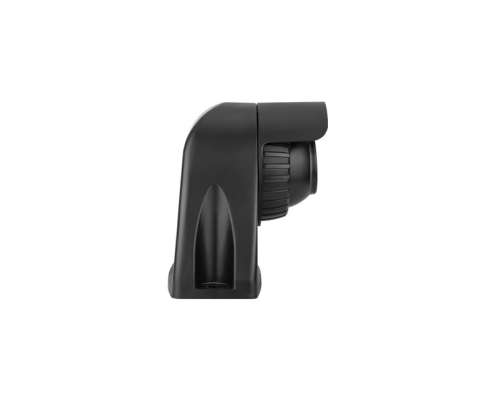

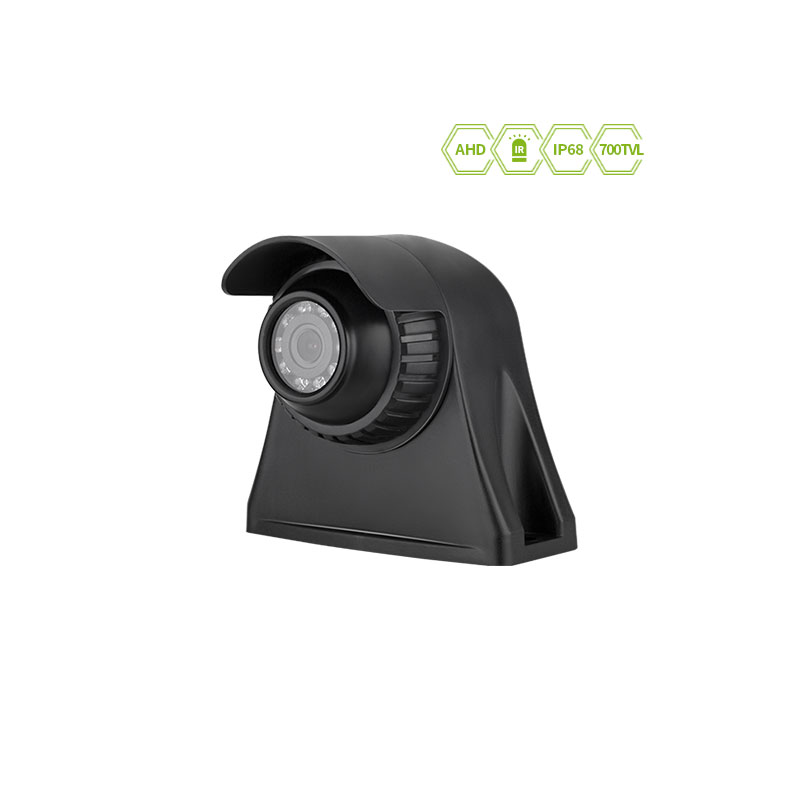

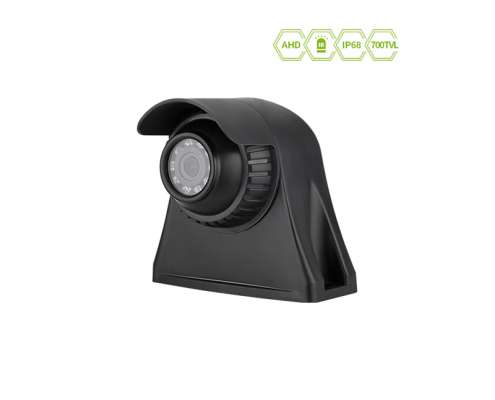

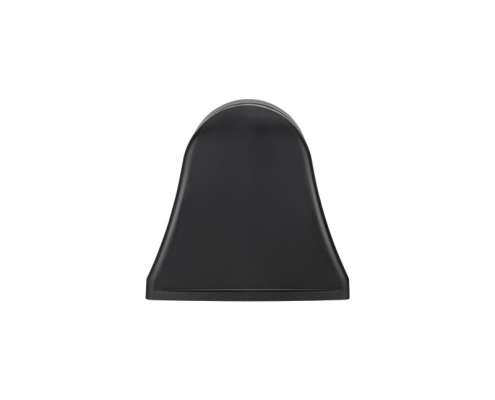

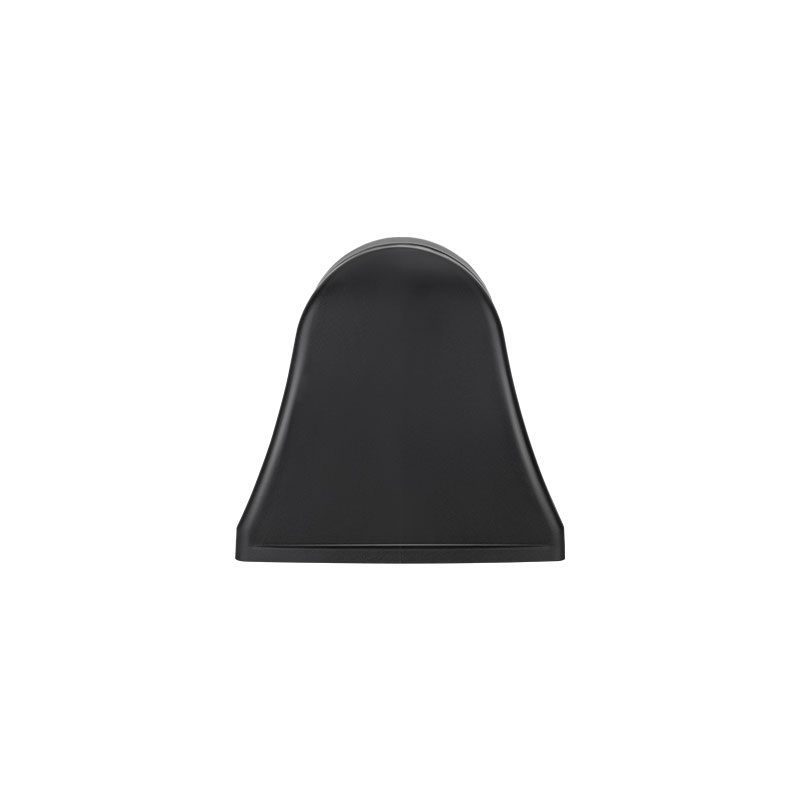

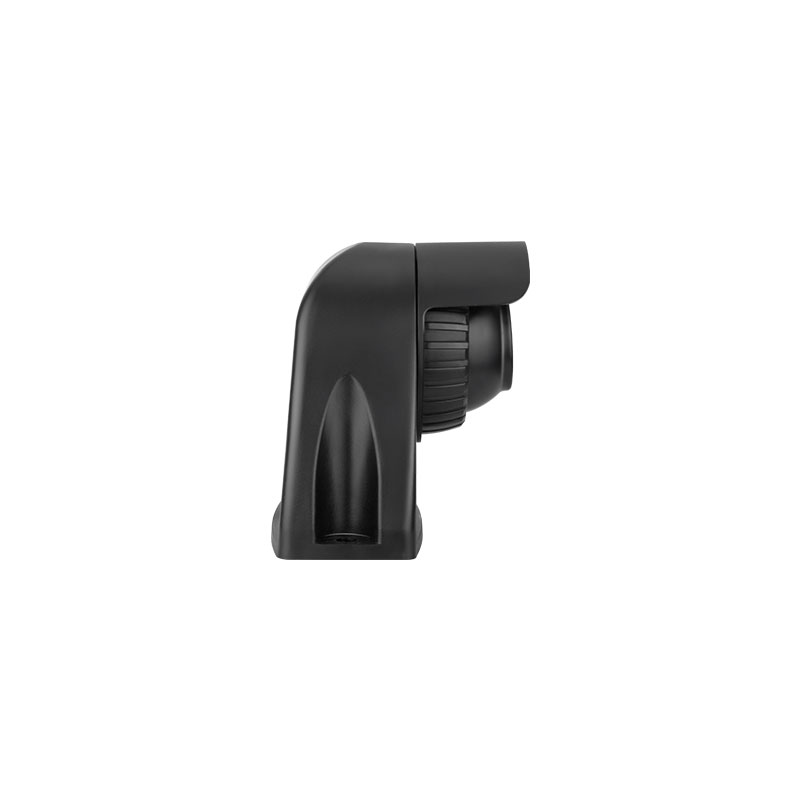

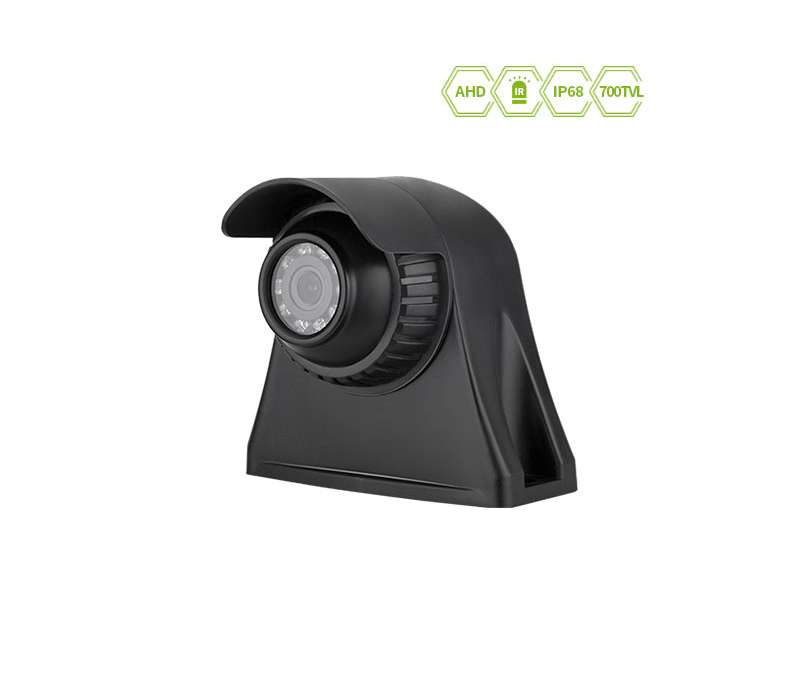

JY-671 IP68 waterproof heavy duty rear view camera with IR night vision

Product Features

This advanced IP68 waterproof night vision rear view camera addresses various driving safety challenges: whether it’s difficult reversing at night, blind spots during reverse maneuvers, adverse weather conditions, or nighttime driving safety, it provides clear visibility solutions. It supports 700TVL high-definition video and has a 10-meter infrared night vision distance, ensuring reliable operation in darkness and harsh weather. With features like mirror image switching and guideline controls, it helps drivers easily and accurately position themselves, preventing collisions and damage.

  • Use 1/3CMOS sensor, support analog hd video 700TVL
  • Waterproof grade IP68
  • Support mirror switch and scale control function
  • With night vision function, infrared distance is 10m
  • It can be mounted on both sides of the vehicle

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV System NTSC/PAL
Effective Pixels 968(H)*488(V)
Sensing Area 4.880mm*3.670mm
Sync. System Internal
Resolution 700 TVL
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone NO
IR LED Qty 9PCS
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Power Supply DC12V
Lens 2.8mm
Lens Angle 115°
Current Drain 65±5mA
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
