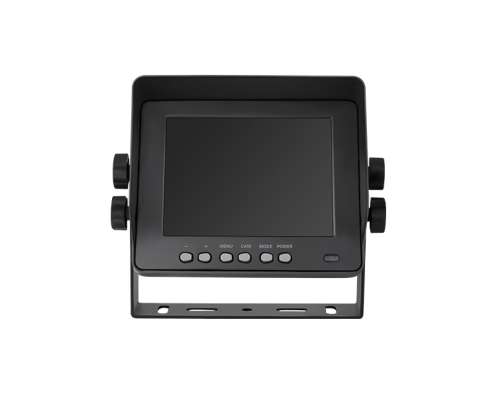

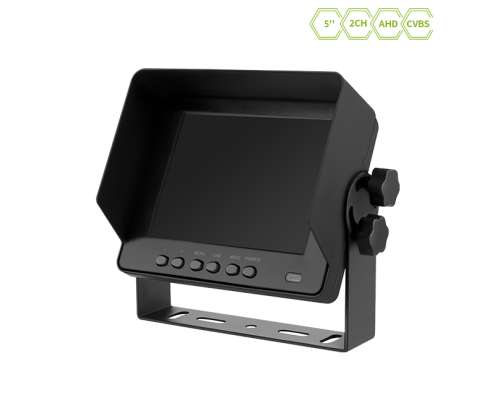

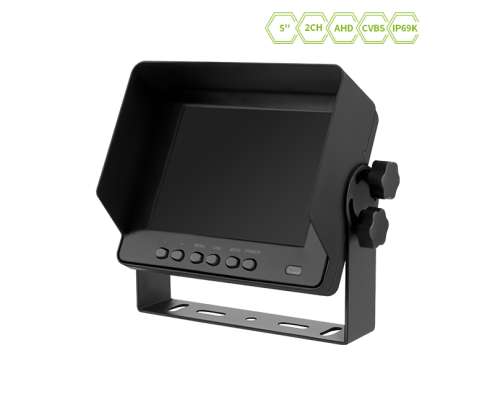

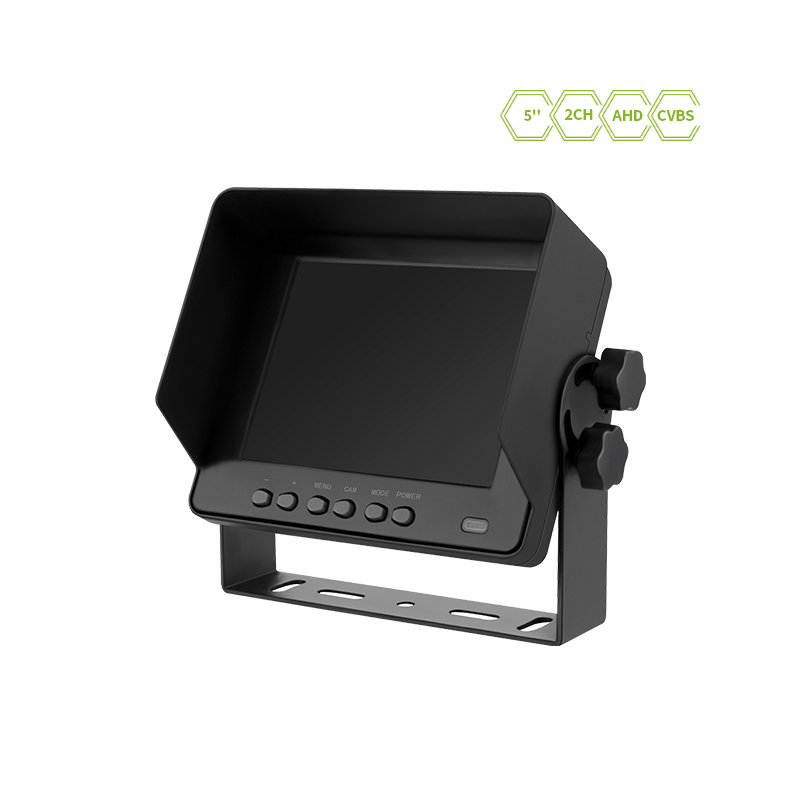

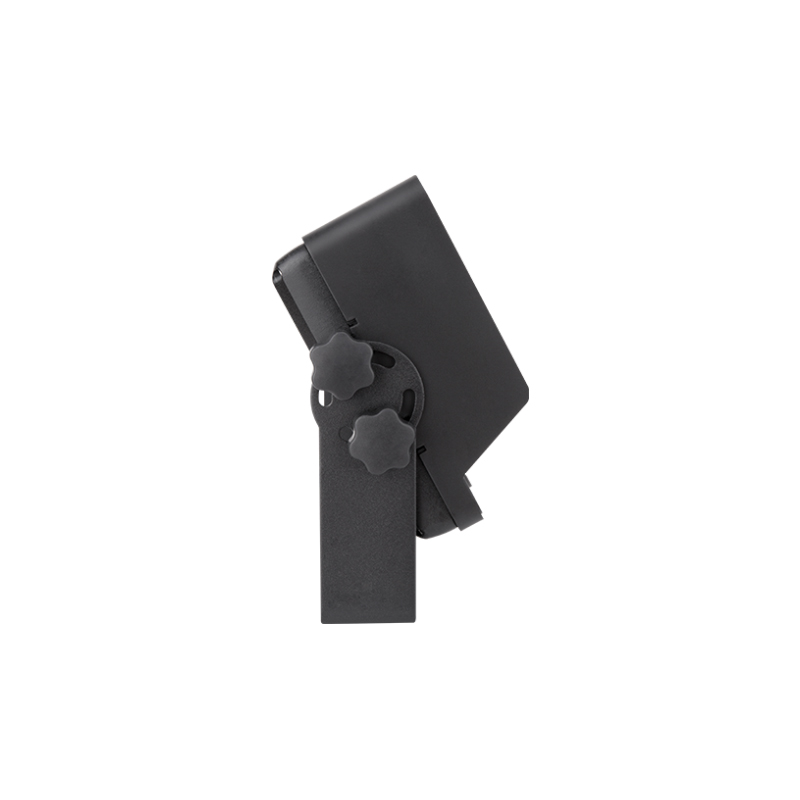

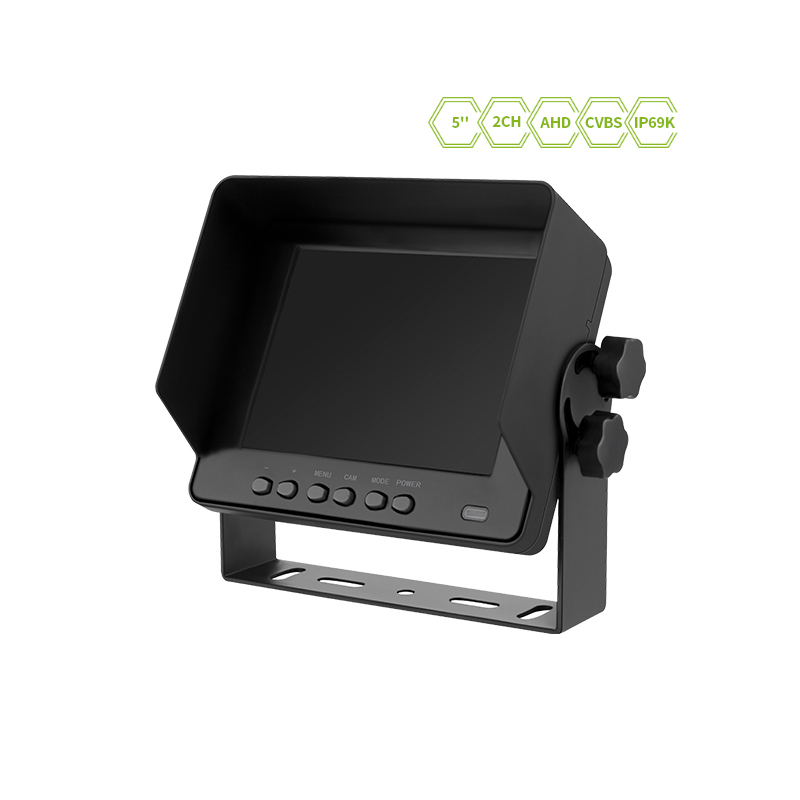

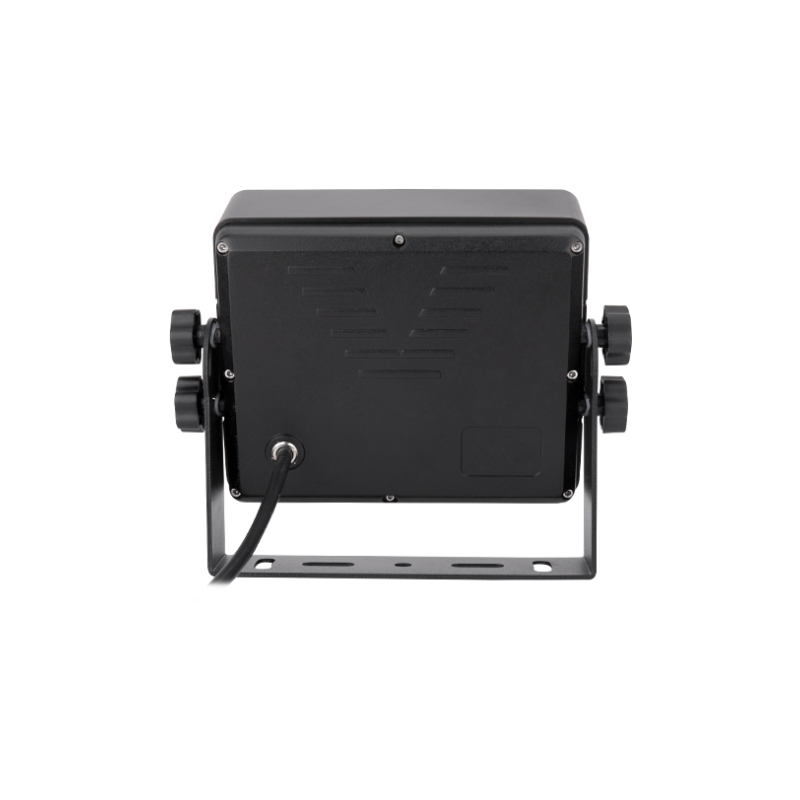

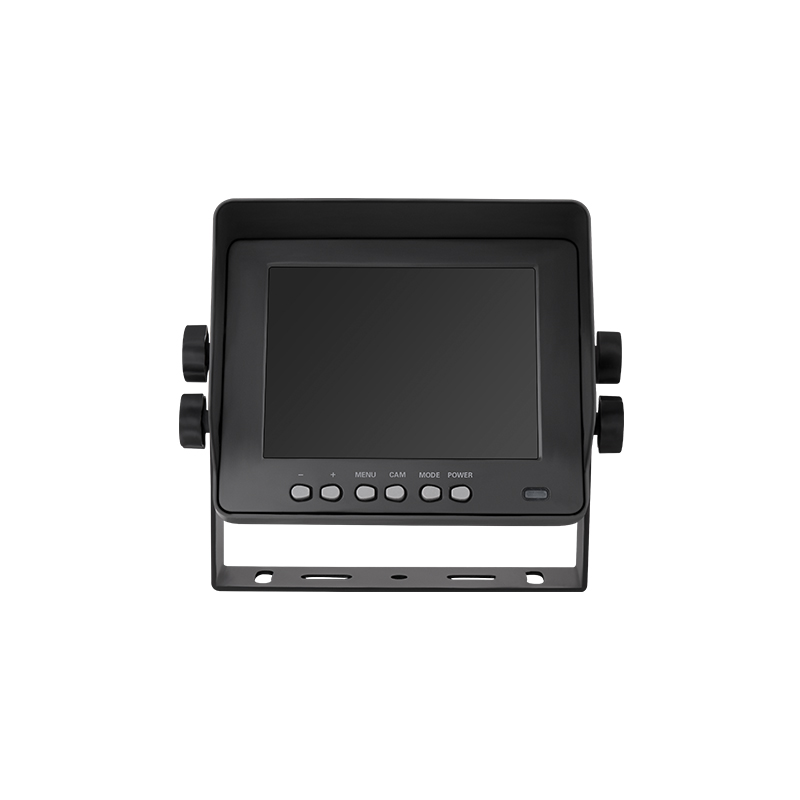

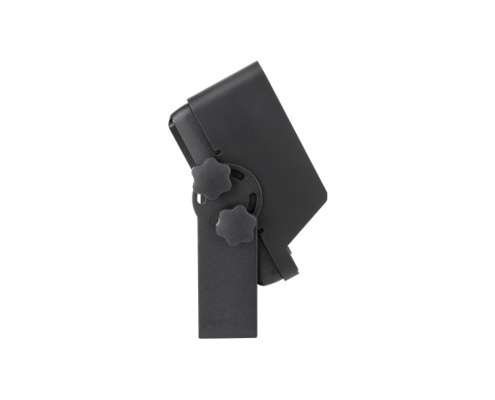

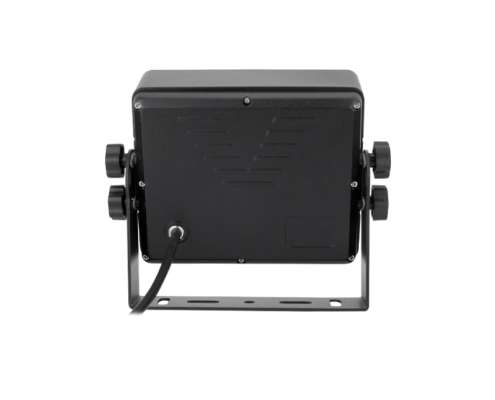

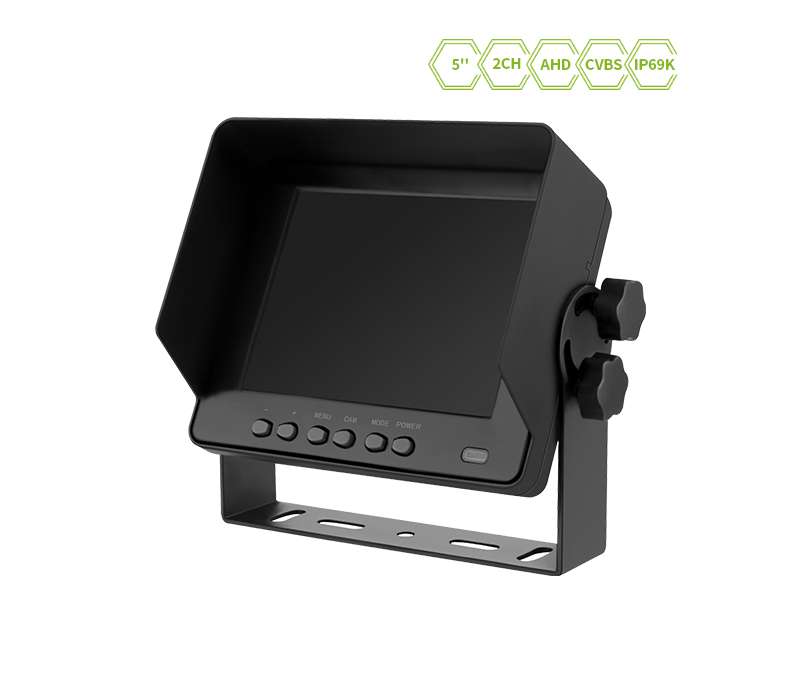

JY-M550 2 CH 5 inch IP69K waterproof flipped image TFT monitor
Product Features
The Luview JY-M550 is a robust 5 inch digital LCD monitor, providing crystal clear visuals to drivers of all kinds of vehicles. This display and high-definition camera form an invincible on-board monitoring system for trucks, buses, forklifts, harvesters and engineering machines – ensuring safety in any environment. Each of the JY-M550 5 inch 2 CH flipped image TFT monitor has been tried & tested against water ingress (IP69K waterproof), shocks & bumps as well as extreme temperatures; making it reliable even under the toughest conditions!
- Have remote control function
- Supports video input from two cameras at the same time
- Images can be flipped up and down from left to right
- With short circuit protection function of power supply
Technical Specifications
| Screen Size | 5"/4:3 |
| Resolution | 640*480 |
| TV System | PAL/NTSC/AUTO |
| Brightness | 400cd/㎡ |
| Contrast | 500:1 |
| Active Area | 117.65(W) × 76.17(H) mm |
| Viewing Angle | U/D:50°/70°,R/L:70°/70° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | CVBS |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Two channel video input |
| Reverse Function | Single way back |
| Scale Function | 2-way ruler, automatic switching of ruler |
| Power Supply | 12/24V，DC/<9W |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -25℃ to +70℃ |
