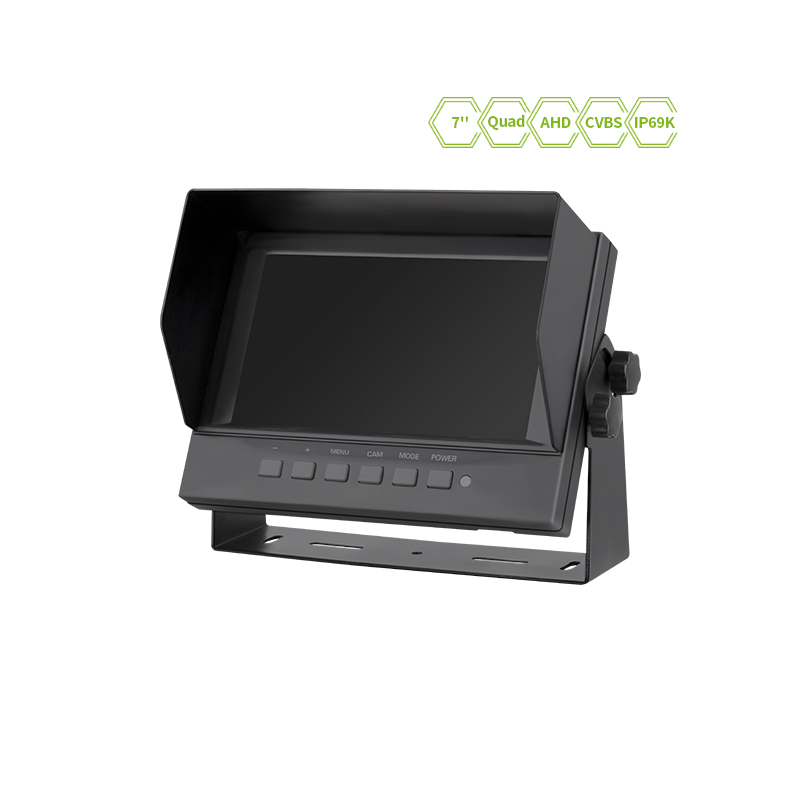

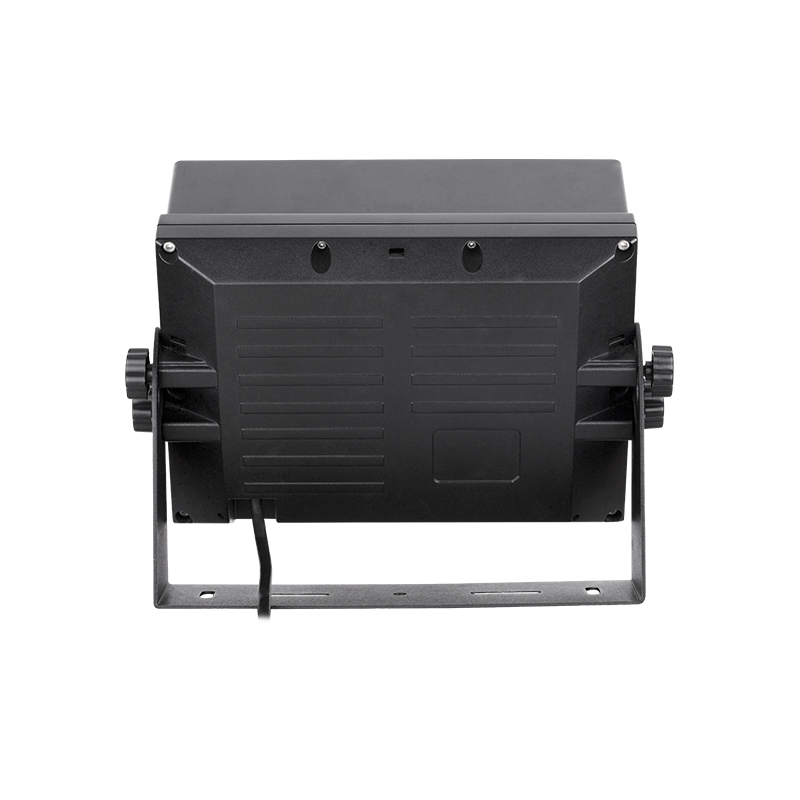

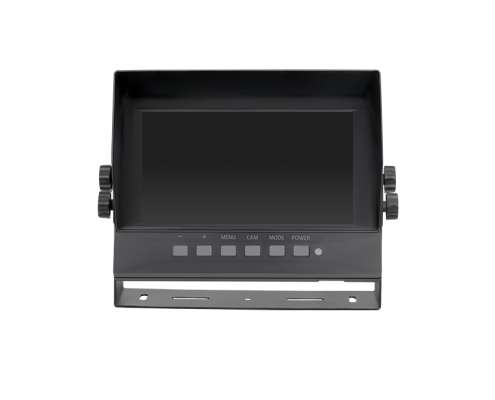

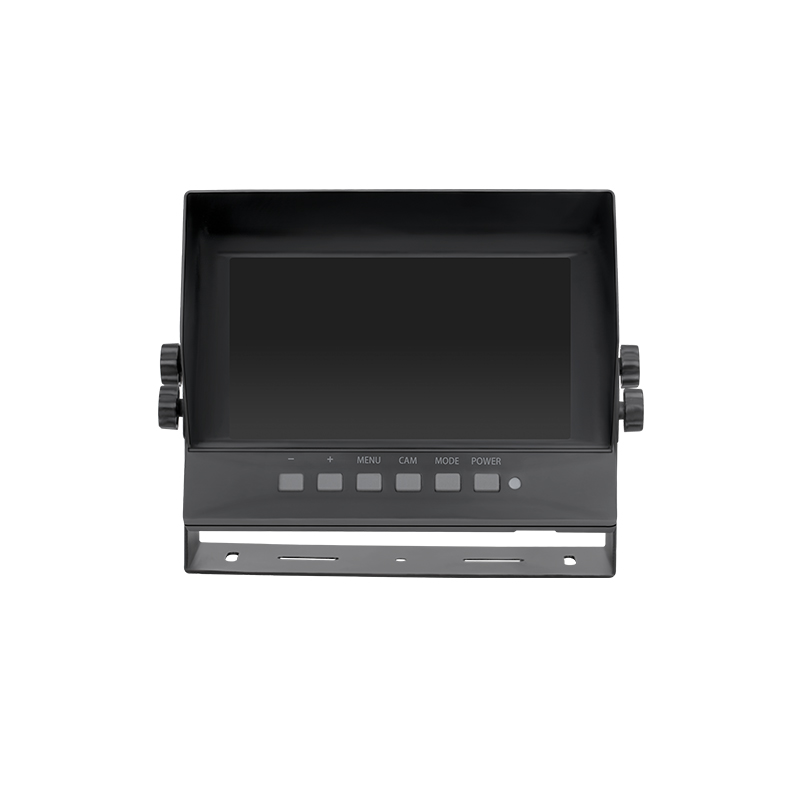

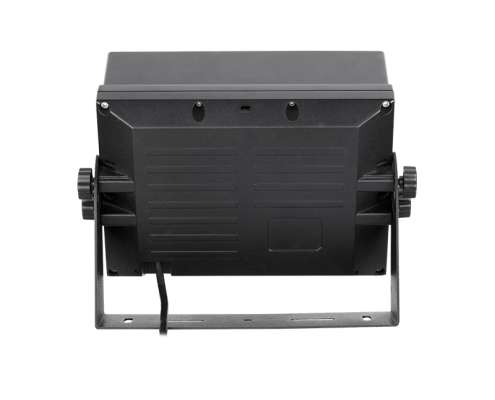

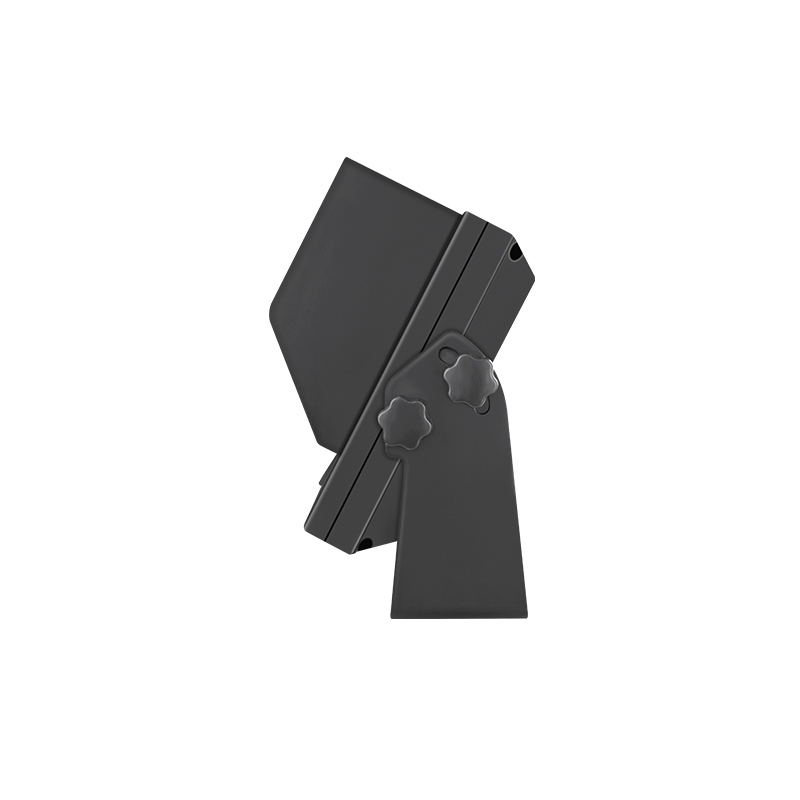

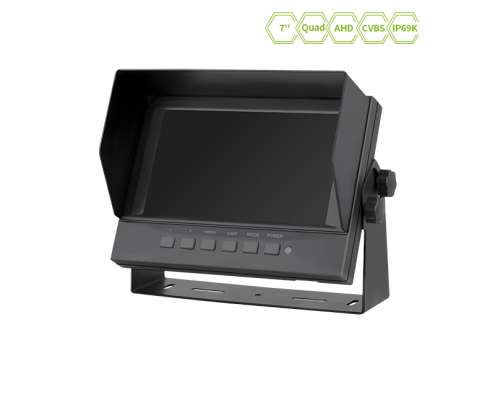

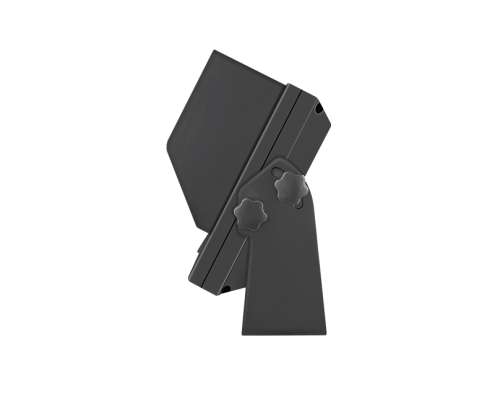

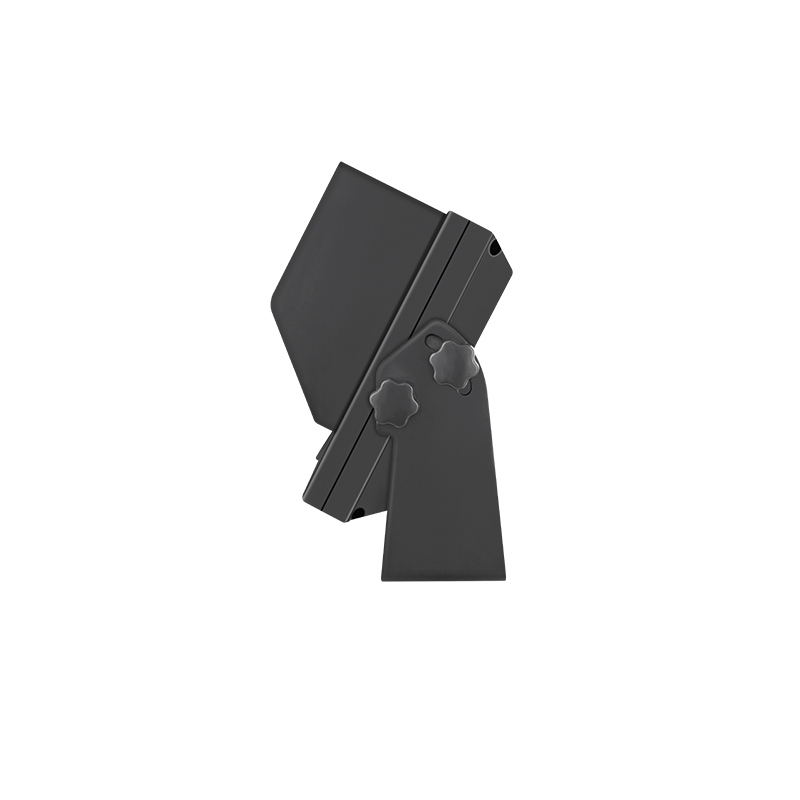

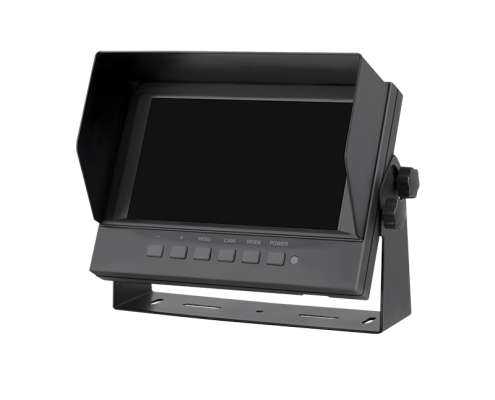

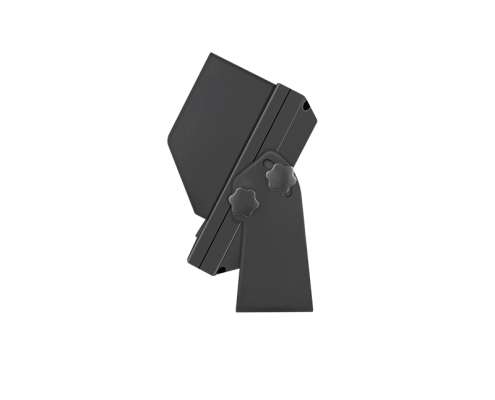

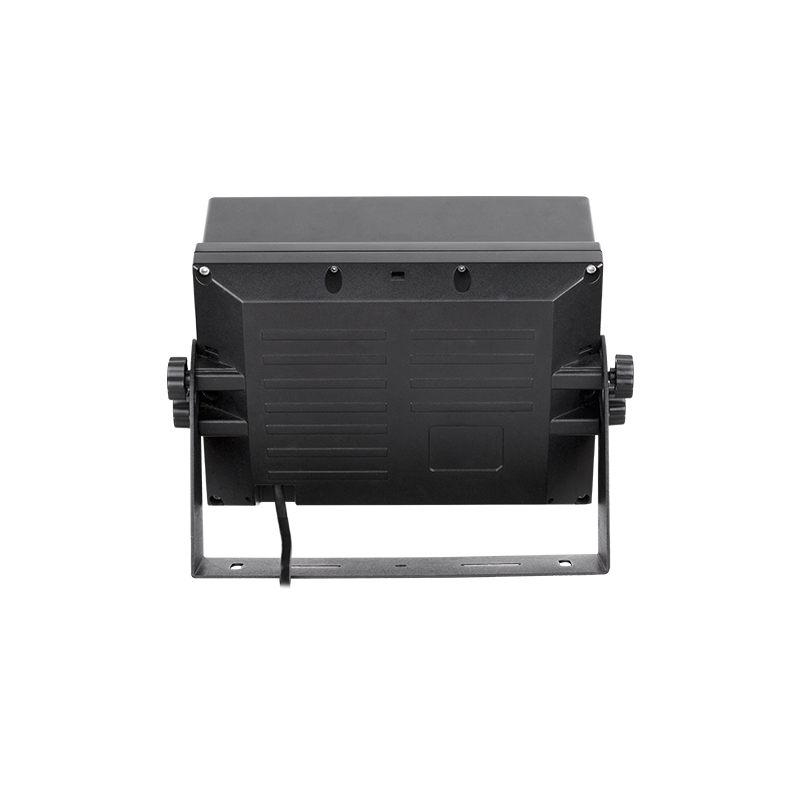

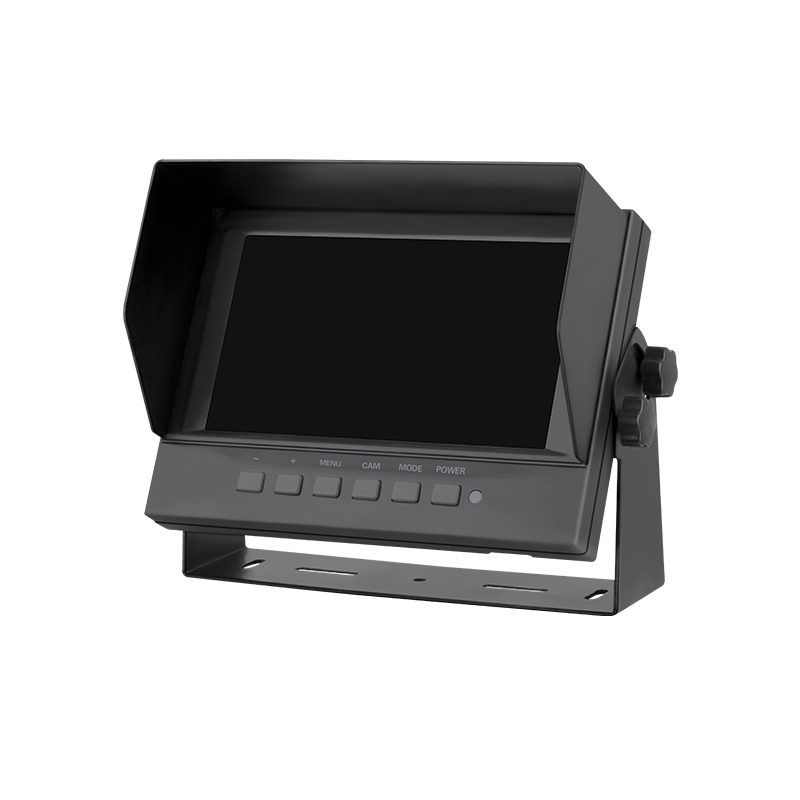

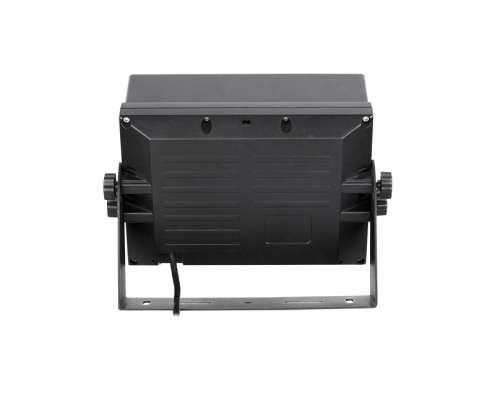

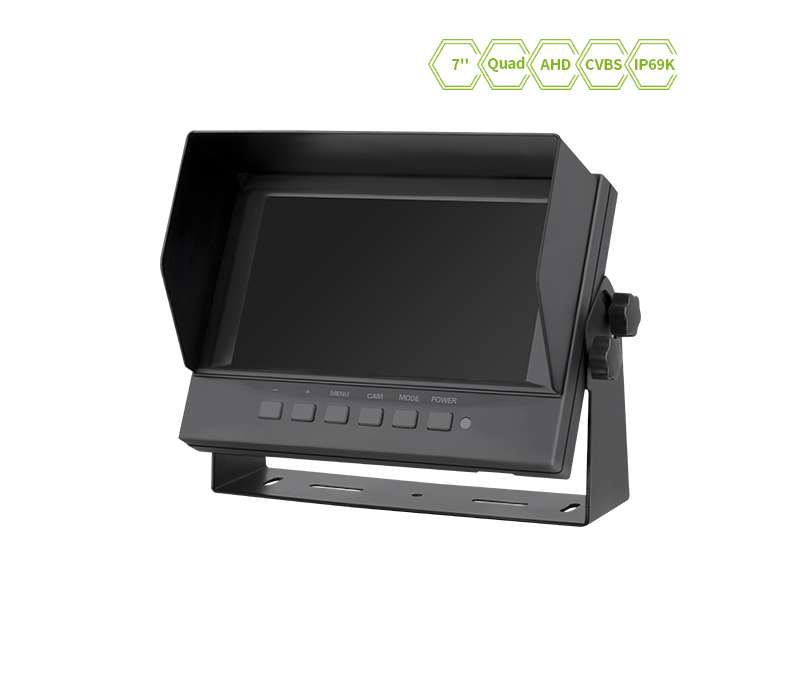

JY-M750 16:9 wide screen 4 CH 7 inch IP69K waterproof monitor
Product Features
LUVIEW JY-M750 is a waterproof monitor with IP69K rate, with CVBS and AHD signal options available. LUVIEW has more than 10 years of production experience in vehicle visual safety assistance system products, with advanced production equipment and testing equipment, such as waterproof testing, vibration test, low and high temperature test, salt spray test and other production testing equipment. If you have any related requirements, please feel free to contact us.
- IP69K
- With speakers
- With remote control function
- Multi-languages of display available
- Supports video input from 4 cameras at the same time
- Support audio input from 4 camera at a time (optional)
- 12/24V，DC/<6W
Technical Specifications
| Screen Size | 7"/16：9 |
| Resolution | 800（W）* R.G.B * 480(H) |
| TV System | PAL/NTSC/AUTO |
| Brightness | 300cd/㎡ |
| Contrast | 400:1 |
| Active Area | 154.08(W) × 85.92(H) mm |
| Viewing Angle | U/D:40°/70°,R/L:70°/70° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | CVBS |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Four channel video input, one channel audio |
| Reverse Function | Four way back (ruler setting function) |
| Reversing Delayed | 0-20s |
| Scale Function | Four scale ruler and automatic ruler switch |
| Power Supply | 9/36V,DC/<5W |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -25℃ to +70℃ |
