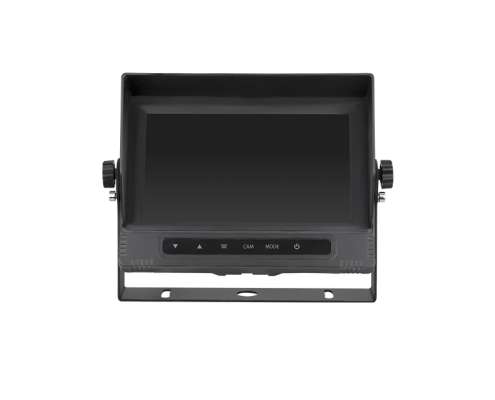

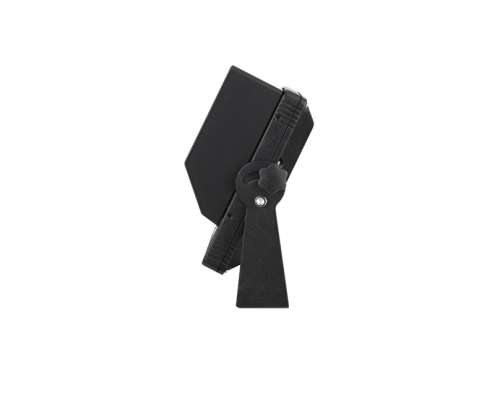

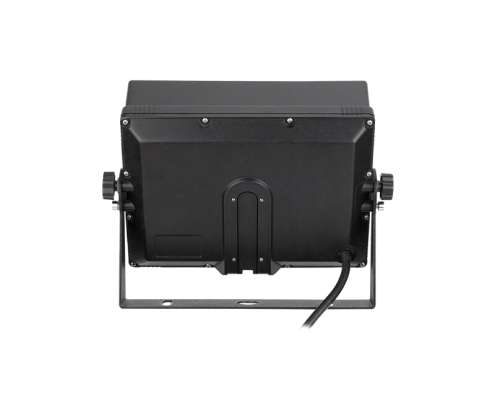

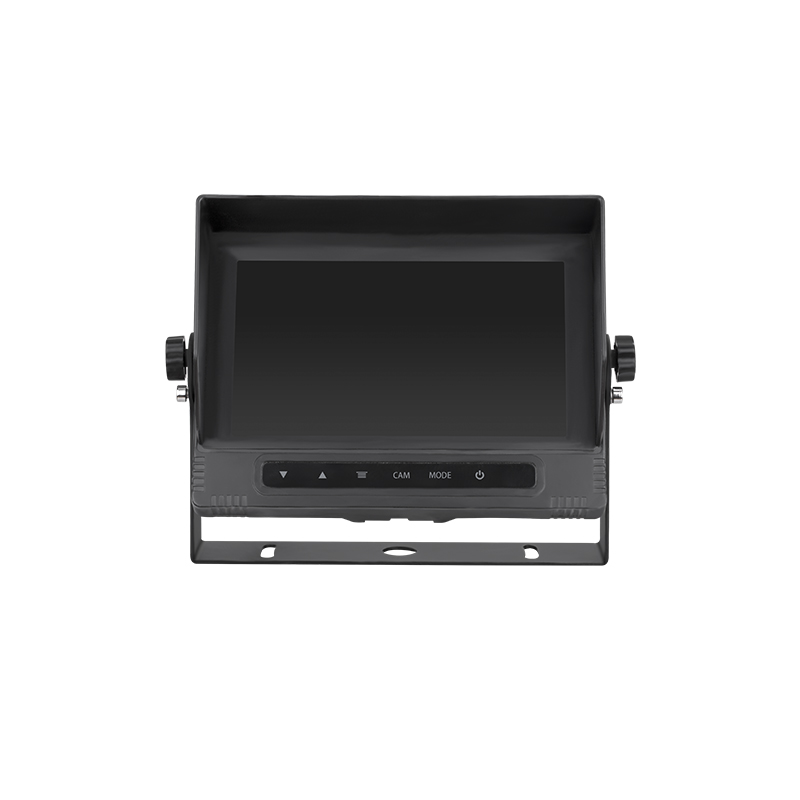

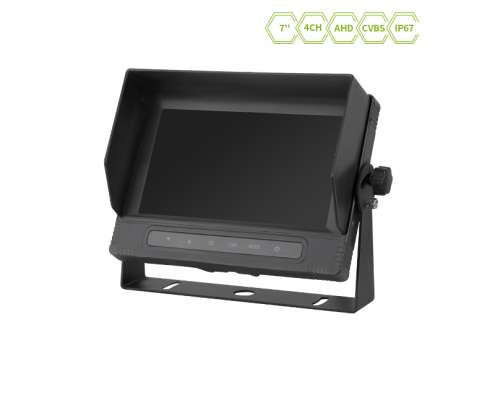

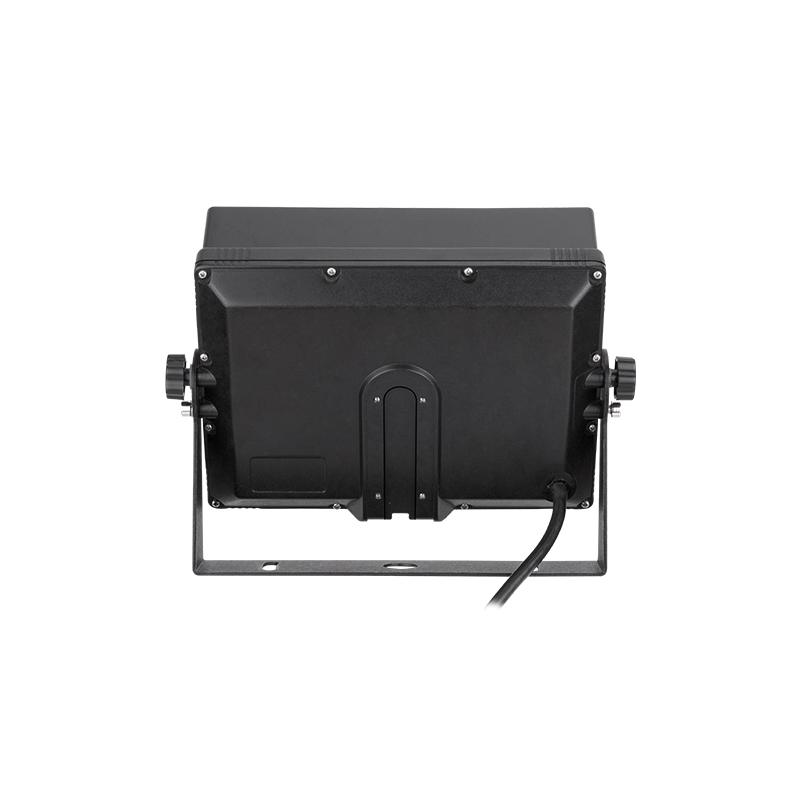

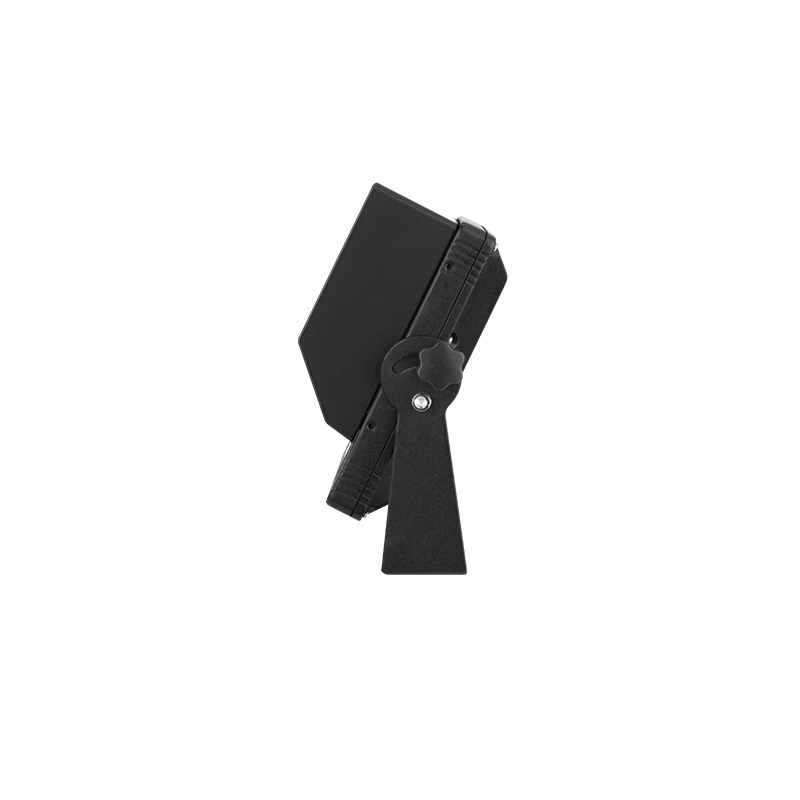

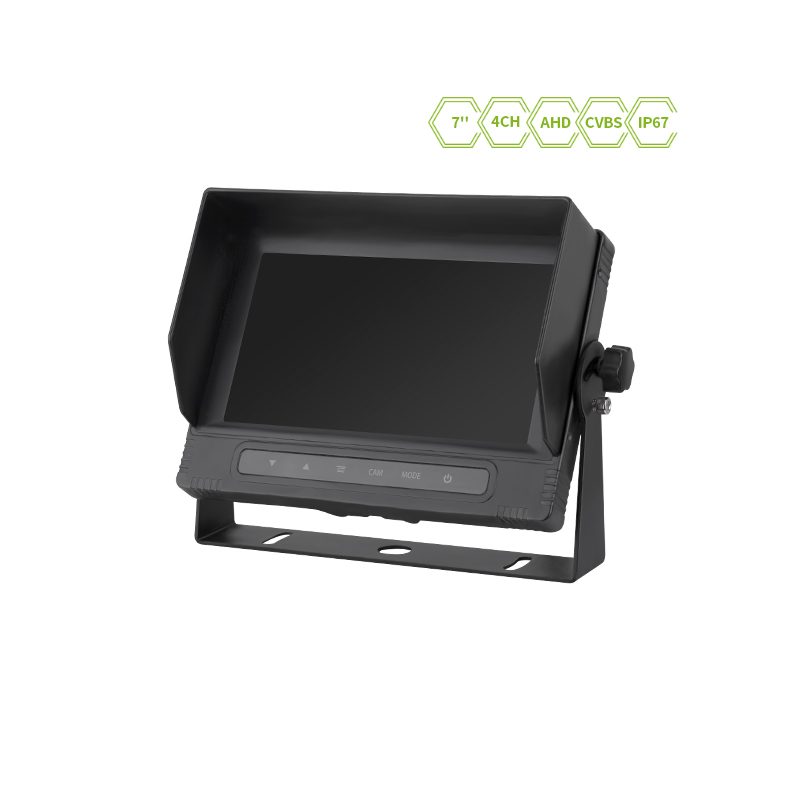

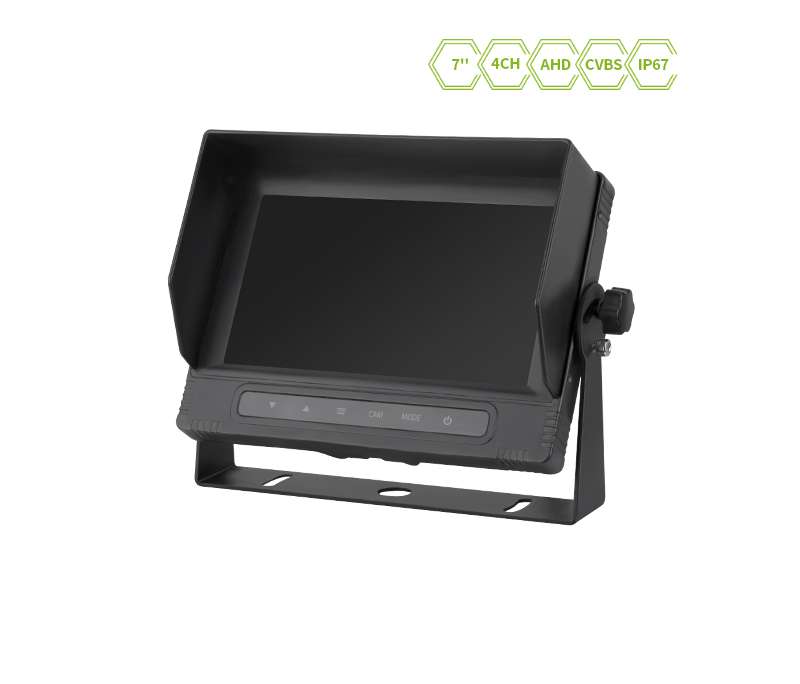

JY-M755 4 CH 7 inch IP67 waterproof digital AHD LCD monitor

Product Features

The Luview JY-M755 is a 7 inch digital AHD LCD monitor that offers an impressively bright display. With four screen, single screen and other automatic switching modes plus two camera video inputs for simultaneous viewing, this monitor has gone through rigorous testing to ensure reliable quality in even the harshest of conditions with its IP67 waterproof rating and metal waterproof bracket.

  • 12/24V,DC/ < 9W
  • Waterproof IP67
  • With remote control function
  • ulti-languages of display available
  • Supports video input from 2 cameras at the same time
  • Images can be flipped up and down from left to right

Technical Specifications

Screen Size 7"/16:9
Resolution 800(W)* R.G.B * 480(H)
TV System PAL/NTSC/AUTO
Brightness 300cd/㎡
Contrast 500:1
Active Area 154.08(W) × 85.92(H) mm
Viewing Angle U/D:50°/70°,R/L:70°/70°
Image Settings Brightness、Color、Contrast
Video Format CVBS
Mirror Flip Non-mirror, mirror, flip, mirror flip
Video Channel Two channel video input
Reverse Function Single way back (ruler setting function)
Reversing Delayed 0-15s
Scale Function Two scale ruler and automatic ruler switch
Power Supply 12/24V,DC/<9W
Operating Temperature -20℃ to +65℃
Storage Temperature -25℃ to +70℃
