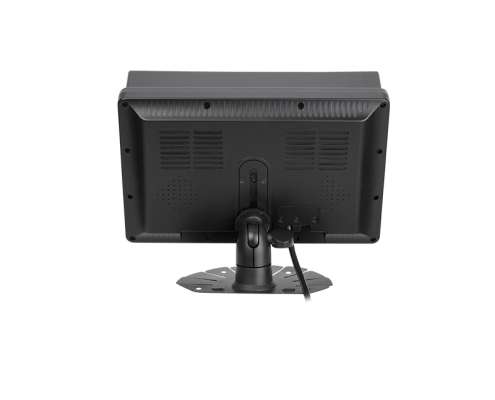

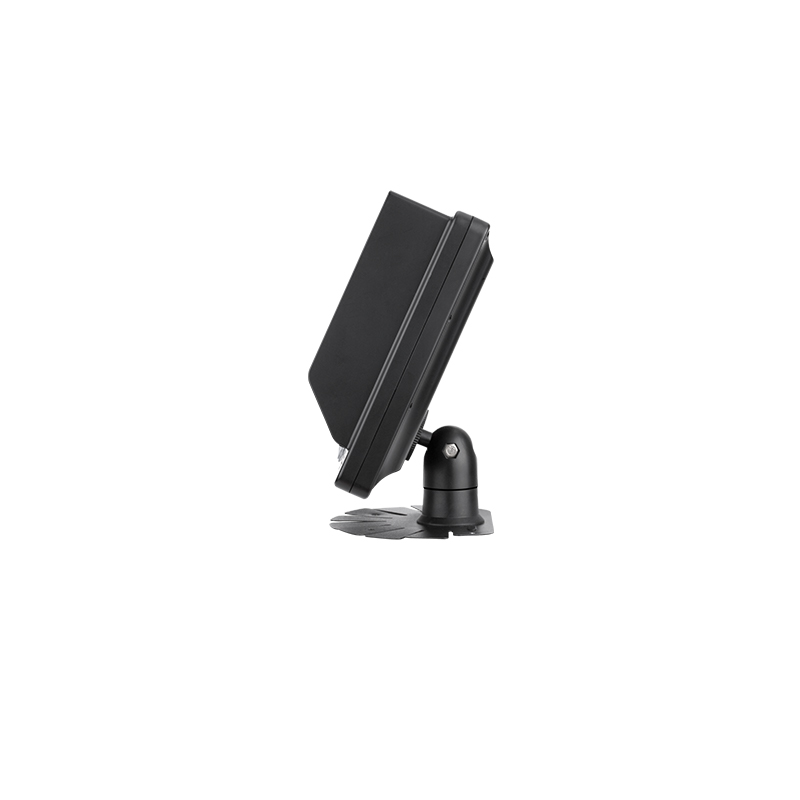

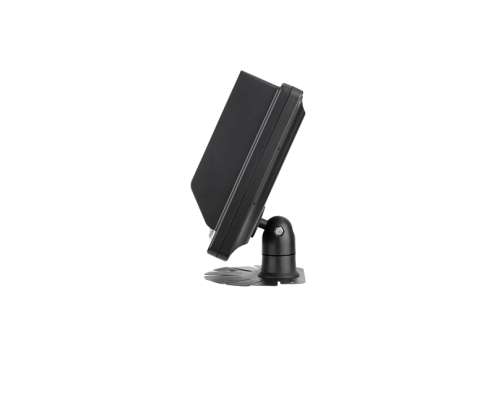

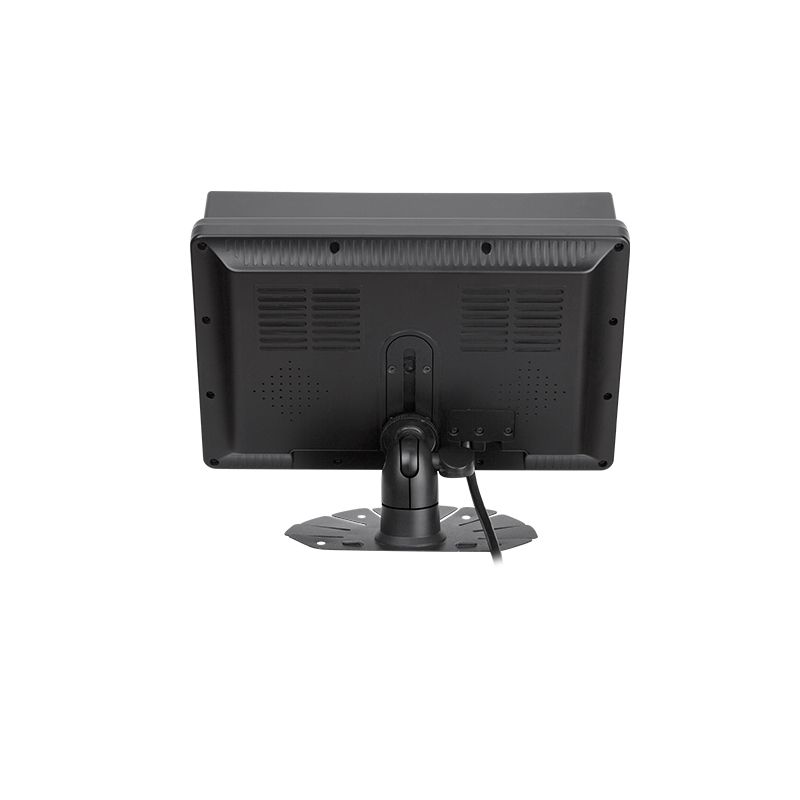

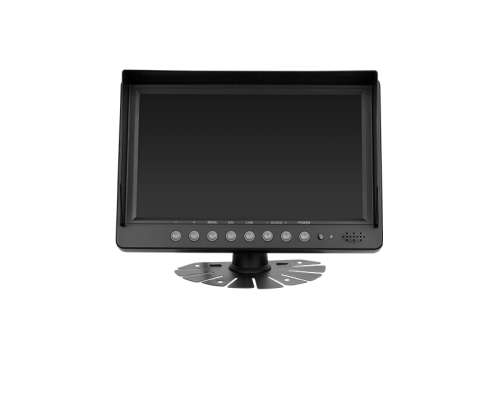

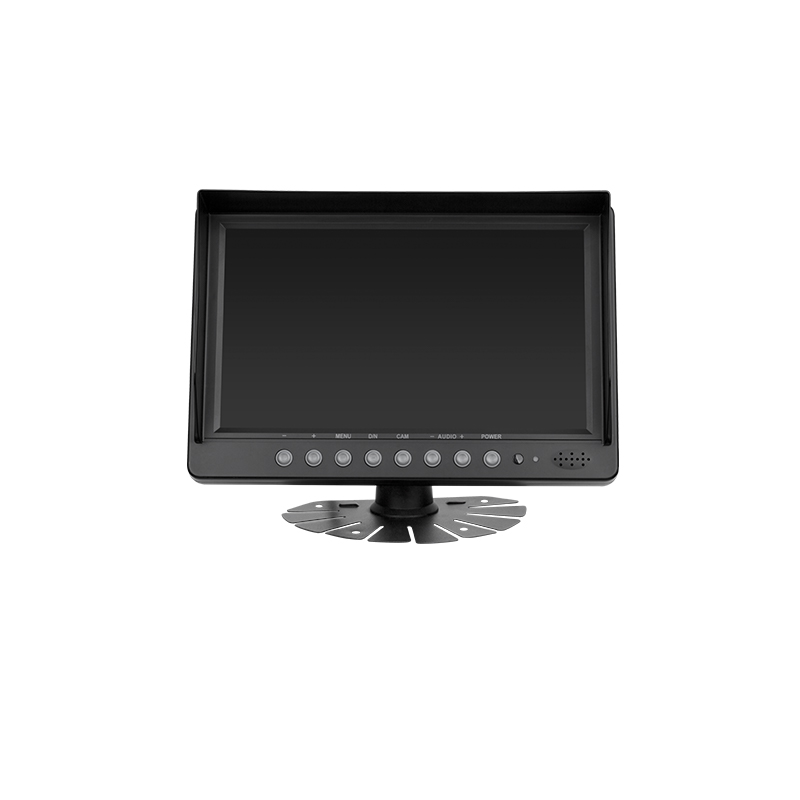

JY-M900 9 inch CVBS AHD TFT 2 CH or 4 CH video input quad view / split screen capable monitors
Product Features
The Luview JY-M900 digital TFT monitor is the perfect driving companion; its 9-inch high definition screen allows drivers to keep their focus on the road. With four camera video inputs and three types of split screens, including quad view and split screen capabilities, this display offers plenty of versatility. Additionally, image flipping up/down and mirroring left/right functions add convenience to its features. Its dust resistance, seismic functions, and durable build quality make it ideal even in extreme temperatures from -10℃ up to +60℃.
- Working power supply range 12~32V
- Supports simultaneous video input from four cameras
- Image can be flipped up and down, left and right mirrors
Technical Specifications
| Screen Size | 9"/16：9 |
| Resolution | 1024（W）* R.G.B * 600(H) |
| TV System | PAL/NTSC |
| Brightness | 300cd/㎡ |
| Contrast | 500:1 |
| Active Area | 196.608(H) × 114.15(V)mm |
| Viewing Angle | U/D:85°/85°,R/L:85°/85° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | CVBS, AHD |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Four channel video input |
| Reverse Function | Four way back (ruler setting function) |
| Reversing Delayed | 0-30s |
| Scale Function | 4-way ruler, automatic switching of ruler |
| Power Supply | 12/24V，DC≤6.5W |
| Operating Temperature | -10℃ to +60℃ |
| Storage Temperature | -25℃ to +70℃ |
