JY-RX03 TX03 wireless transmission kit for backup camera system
2.4G is a wireless transmission technology,because the frequency range is between 2.400GHz-2.4835GHz,so is called 2.4G wireless technology for short（Image left for transmitter, right for receiver ), Luview JY-RX03 JY-TX03 2.4g wireless transmission kit for backup camera system with transmitter and receiver, features of easy installation and maintenance, suitable for long vehicles. If you are looking for manufacturing factories and developers of high-quality car cameras and monitors in China, Luview is the right choice for you!
Product Features
1.Wireless transmitter part（External connection power and camera）
Transmitter work indicator light：red（In the state of transmitting signal）
WIFI indicator light：blue（Keep bright）
The central button：Cancel matching

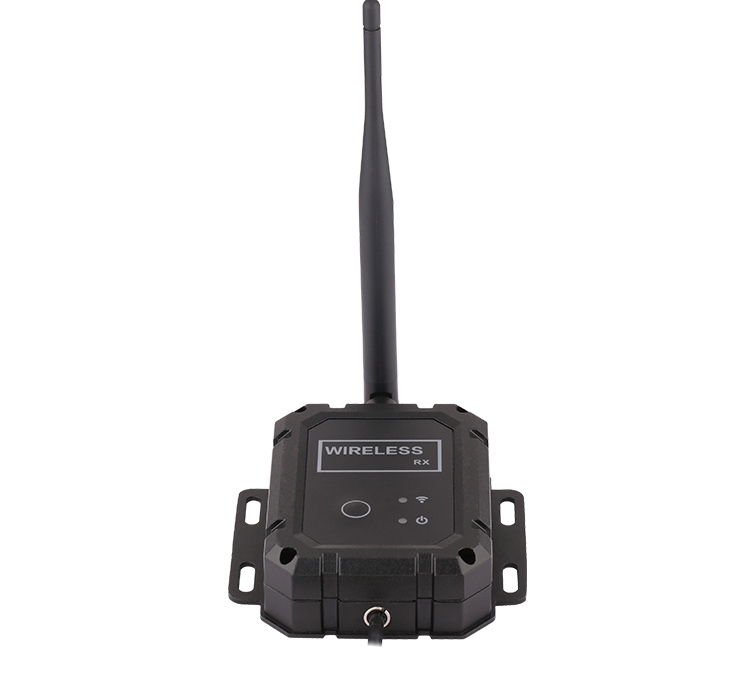

2.Wireless receiving part (External connection power and monitor)
receiver work indicator light: red (In the state of receiving signal)
WIFI indicator light: blue (Keep bright)
The central button: Request matching
Technical Specifications
| Start Time | 1S |
| Boot delay | 120ms |
| Resolution | PAL:720X576/NTSC:720X480 |
| Video Frame Rate | NTSC:30f/SPAL:25f/S |
| Video Compression | MPEG4 |
| TV System | PAL/NTSC |
| Frequency Range | 2400~2483.5MHz |
| Antenna Input/Output Impedance | 50Ω,Typ |
| Receive sensitivity | -89dBm |
| Transmitted power | 18dBm |
| RF transmission rate | 12Mbps |
| Modulation and demodulation technique | FSK/GFSK |
| Spread Spectrum | FHSS |
| Frequency hopping rate | 1200/S |
| Slowed-down video | 200ms |
| Transmission distance | 120M |
| Video Input/Output Impedance | 75Ω,Typ |
| Video Input/Output Level | 1Vp-p,TyP |
| Video Signal-noise ratio | 50dB,Min |
| Audio Input/Output Level | 5mv~0.5Vp-p,Typ |
| Audio Signal-noise ratio | 63dB,Min |
| Audio Input/Output Level | 5mv~0.5Vp-p,Typ |
| Audio Signal-noise ratio | 63dB,Min |
| Operating voltage/current | DC12-24V/200mA |
| Operating temperature | -20°C~70°C,RH 90% MAX |
| Storage Temperature | -30°C~80°C,RH 90% MAX |
