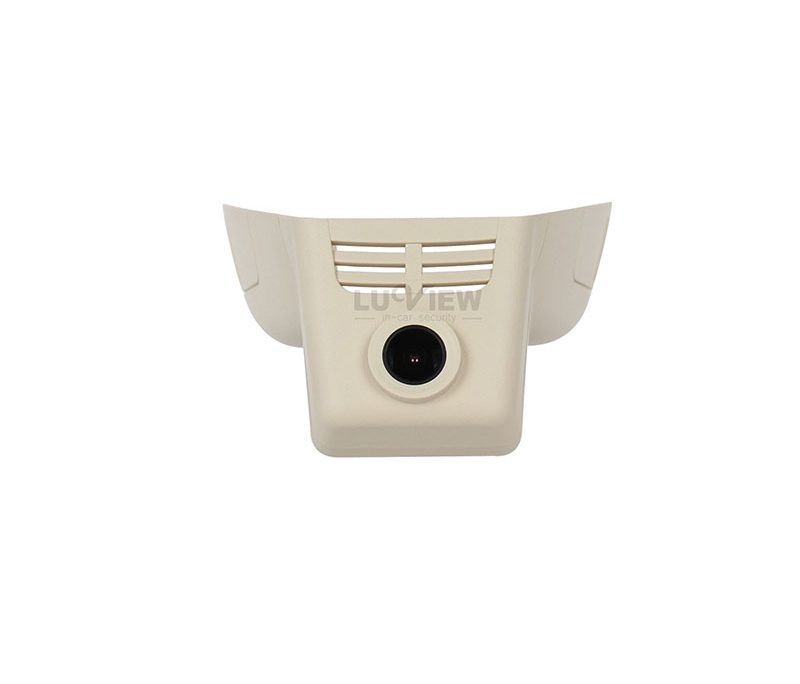

RS-A17 hidden dash cam for Mercedes Benz B180, B200 ,B260, B261

Product Features

Ambarella A12L solution
Starlight Night Vision
Color optional: Grey, Black, Off-white
Hidden design without changing original Mercedes Benz outer appearance

With Luview’s RS-A17 hidden dash cam, you can make driving safer without compromising the classic look of your Mercedes Benz B180, B200, B260 or B261. Featuring a sleek design and 1080p high definition with 170°wide viewing angles plus WiFi connection capability to keep an eye on everything around your car — all tucked away out of sight — it makes for peace of mind while navigating any journey! If you’re in search of top quality dashcams suited for Mercedes Benz B180, B200, B260 or B261, then put trust in China manufacturer Luview; we’ll have you covered every step of the way.

Technical Specifications

Processor Novatek NT96658MBG ( with built in 1 GB DDRIII)
Image Sensor Sony IMX323 professional 1/2.9 inch Exmor CMOS image sensor
Lens Material 6G+IR
Aperture Value F1.8
Lens Angle 170°
Max. Resolution 1920*1080 pixels 1080p / 1280*720 pixels 720p
Encoding type H.264@1080P 30fp/s, H.264@720P 60fp/s
Video Format H.264 coding,MP4 storage format
Effective pixels: 2 million pixels / 1 million pixels
Picture Format JPEG
Recording Mode : 3 minute / 5 minutes / 10 minutes / auto cycling
Storage TF card ( Class 10 or above,support maximum 32GB )
TV system Output: NTSC/PAL
GPS : not supported
WiFi : 802.11b/g/n
G-Sensor Triaxial accelerometer
motion detection Object movement detected and recording 10 seconds
Collision detection Collision detected and recording for 30 seconds
Start-up time Approximate 2 seconds
Working Voltage DC12V
Working Currency : 250MA ±10MA
Static Currency 0.001MA
Storage Temperature : -30 ° C ~ 85 ° C.
Operating Temperature -20 ° C ~ 65° C.
Operating Humidity 15%-60%RH
Battery Not included
Monitor Not included
