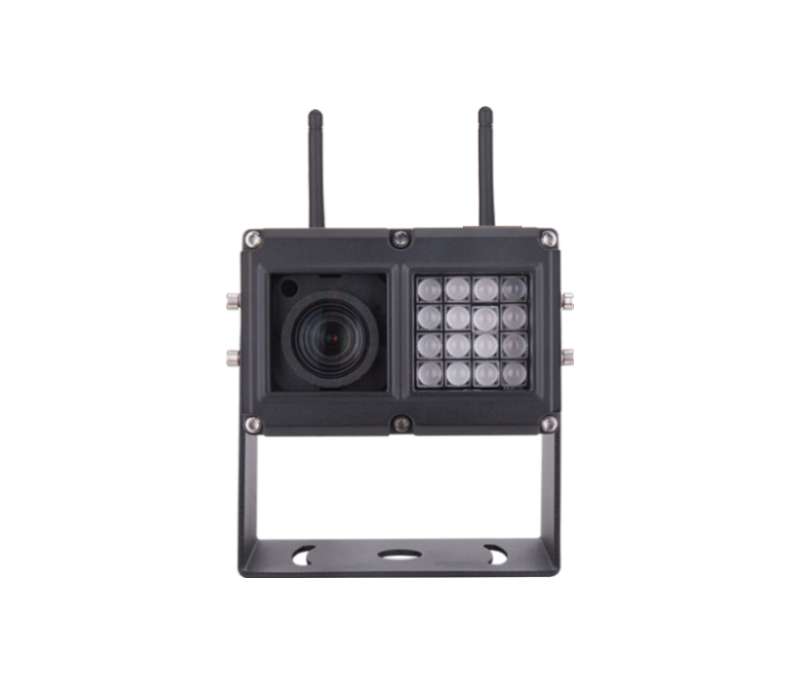

JY-679W IP68 AHD wireless tower crane zoom camera with infrared night vision function
Product Features
LUVIEW JY-679W IP68 AHD wireless tower crane zoom camera with infrared night vision function offers a complete monitoring solution for construction sites. Featuring a 1.3MP Sensor and 30-50m IR night vision, it delivers clear images day and night. With IP68 waterproof rating and efficient heat dissipation, it withstands harsh environments like rain, dust, and high temperatures. The wireless zoom allows remote control for flexible monitoring, while smart IR control and constant current design ensure long-lasting stability. Designed for tower cranes, the JY-679W ensures safety and efficiency in any condition—24/7 reliability for your worksite!
- 1.3MP ON sensor for high performance.
- Infrared lamp with 30-50m projection distance.
- Smart infrared control for auto adjustment.
- Constant current circuit for stable operation.
- Efficient heat dissipation to prevent fogging.
- Waterproof rating IP68.
- Wireless focus control for convenience.
Technical Specifications
| Image Sensor | 1/3 AR0130 |
| TV System | NTSC/PAL |
| Effective Pixels | 1280(H)×960(V) |
| Sensing Area | 3.75μm |
| Sync. System | Internal |
| Resolution | 1.3Megapixel / 960H |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | NO |
| IR LED Qty | 15PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 60dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | PAL:1/25~1/10000s NTSC:1/30~1/12000s |
| Backlight Compensation | AUTO |
| Focal length | 5~90mm |
| Optical zoom | 18-fold |
| Focusing | Manual/automatic |
| Signal output | AHD 960P/default setting CVBS |
| Infrared range | 30-50M |
| Infrared lamp power | 3.6W |
| Infrared open mode | Low illumination 0.1Lux on |
| Power Supply | 12V |
| Power Dissipation | 12W |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -40℃-80℃,RH 95% MAX |
