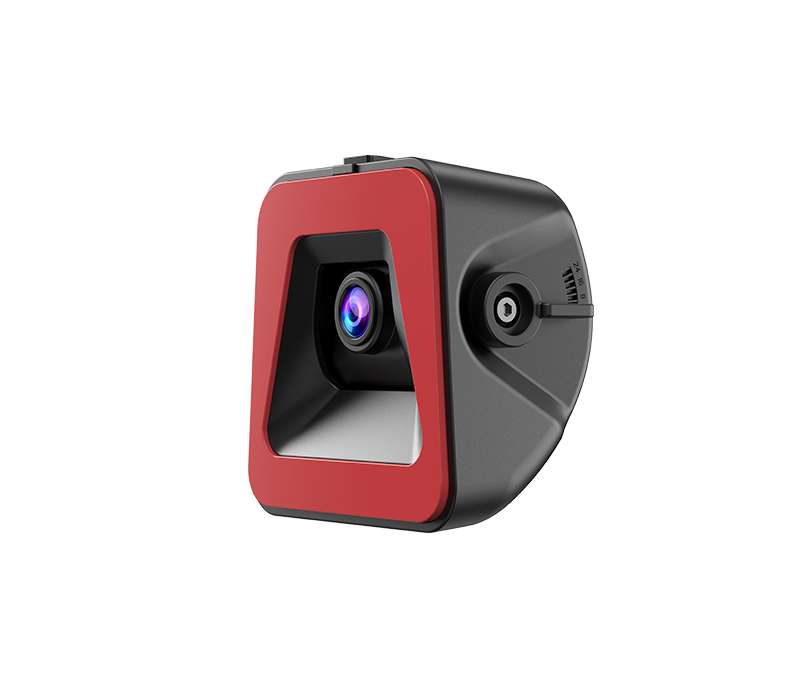

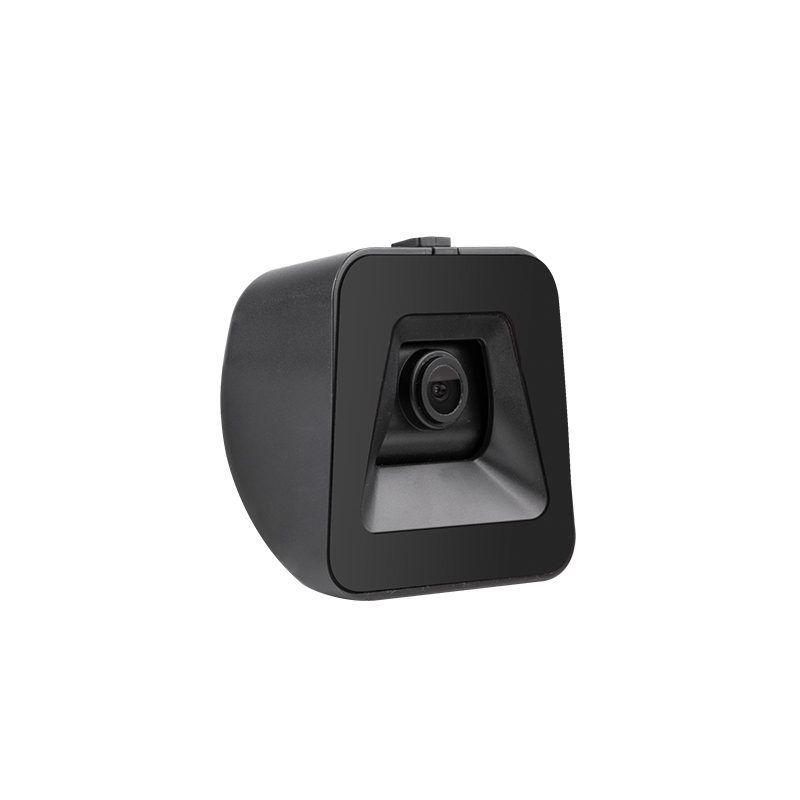

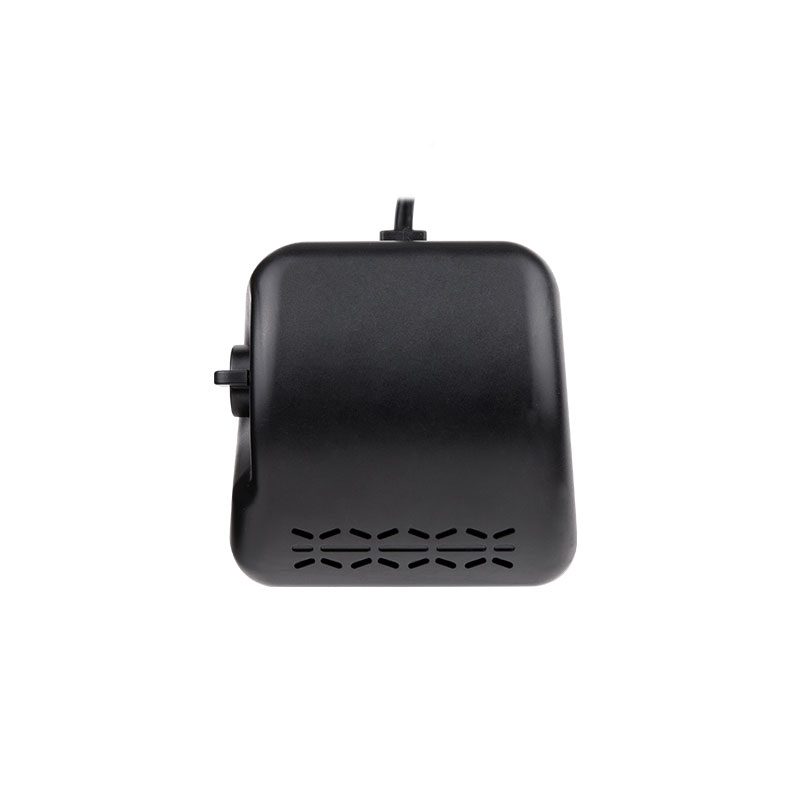

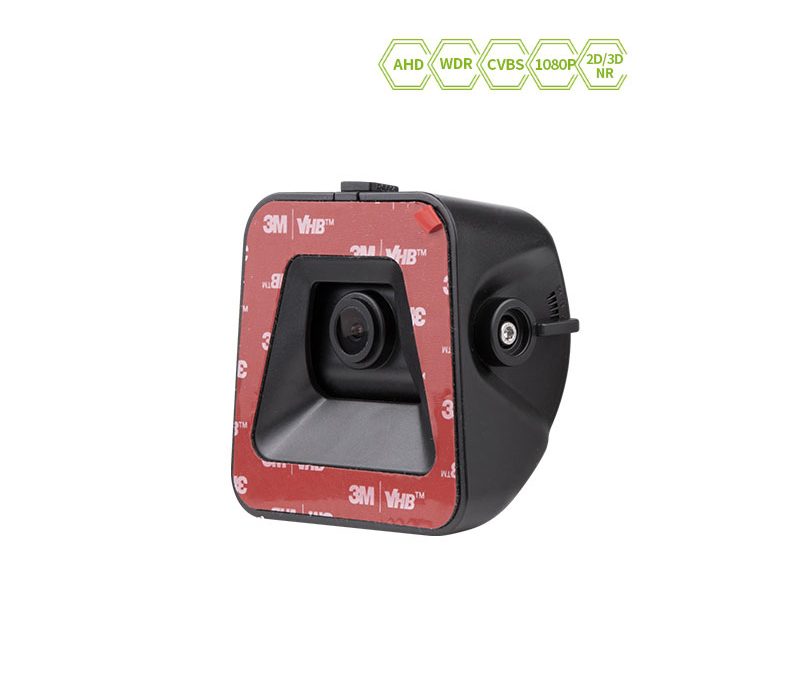

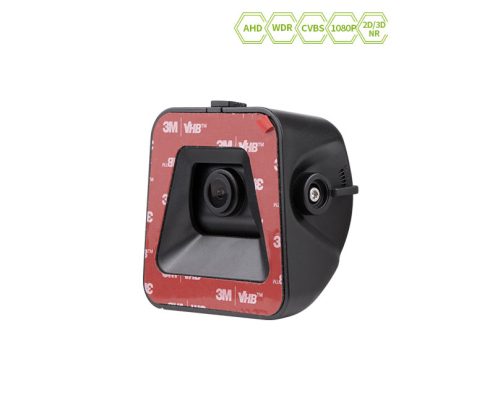

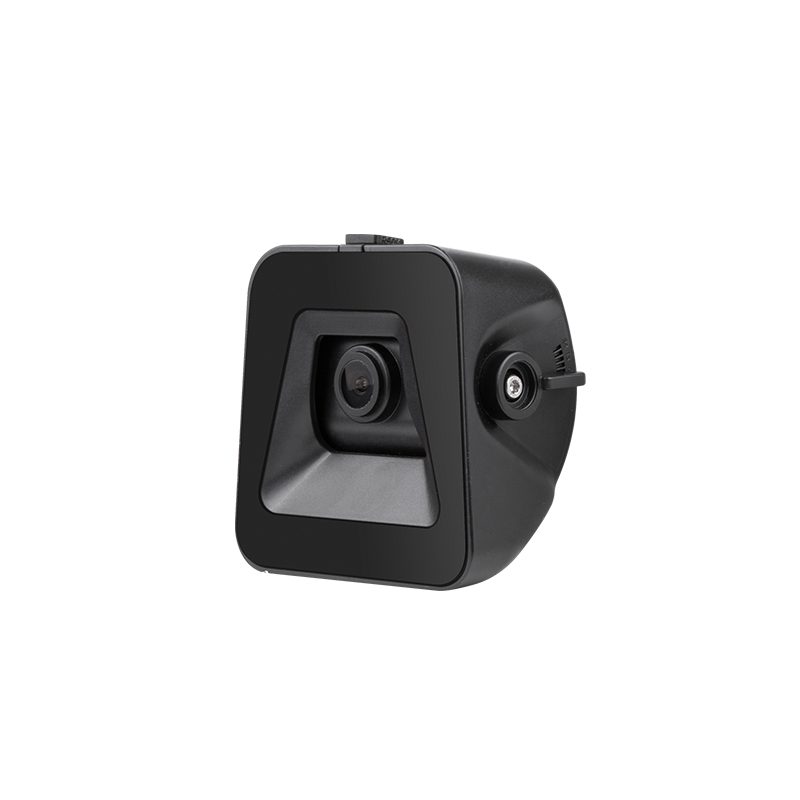

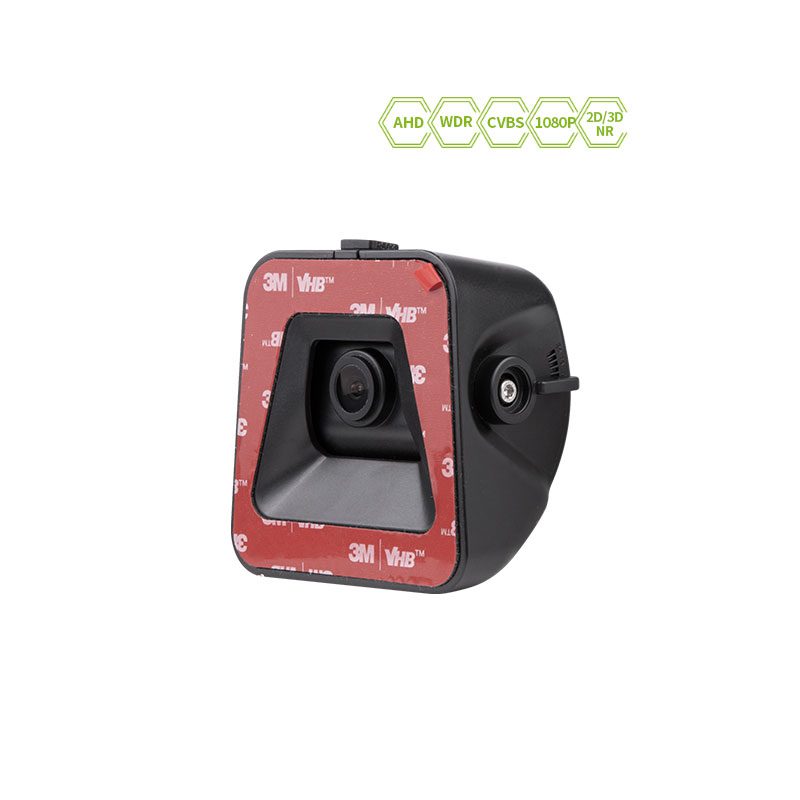

JY-816 1080P WDR wide dynamic range front view camera for commercial vehicles
Product Features
The Luview JY-816 1080P WDR wide dynamic range camera is designed for light-duty trucks, medium-duty trucks, heavy-duty trucks, buses, coaches, and engineering vehicles. It features a Sony 2-megapixel starlight sensor, supports wide dynamic range and 2D/3D noise reduction, and offers an adjustable lens angle from 0°to 24°. Suitable for urban roads, highways, and complex operating conditions, it provides comprehensive vehicle safety protection and helps drivers promptly identify potential hazards.
- Equipped with a Sony 2-megapixel starlight-level wide dynamic range sensor.
- Supports dual-signal output, with AHD/CVBS options available.
- Wide dynamic range supported.
- Adaptive noise reduction with 2D/3D NR (Noise Reduction).

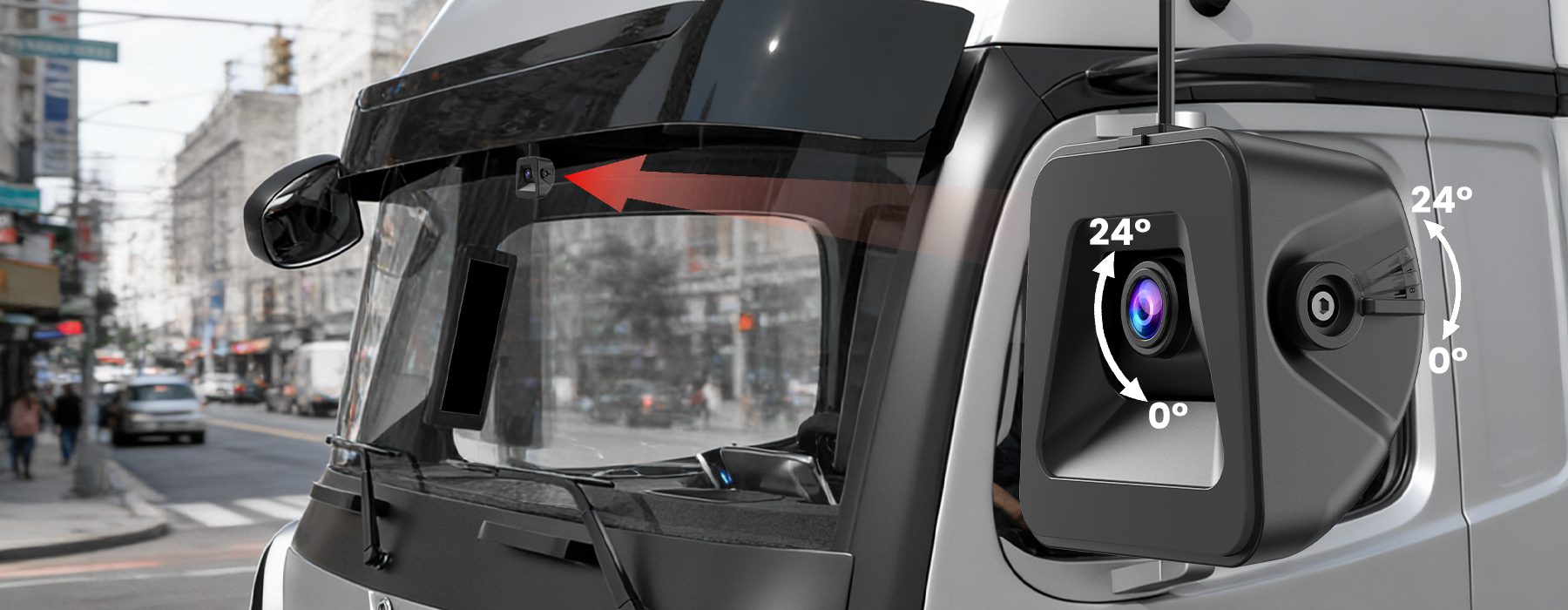

- Lens angle adjustable vertically from 0° to 24°.
- Installed on the vehicle’s front windshield.
Technical Specifications
| Image Sensor | 1/2.8 IMX307 |
| TV System | NTSC/PAL（Optional） |
| Frame Rate | 1080P @ 30fps |
| Effective Pixels | 1920(H)*1080(V) |
| Sync. System | Internal |
| Output Signal Amplitude | 1.0 Vp-p/75 Ohm |
| Scanning System | Internal |
| AGC | AUTO |
| Signal to Noise Ratio | ≥48dB |
| White Balance | AUTO |
| Gamma Consumption | 0.45 |
| Wide Dynamic Range | Support |
| Backlight Compensation | AUTO |
| Electronic Shutter | AUTO |
| Power Supply Voltage | DC12V |
| Lens | 2.8mm |
| Lens Angle | H:105° V:55° D:120° |
| Power Consumption | 130±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
Why Do We Need to Install Luview High Definition Vehicle Front View Camera?
Installing a Luview high-definition vehicle front view camera is essential for enhancing driving safety and visibility, especially for commercial and engineering vehicles. The Luview JY-816 1080P WDR wide dynamic range camera is specially built for light-duty trucks, medium-duty trucks, heavy-duty trucks, buses, coaches and engineering vehicles.
It adopts a Sony 2-megapixel starlight sensor, supports wide dynamic range and 2D/3D adaptive noise reduction, ensuring clear and stable imaging even in complex lighting environments. With dual-signal output (AHD/CVBS) and a vertically adjustable lens angle from 0° to 24°, it can be flexibly installed on the front windshield to adapt to various road conditions including urban roads and highways.
