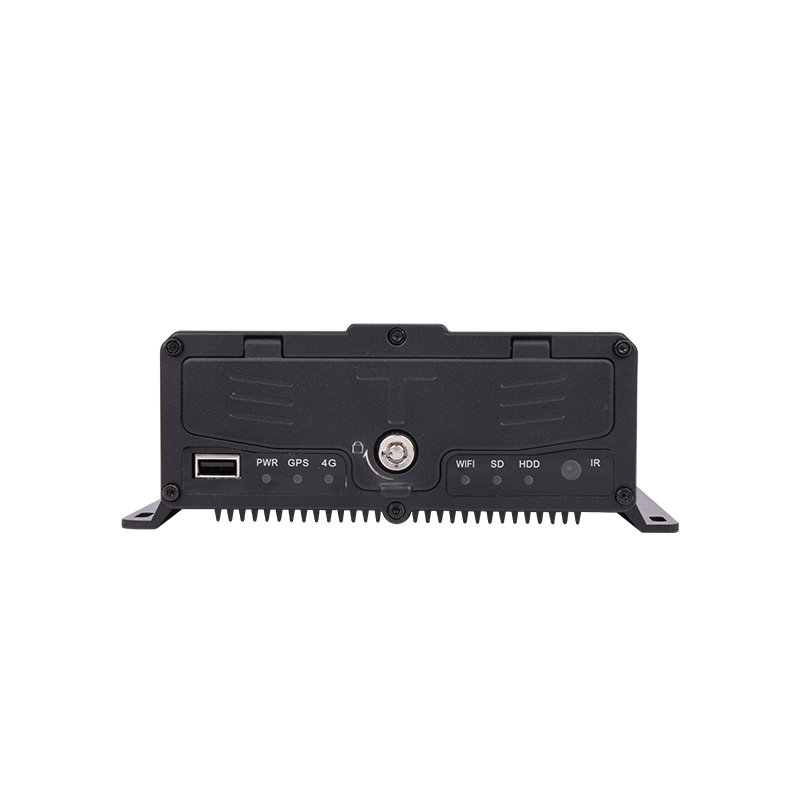

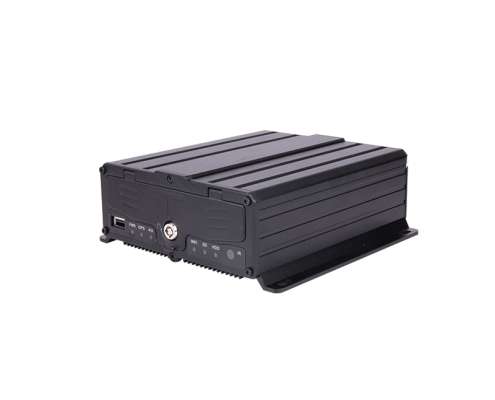

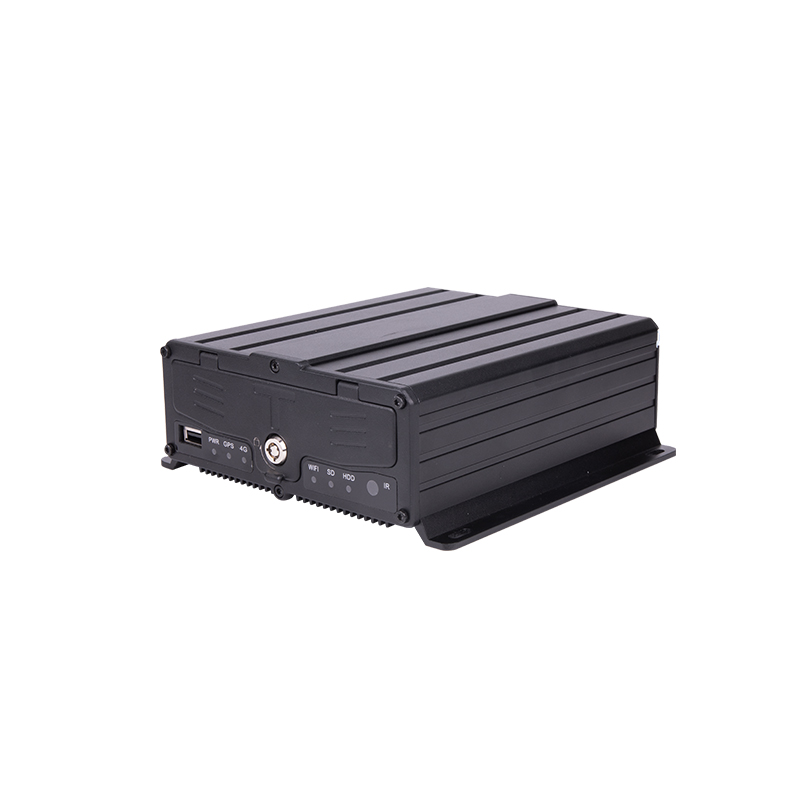

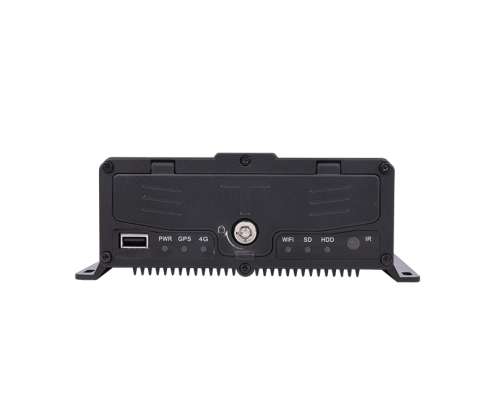

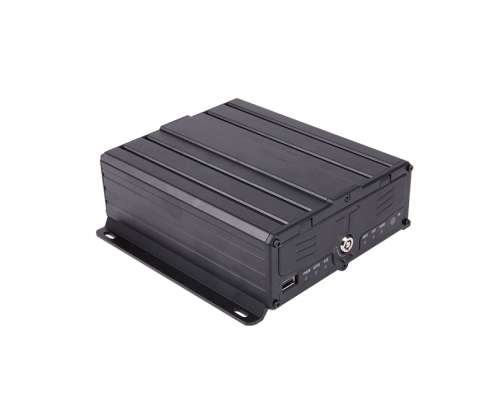

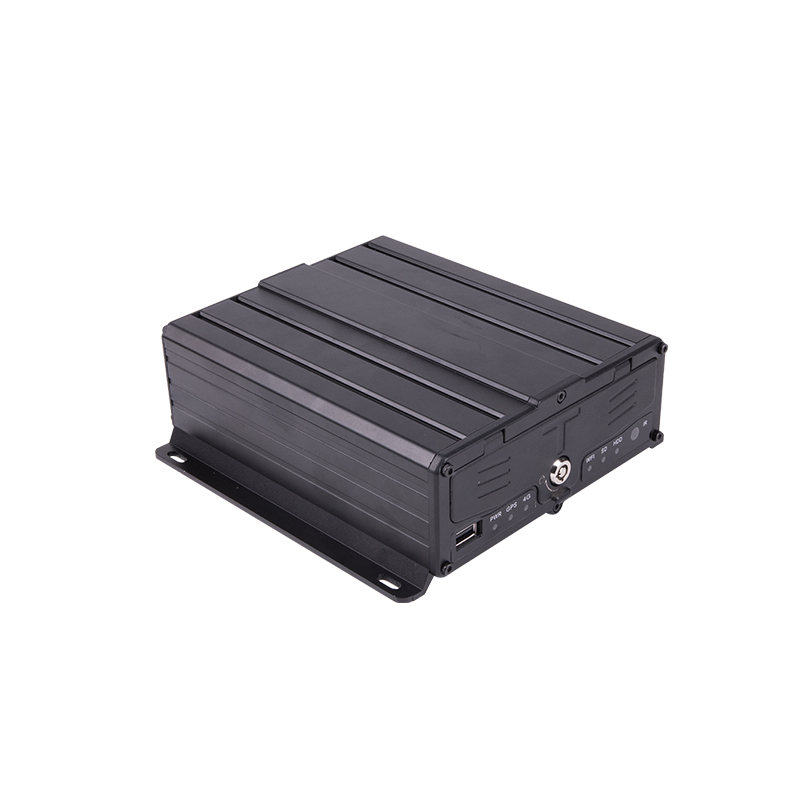

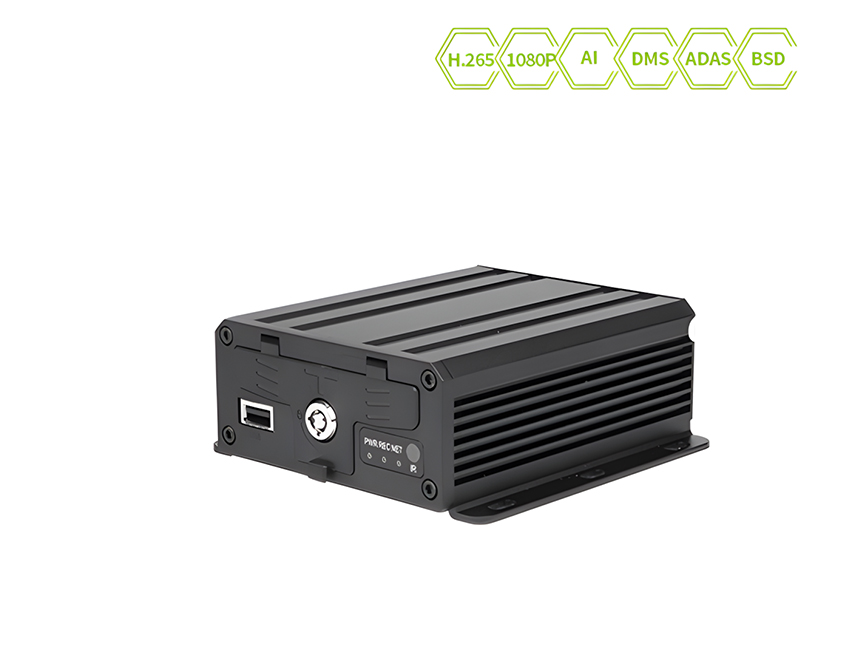

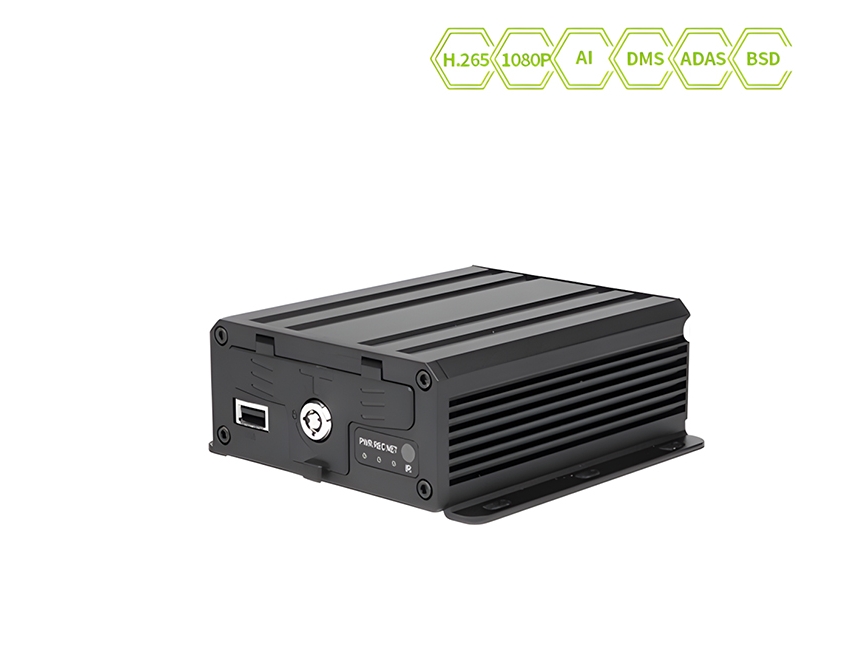

JY-DV8004 4 Channel 1080P AHD AI all-in-one MDVR for fleet management
Product Features
The Luview 4 channel AHD 1080P MDVR, designed for fleet management, integrates AI to monitor drivers and vehicle status, preventing safety risks like drowsy driving. It uses H.265 & H.264 encoding for efficient storage and transmission, supports multiple storage and network options, and offers industrial-grade durability and remote management. Ideal for intelligent fleet operations.
- H.265 & H.264 is used to encode and decode, with high compression ratio, saving storage space and transmission flow
- Support one SATA hard disk, easy to access, meet the requirements of mass storage
- Support one SD card to record video manually or regularly, and 1 USB interface
- One SIM card can be used to dial the Internet
- Support 6-channel IO alarm input, support RS232, RS485 function
- Support mobile app, client, platform software preview video and parameter configuration
- Special file system, improve the efficiency of disk reading and writing, video more stable
- Built in AI intelligent algorithm, support ADAS, DMS, BSD detection
- Industrial appearance design, aluminum alloy shell, product fastening, good heat dissipation
Technical Specifications
| System | Linux |
| Interface | Graphical menu operation interface (OSD menu), character overlay function |
| CPU | ARM Cortex CA9 [email protected] |
| Memory | 1GB DDR3 |
| Video Input | 4-channel video input |
| Video Output | Support 1-channel CVBS/VGA output |
| Format | PAL、NTSC |
| Compression Format | H.264/H.265 |
| Resolution | Support 1080P、720P、D1、HD1、 CIF |
| Image quality | Level 1 to 8, Optimum level 1, minimum level 8 |
| Mode | Default automatic recording, support timed recording, alarm recording, etc. |
| Audio Input/output | Support 4-channel input, simultaneous recording of sound and video 1 channel output, built-in power amplifier, optional built-in and external |
| Compression Format | G.711A |
| Alarm Input | 6-channel switching inputs, 1-channel emergency alarm input |
| Alarm Output | 1-channel switching output，linkage sound and light alarm, oil and power cut.etc |
| Communication interface | 1 USB interface；1 CH RS232 interface, expandable card reader, oil sensor. etc；1 CH RS485 interface, expandable PTZ；1 10m/100M adaptive network interface, Support TCP/IP,FTP,DDNS protocol |
| Wireless Transfer | Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE |
| GPS | Support external GPS / BD module, can be reported to JT_808 |
| Sensor | Built in 3-axis acceleration and 3-axis gyroscope sensor |
| Disk&SD card | Built in hard disk with SATA interface, supporting up to 4T 1 SD card video, maximum support 512g, can support synchronous sub stream video |
| Upgrade Method | Support SD-card、U-disk、FTP remote auto-upgrade |
| Storage Method | Proprietary bare disk storage method |
| SIM/USB connector | Support 1 SIM card port;Front USB interface, can use U disk to upgrade backup data, support USB mouse |
| Video Playback | Support 1-4 channel playback, support 2, 4, 8, 16 times speed fast forward or backward, pause |
| Power Input | DC:+9V ~ +36V |
| Operating Environment Temperature | -10℃ to +70℃ |
| Operating Environment Humidity | 20%~80% |
| Security Management | User-password, administrator -password two-level management |
