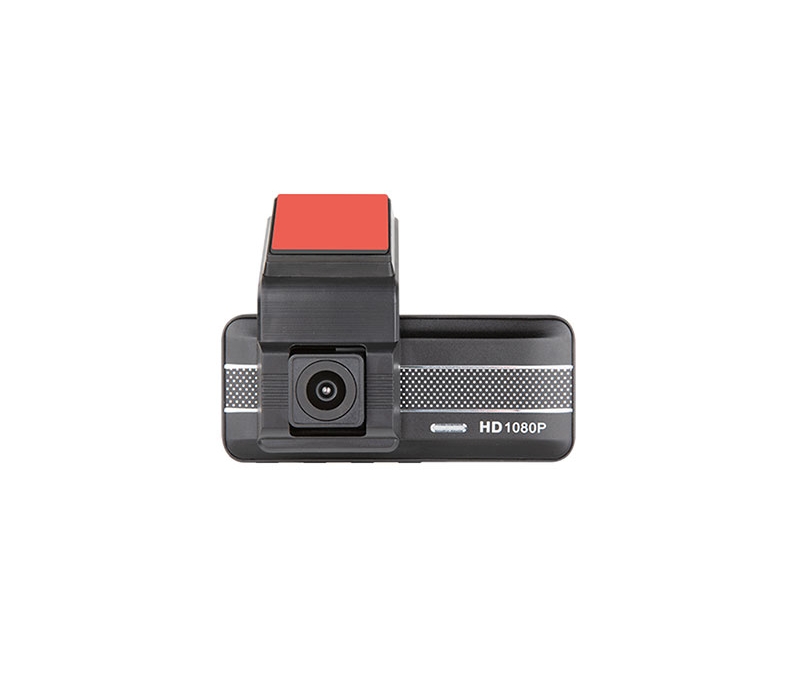

SD205 150 degree view ips screen universal dash cam
Product Features
The Luview SD205 150 degree view IPS screen universal dash cam can be easily installed on the windshield of a car (behind the rearview mirror) for convenient recording of driving conditions. With the help of the camera, you can also capture incredible moments in daily driving, and share them on social platforms such as YouTube to record the wonderful moments. The dash cam supports WiFi function, you can remotely watch the video recorded by the driving recorder on your mobile phone in real time, and you can also review the video, take pictures or take pictures with one key to realize the cloud storage function.
- 150°Wide field of view
- MJPEG encoding
- 316″ IPS screen
- High and low temperature resistance
Technical Specifications
| item | Specifications |
| CPU | X316 |
| RAM | Built-in DDR2 512Mb; |
| External memory | 16G-64GB TF card Class10 |
| screen | 3.16IPS |
| Front camera | GC2053/2.0MP 1080P/4 glass/F1.8 aperture/143° oblique angle/17(outer ring diameter)x22.5(height) |
| rear view camera | AHD1080P |
| battery | Super capacitor |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.3mm |
| Lens Angle | 150° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
