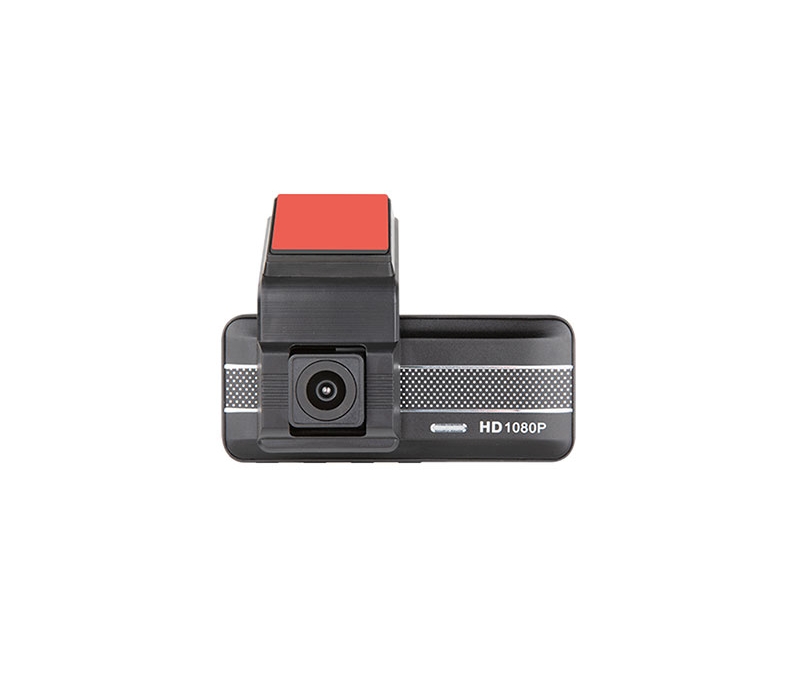

SD205 150 degree view ips screen universal dash cam

Product Features

This type of dash cam can be easily installed on the windshield of a car (behind the rearview mirror) for convenient recording of driving conditions. With the help of the camera, you can also capture incredible moments in daily driving, and share them on social platforms such as YouTube to record the wonderful moments. The dash cam supports WiFi function, you can remotely watch the video recorded by the driving recorder on your mobile phone in real time, and you can also review the video, take pictures or take pictures with one key to realize the cloud storage function.

  • 150°Wide field of view
  • MJPEG encoding
  • 316″ IPS screen
  • High and low temperature resistance

Technical Specifications

item Specifications
CPUX316
RAMBuilt-in DDR2 512Mb;
External memory16G-64GB TF card Class10
screen3.16IPS
Front cameraGC2053/2.0MP 1080P/4 glass/F1.8 aperture/143° oblique angle/17(outer ring diameter)x22.5(height)
rear view cameraAHD1080P
batterySuper capacitor
IR LED Qty6PCS
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Power SupplyDC12V
Lens2.3mm
Lens Angle150°
Current Drain65±5mA
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
