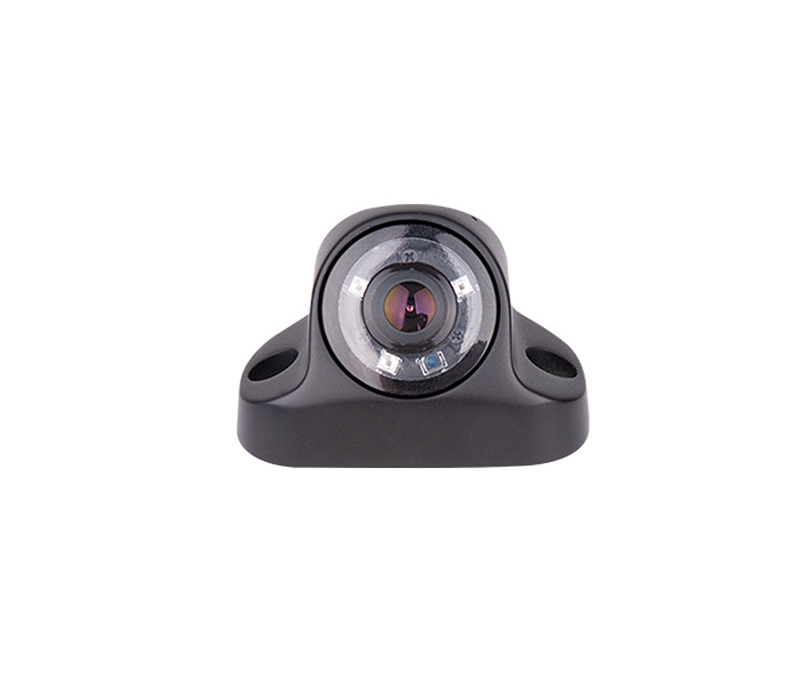

JY-027 mini camera with Sony starlight wide dynamic sensor
Product Features
The camera is compact in shape and exquisite in workmanship. It uses a Sony 2 million starlight wide dynamic sensor with an illuminance of 0.001 Lux. The low-light visibility of night vision images is clearer and more delicate. The camera supports four-in-one signal output, AHD/TVI/CVI/CVBS is optional. Luview has 17 years of experience in R&D and production in the field of automotive electronics, and many products such as cameras, displays, and reversing sensors are sold worldwide.
- Support four in one signal output
- Support wide dynamic range up to 120dB
- Adaptive noise reduction, 2d-dnr, 3d-dnr
Technical Specifications
| Image Sensor | 1/2.8 Sony |
| TV System | NTSC / PAL (optional) |
| Effective Pixels | 1920(H)*1080(V) |
| Sensing Area | 1080P@25fps / 1080P@30fps |
| Sync. System | Internal |
| Resolution | Default 1080p / 200W (720p switchable) |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 3PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | progressive scanning |
| AGC | AUTO |
| Signal to noise ratio | ≥48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC: 12V±1V |
| Lens | 2.5mm |
| Lens Angle | 150° |
| Current Drain | Day：110±5mA/12V Night：310mA±10mA/12V |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
