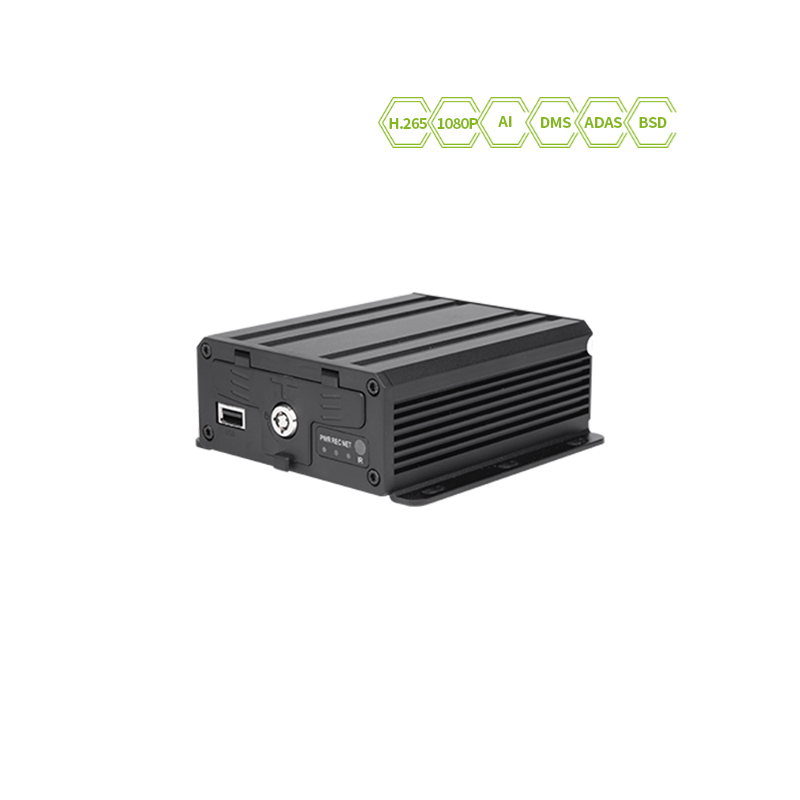

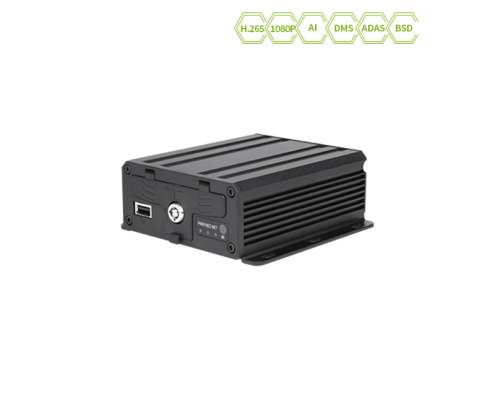

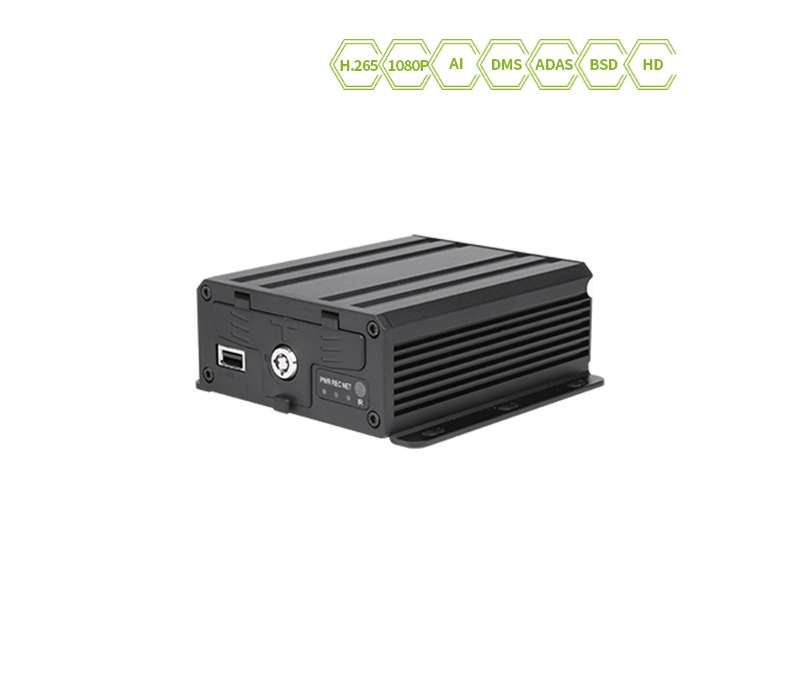

JY-SD5324 4 Channel 1080P AI MDVR for fleet management
Product Features
Luview 4 Channel AHD AI MDVR uses 4G and BeiDou-3/GPS for real-time vehicle tracking and fleet scheduling. It features emergency alarms, multiple interfaces, and AI algorithms (ADAS, DMS, BSD) to enhance safety and reduce risks. Stable storage and efficient coding ensure easy video retrieval. It supports real-time monitoring, alerts, and post-incident review, boosting fleet management efficiency and safety.
- Supports 4-channel AHD HD input (1080P*30FPS, 720P, D1, CIF); IPC connection via network port
- H.265&H.264 encoding for efficient storage and transmission
- 4-channel audio input, 1-channel audio output, 1-channel intercom with external speaker support
- 1-channel CVBS video output (optional VGA)
- 2 SD card slots for manual or scheduled recording up to 512GB
- 1 USB 2.0 port for file export and mouse use
- 4G communication via SIM card, BeiDou-3/GPS dual-mode positioning, and built-in Wi-Fi
- Emergency alarm, 4-channel switch input, 1-channel switch output, 2 RS232 serial ports (optional RS232/RS485)
- Built-in AI for ADAS, DMS, BSD detection
- Mobile app, client, and platform software for video preview and configuration
- Dedicated file system for stable recording
- Compact and portable design with aluminum alloy casing for durability and good heat dissipation
Technical Specifications
| Product | MDVR |
| System | Linux |
| Interface | Graphical menu operation interface (OSD menu) |
| CPU | ARM Cortex CA9 [email protected] |
| Video Input | 4-channel 12V video input |
| Video Output | Support 1-channel CVBS/VGA output |
| Compression Format | H.264/H.265 |
| Resolution | Support 1080P、720P、D1、HD1、 CIF |
| Video Quality | 0-7 levels, 0 is the highest level, 7 is the lowest level |
| Image quality | Level 1 to 8, Optimum level 1, minimum level 8 |
| Mode | Default automatic recording, support timed recording, alarm recording, etc. |
| Audio Input | Support 4-channel input, simultaneous recording of sound and video |
| Audio Output | 1CH, rear port connects to BNC connector |
| Compression Format | G.711A |
| Alarm Input | 4-channel switching inputs, 1-channel emergency alarm input |
| Alarm Output | 1-channel switching output |
| Wireless Transfer | Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE |
| GPS | Support external GPS / BD module, can be reported to JT_808 |
| Sensor | Built-in 3-axis acceleration, optional 6-axis gyroscope sensor |
| Memory Card | 2x MicroSD Card slot, 512GB max |
| Upgrade Method | Support SD-card、U-disk、FTP remote auto-upgrade |
| Storage Method | Proprietary bare disk storage method |
| SIM connector | Support 1 SIM card port |
| Video Playback | Support 1-4 channel playback, support 2, 4, 8, 16 times speed fast forward or backward, pause |
| Power Management | Adaptive wide range power input. Protection functions for overload, undervoltage, short-circuit and reverse connection |
| Power Input | DC:+9V ~ +36V |
| Power Output | +12V@1A，+5V@1A |
| Power Consumption | Normal working state＜12W（Without peripherals) |
| Temperature | -20℃ to +70℃ |
| Humidity | 20%~90% |
