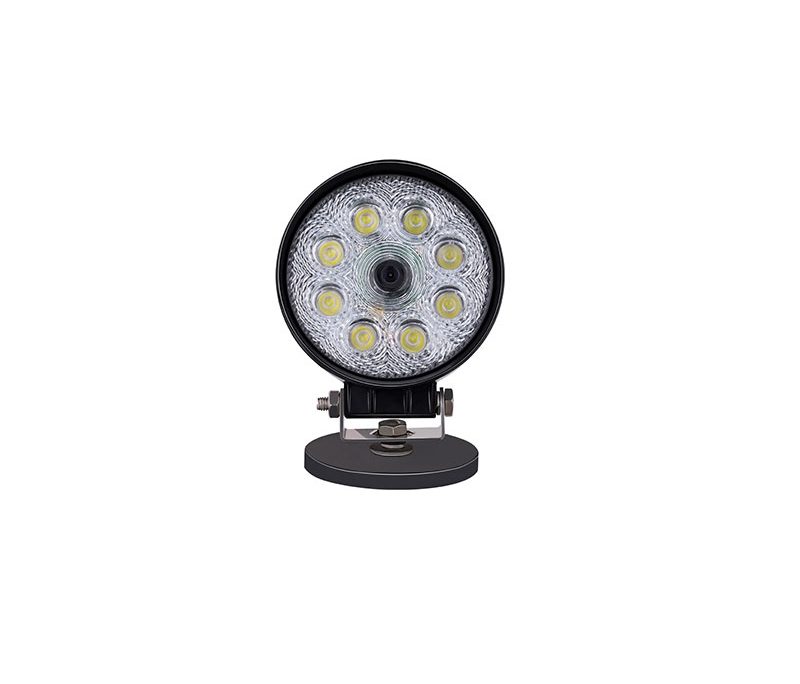

JY-WLC-LB1 round LED headlight camera for agricultural and construction vehicles
Product Features
The Luview WLC-LB1 LED Headlight Camera is the perfect choice for extreme and demanding driving environments. With a 1/3 CMOS sensor and 700TVL of analog HD video, this waterproof and shockproof camera has undergone rigorous deep water testing as well as vibration tests before it leaves the factory to make sure it’s up for any challenge you can throw at it! Its superior low light performance with high-performance noise reduction algorithms guarantees clear image quality even in dark conditions – plus optional bracket magnets that allow easy installation on agricultural or construction vehicles such as Earth movers, Tractors, Harvesters etc., this headlight camera offers ultimate protection when navigating difficult terrain.
- Support ICR switch
- Support mirror switch
- Waterproof grade IP69K
- With night vision function
Technical Specifications
Image Sensor | 1/3 AR0130 |
TV System | NTSC/PAL |
Effective Pixels | 1280(H)ⅹ960(V |
Sensing Area | 3.75μm |
Sync. System | Internal |
Resolution | 130W |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | white light*8PCS |
Light type | 60° floodlight |
Night vision distance | 30-50m |
Microphone | NO |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Lens | 1.7mm |
Lens Angle | 140° |
LED lamp plate voltage | DC12-24V |
LED lamp board power | 24W |
Luminous flux / lumen | 1154/lm |
Color temperature | 6000K |
Lens material | PC |
Power Supply | DC12V |
Current Drain | 70±5mA (day)/2.33±5A(night vision) |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
