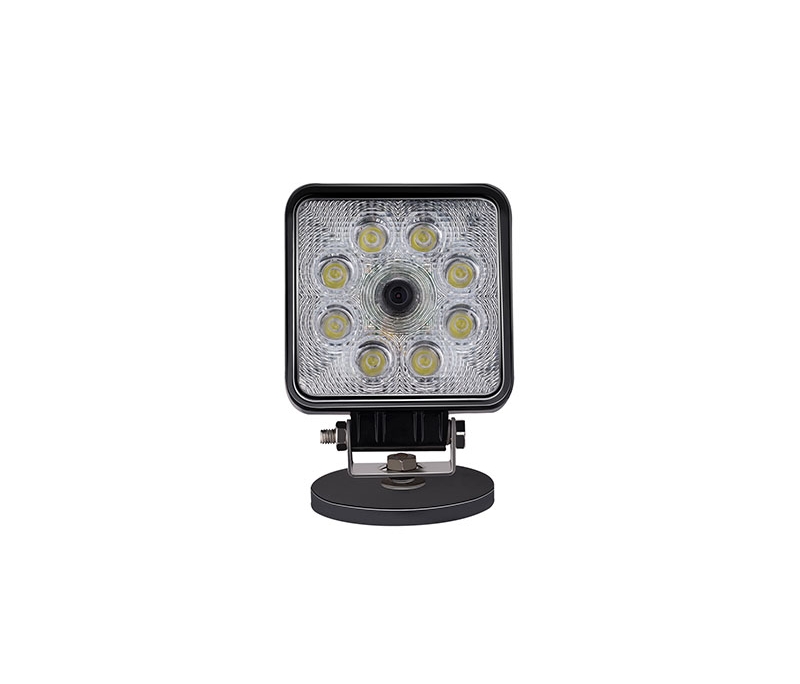

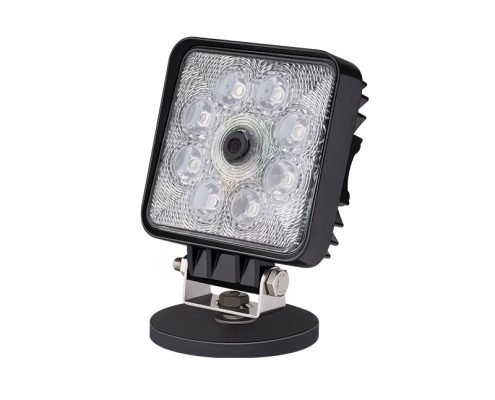

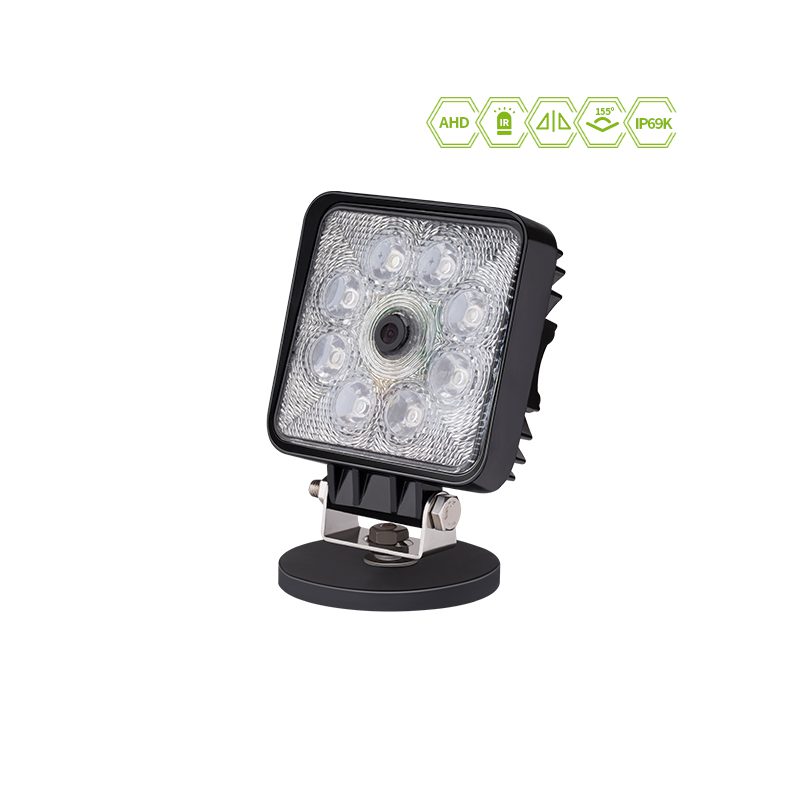

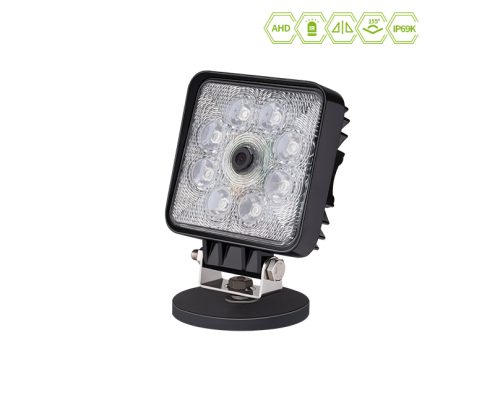

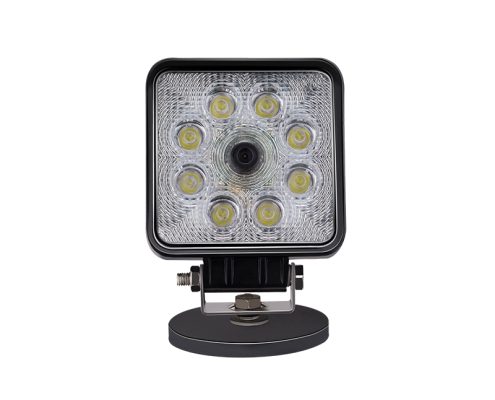

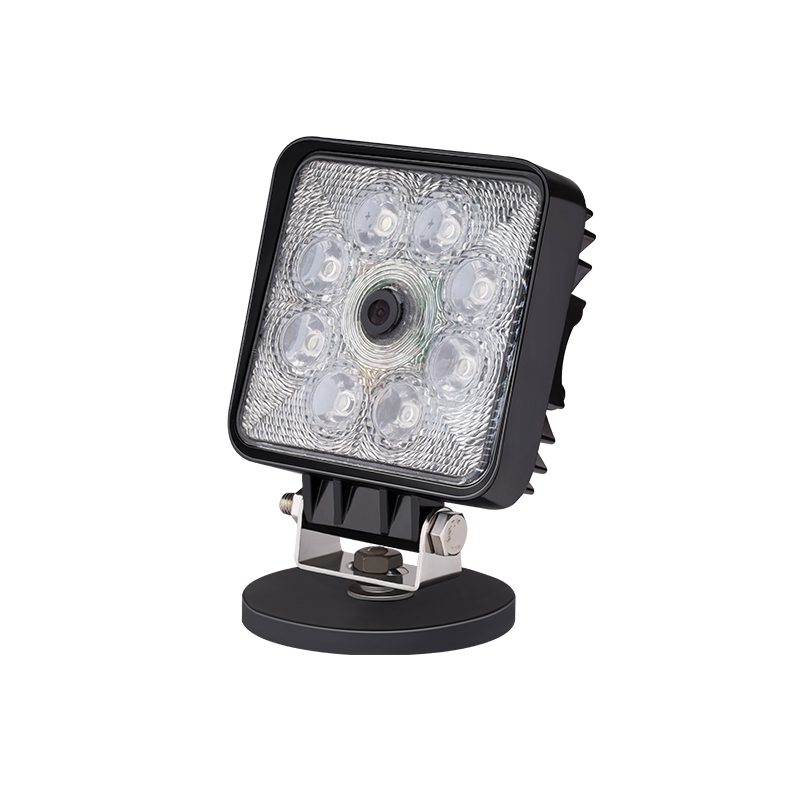

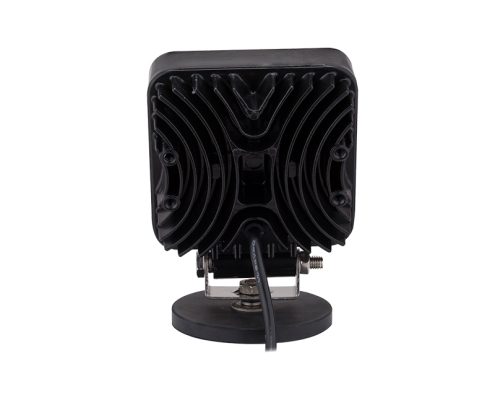

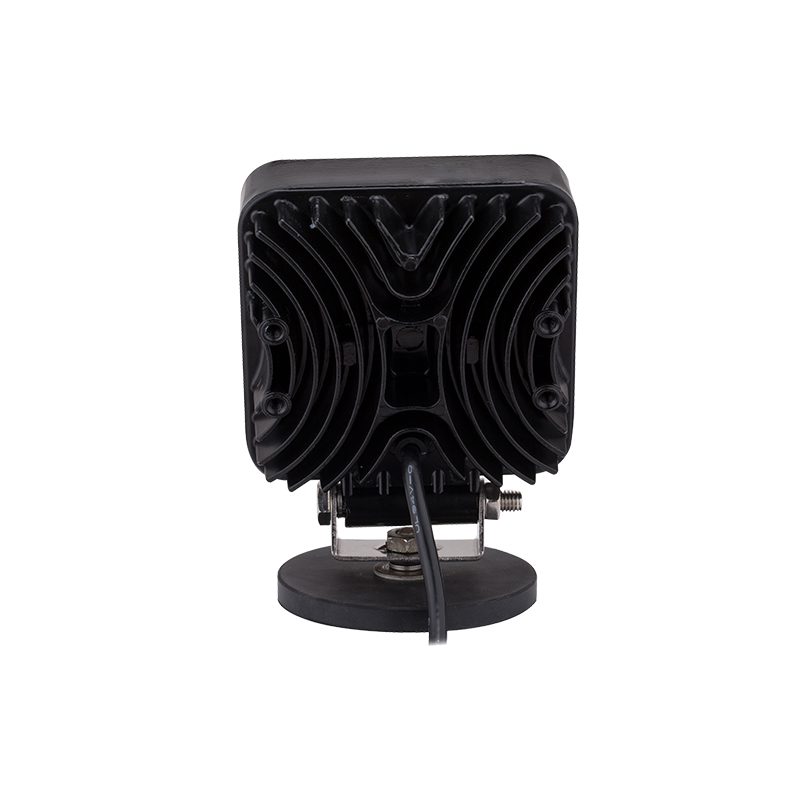

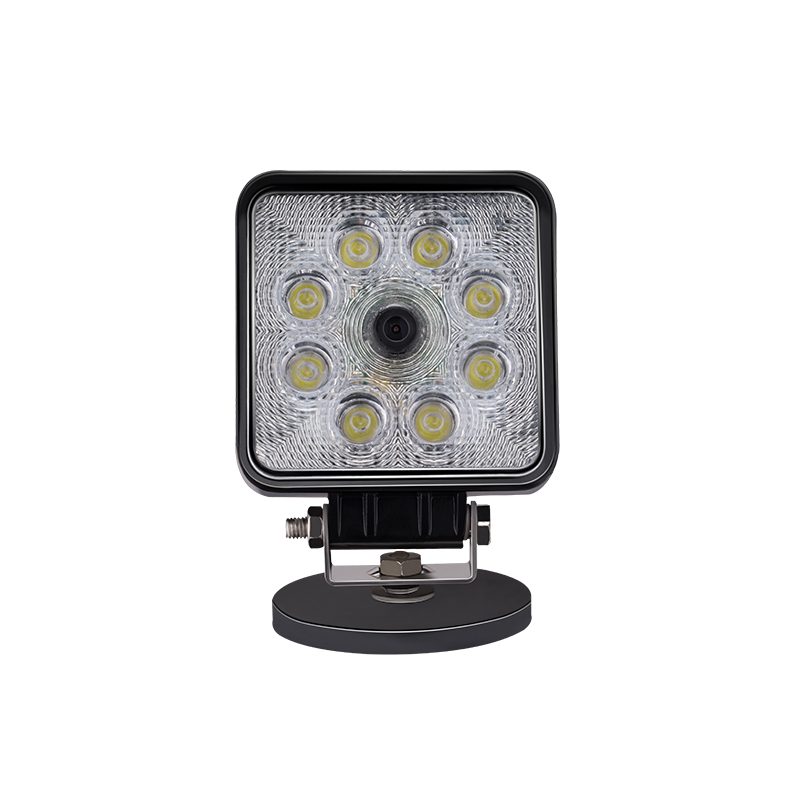

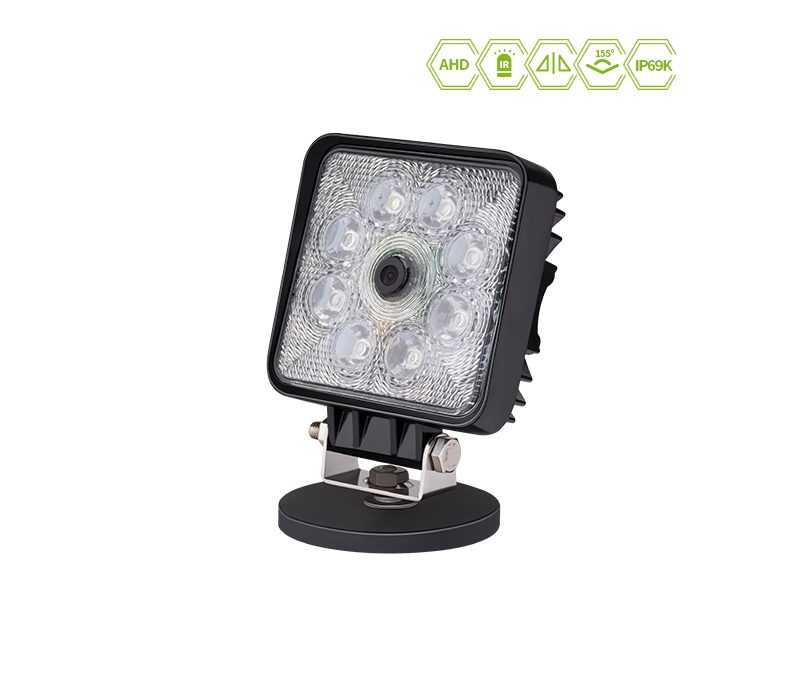

JY-WLC-LB2 24 watts square LED working light camera with IP69K and night vision

Product Features

WLC-LB2 work light camera with night vision function, built-in 8 white light beads, LED lamp board power 24W, infrared distance up to 30-50m, even at night driving can provide drivers with a clear and bright vision. The camera has a viewing angle of 155°, wide viewing range, high visibility, supporting high-speed, long-distance, and real-time transmission. The wide visual range is unobstructed, which helps driving safety.

  • Support ICR switch
  • Support mirror switch
  • Waterproof grade IP69K
  • With night vision function

Technical Specifications

Image Sensor 1/3 AR0130
TV SystemNTSC/PAL
Effective Pixels1280(H)ⅹ960(V)
Sensing Area3.75μm
Sync. SystemInternal
Resolution130W
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
IR LED Qtywhite light*8PCS
Light type60° floodlight
Night vision distance30-50m
MicrophoneNO
Video Output1.0 Vp-p/75 Ohm
Scanning Systeminterlace
AGCAUTO
Signal to noise ratioBetter than 48dB
White balanceAUTO
Gamma Consumption0.45
Electronic ShutterAUTO
Backlight CompensationAUTO
Lens1.7mm
Lens Angle140°
LED lamp plate voltageDC12-24V
LED lamp board power24W
Luminous flux / lumen1154/lm
Color temperature6000K
Lens materialPC
Power SupplyDC12V
Current Drain70±5mA (day)/2.33±5A(night vision)
Operating Temperature-20℃-70℃,RH 95% MAX
Storage Temperature-30℃-80℃,RH 95% MAX
