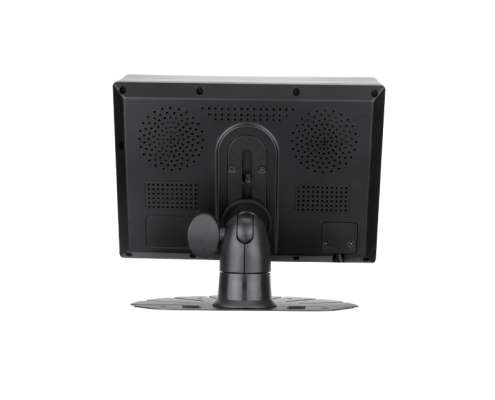

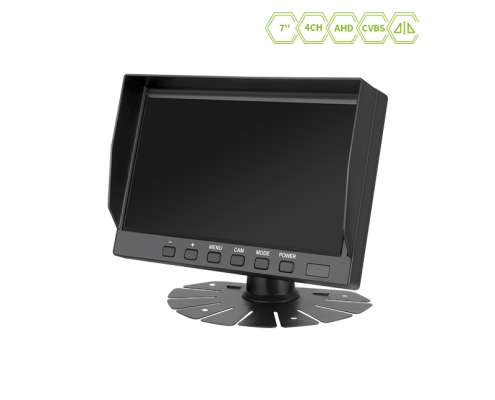

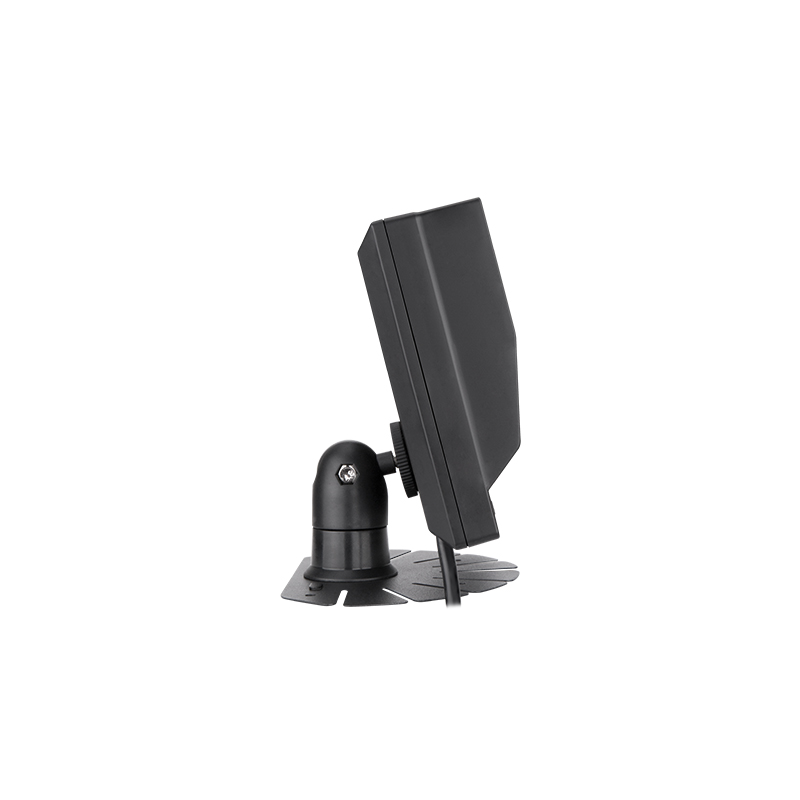

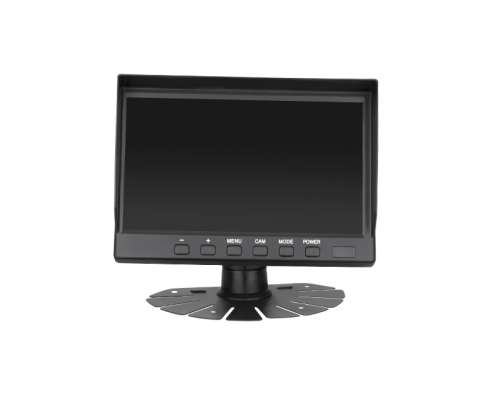

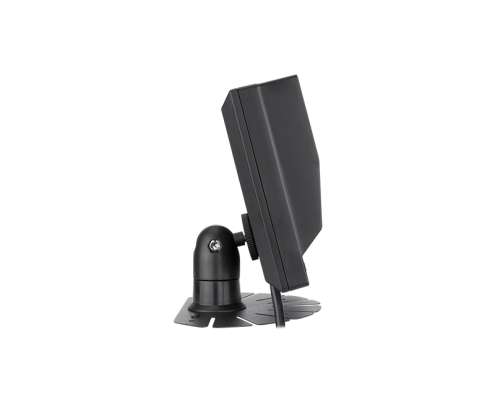

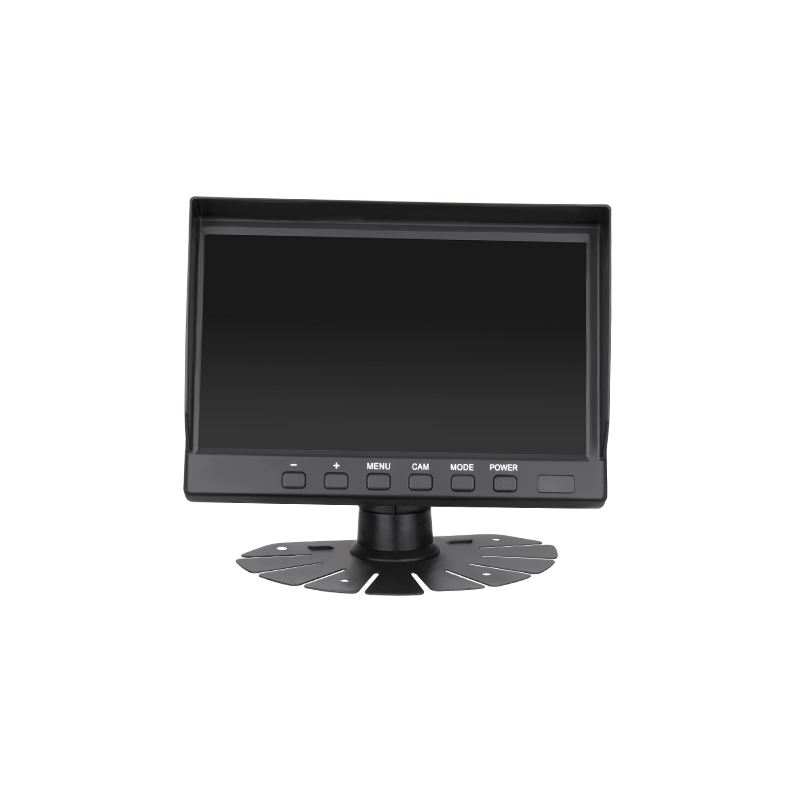

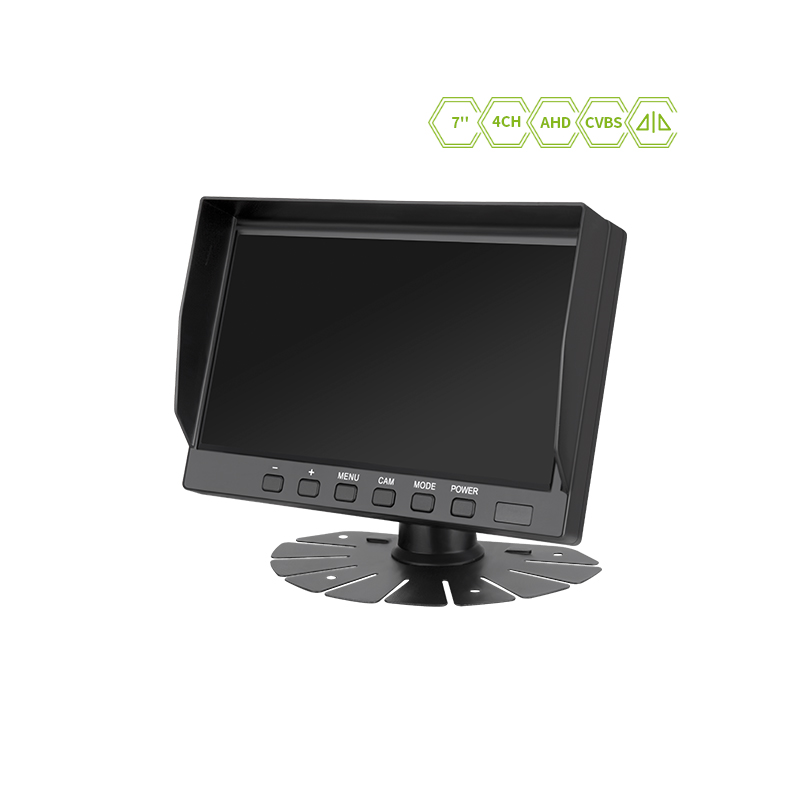

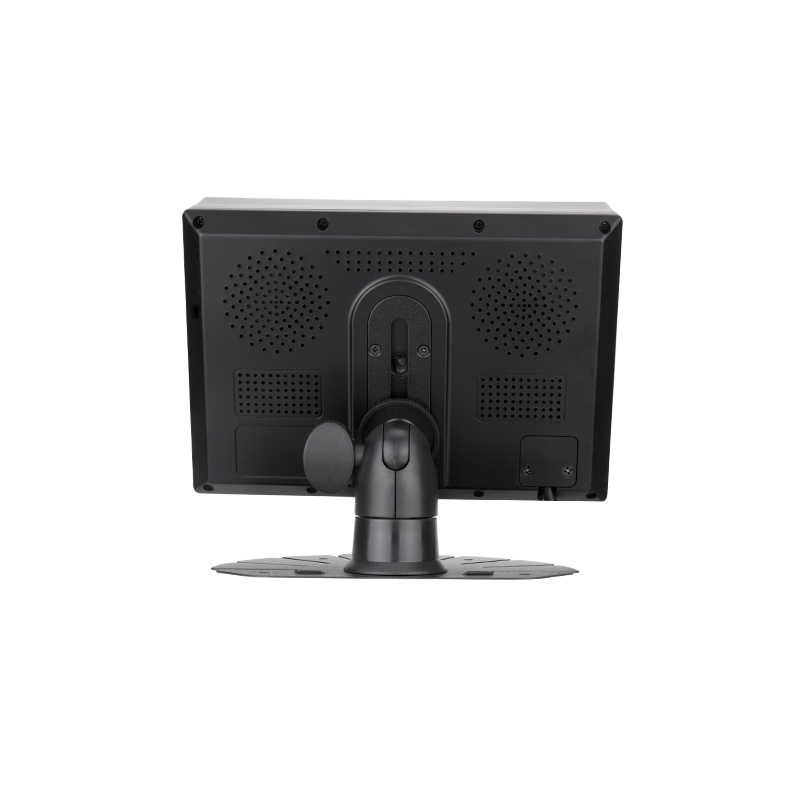

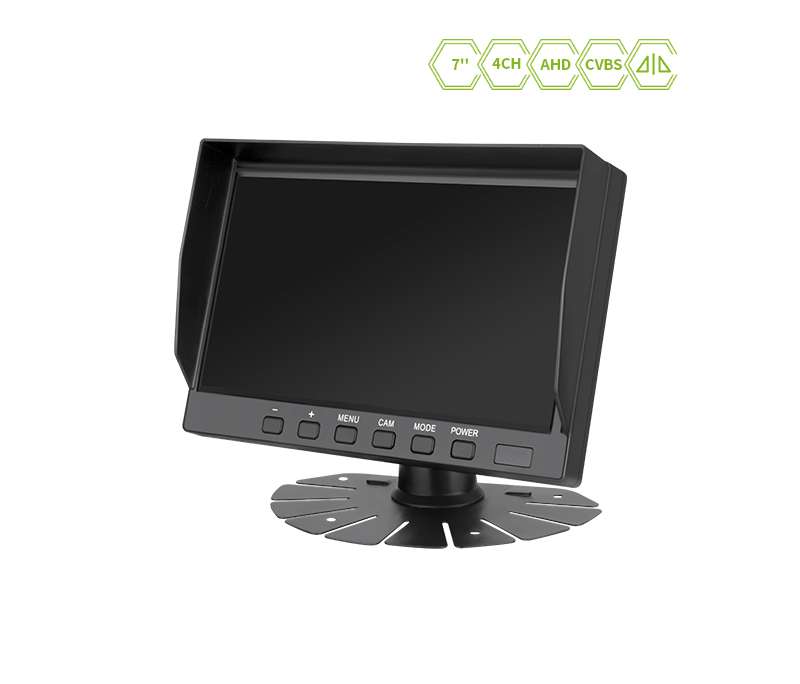

JY-M790 7 inch wide voltage digital monitor with metal case & stand
Product Features
Get ready to see the world with more clarity and detail than ever before! The Luview JY-M790 7 inch digital monitor is here, boasting a sturdy metal case plus a truck stand. Higher safety can be assured thanks to its efficient wide voltage design while superior brightness, definition and realism make this display perfect for reversing or anti-theft monitoring in multiple types of vehicles from trucks and harvesters through school buses or city buses.
- With speaker
- With remote control function
- Multi-languages of display available
- Supports video input from 4 cameras at the same time
- Support audio input from 4 camera at a time (optional)
- Images can be flipped up and down from left to right
Technical Specifications
| Screen Size | 7"/16：9 |
| Resolution | 1024（W）* R.G.B * 600(H) |
| TV System | AUTO |
| Brightness | 300cd/㎡ |
| Contrast | 400:1 |
| Active Area | 154.08(W) × 85.92(H) mm |
| Viewing Angle | U/D:50°/70°,R/L:70°/70° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | AHD |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Two channel video input |
| Reverse Function | Single way back (ruler setting function) |
| Reversing Delayed | 0-15s |
| Scale Function | Two scale ruler and automatic ruler switch |
| Power Supply | 12/24V，DC/<6W |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -25℃ to +70℃ |
