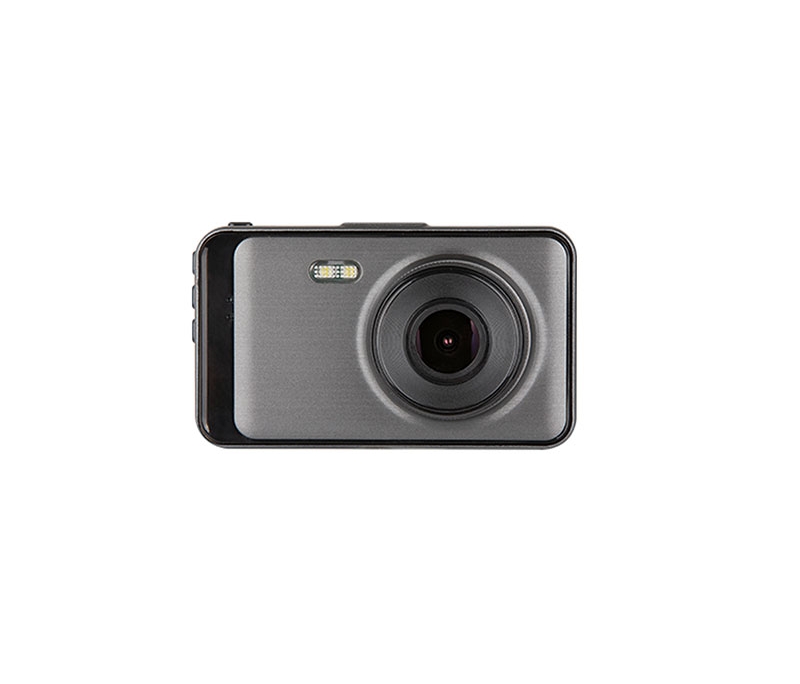

SD204 card type stylish universal dash camera

Product Features

With the Luview SD204 card type dash cam, you can have a universal car dash camera with sleek design and superior craftsmanship. Boasting Chinese, English, French and German menu languages to accommodate different countries and regions’ needs, it provides extraordinary coverage of your driving journey – from video recording to sound capture – all while tracking speed limits or providing evidence for traffic accidents along the way! With this device acting as an essential ‘car black box’, you’ll get peace of mind both on-and-off road.

  • 150°Wide field of view
  • H.264 encoding
  • GPS track playback
  • High and low temperature resistance

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV System NTSC/PAL
Effective Pixels 968(H)*488(V)
Sensing Area 6.2um*7.4um
Sync. System Internal
Resolution 700 TVL
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone Optional
IR LED Qty 6PCS
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Power Supply DC12V
Lens 2.3mm
Lens Angle 150°
Current Drain 65±5mA
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
