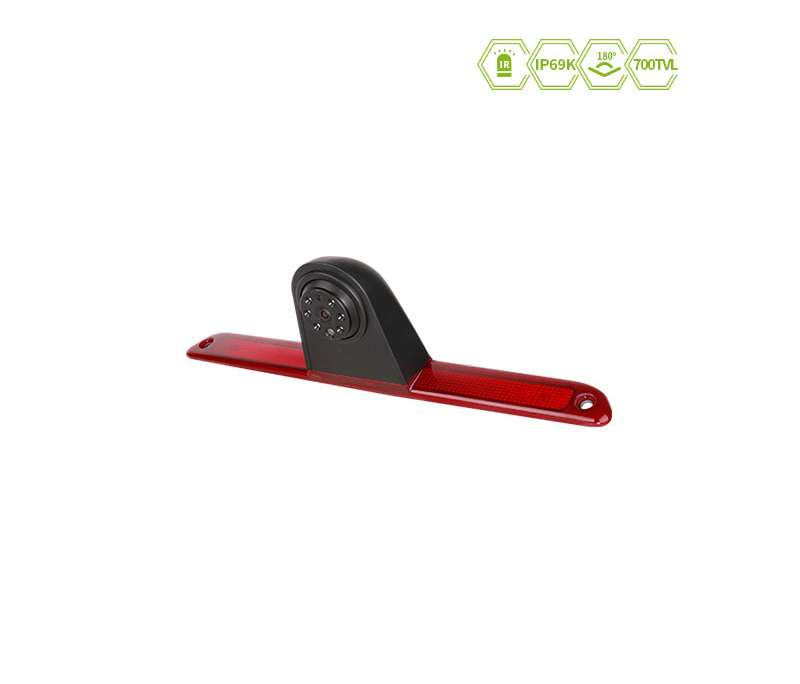

JY-680 third brake light camera for Mercedes Benz Sprinter 2007-2022, Freightliner Sprinter 2001-2021 & VW Crafter 2007-2016
Product Features
The Luview JY-680 third brake light camera will keep you safe by giving an expansive view of your surroundings while reversing. At night it’s especially helpful with its six built-in IR LED lights providing clear images in the dark – all without compromising on design as this compact and easy to install device seamlessly blends into Mercedes Benz Sprinter 2007-2022, Freightliner Sprinter 2001–2021 or VW Crafter 2007–2016 cars’ original look.
- IP68
- bracket material:plastic
- Support mirror switch
- Supporting ICR switching
- High performance 2Megapixel sensor of SONY
- With night vision function, infrared distance is 10m
Technical Specifications
| Image Device | 1/2.9 SONY |
| TV System | NTSC/PAL |
| Effective Pixels | 1920(H)*1080(V) |
| Sensing Area | 2.8μm(H)*2.8μm(V) |
| Sync. System | Internal |
| Resolution | 200W |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 122° |
| Current Drain | 70±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
