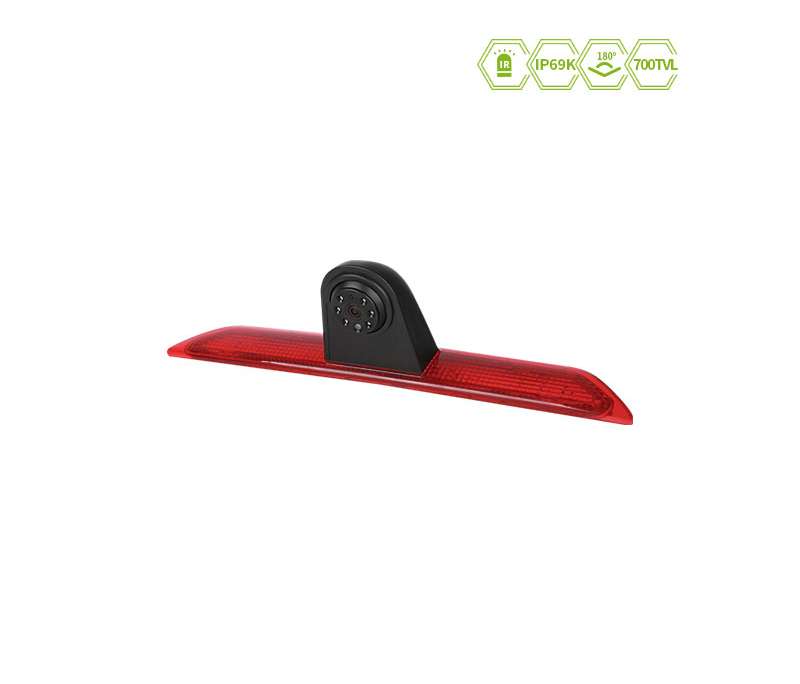

JY-682 third brake light camera for 2014-2019 Ford Transit
Product Features
The Luview JY-682 third brake light camera offers top notch protection for 2014-2019 Ford Transit transport trucks with its waterproof, fog proof, and night vision capabilities. Making installation a breeze is the full suite of included accessories: extension cable, adapter, power cable, RCA adapter and dustproof cotton—so your rig won’t miss out on this essential safety feature!
- IP68
- bracket material:plastic
- Support mirror switch and scale control function
- With night vision function, infrared distance is 10m
Technical Specifications
| Image Device | 1/3 CMOS |
| TV System | NTSC/PAL |
| Effective Pixels | 1280(H)*960(V) |
| Sensing Area | 3.75μm |
| Sync. System | Internal |
| Resolution | 130W |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.6mm |
| Lens Angle | 123° |
| Current Drain | 70±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
