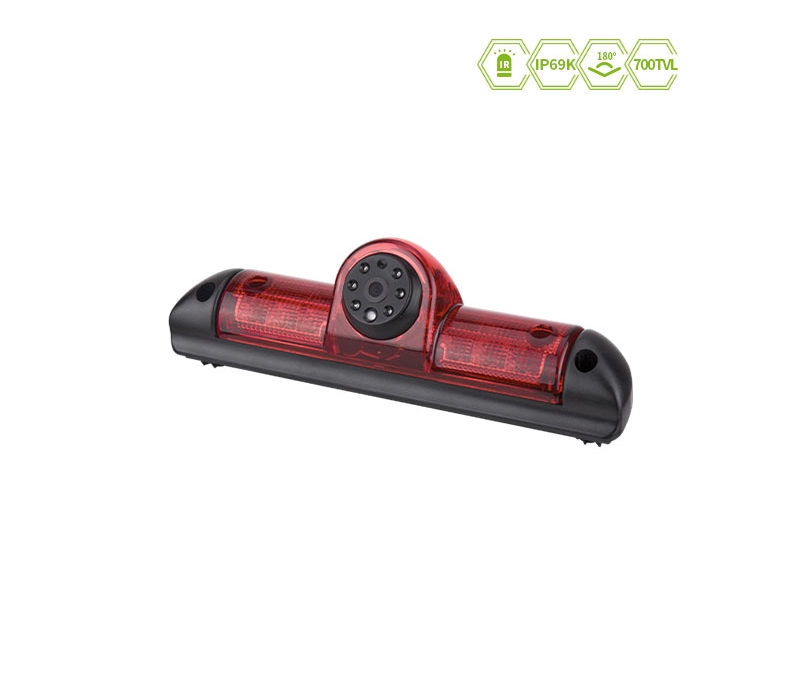

JY-684-2 third brake light camera for 2006-2022 Peugeot Boxer, Fiat Ducato, Citroen Jumper, Citroen Relay & 2021-2022 Vauxhall Movano, Opel Movano
Product Features
Enhance your safety and visibility with the Luview JY-684-2 third brake light camera. Compatible with multiple models of 2006 – 2022 Peugeot Boxer, Fiat Ducato, Citroen Jumper & Relay as well as 2021 – 2022 Vauxhall Movano and Opel Movano vehicles it provides an optimal view into otherwise blind areas. Its clear picture quality is due to its CMOS chip while its waterproof dustproof construction makes it anti-fog and shock resistant too! Never worry about night vision again – the perfect solution for on road security!
- IP68
- Support mirror switch
- Supporting ICR switching
- Bracket material: plastic
- High performance 2Megapixel sensor of SONY
- With night vision function, infrared distance is 10 meters .
Technical Specifications
| Image Sensor | 1/3 CMOS PC1058K |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)×592(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.6mm |
| Lens Angle | 130° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
