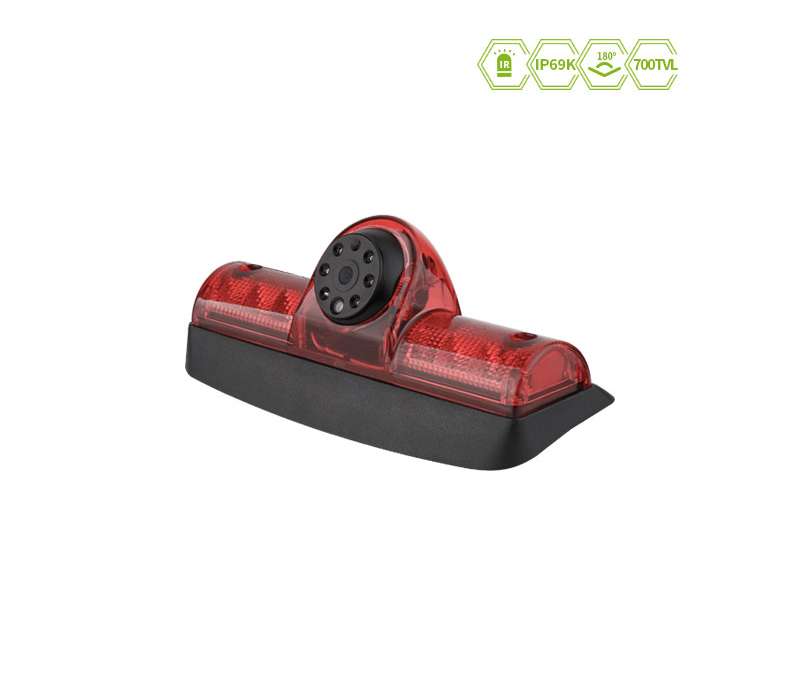

JY-684-3 third brake light camera for Nissan NV1500, NV2500, NV3500 and 2009-2022 Cargo Van
Product Features
With the Luview JY-684-3 third brake light camera, you’ll know what’s lurking in even the darkest corners of night. Boasting a premium 2MP HD lens and six built-in infrared LED lights for crystal clear vision up to 10 meters away, this high quality rear installation will be your dependable co-pilot on any journey – no matter how late it is! Perfectly sized for Nissan NV1500, NV2500, NV3500 and 2009-2022 Cargo Vans – drive safe knowing that with these extra eyes at your back you can keep flip nighttime into bright morning.
- IP68
- Support mirror switch
- Supporting ICR switching
- bracket material:plastic
- High performance 2Megapixel sensor of SONY
- With night vision function, infrared distance is 10m
Technical Specifications
| Image Sensor | 1/3 CMOS PC1058K |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)×592(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.6mm |
| Lens Angle | 130° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
