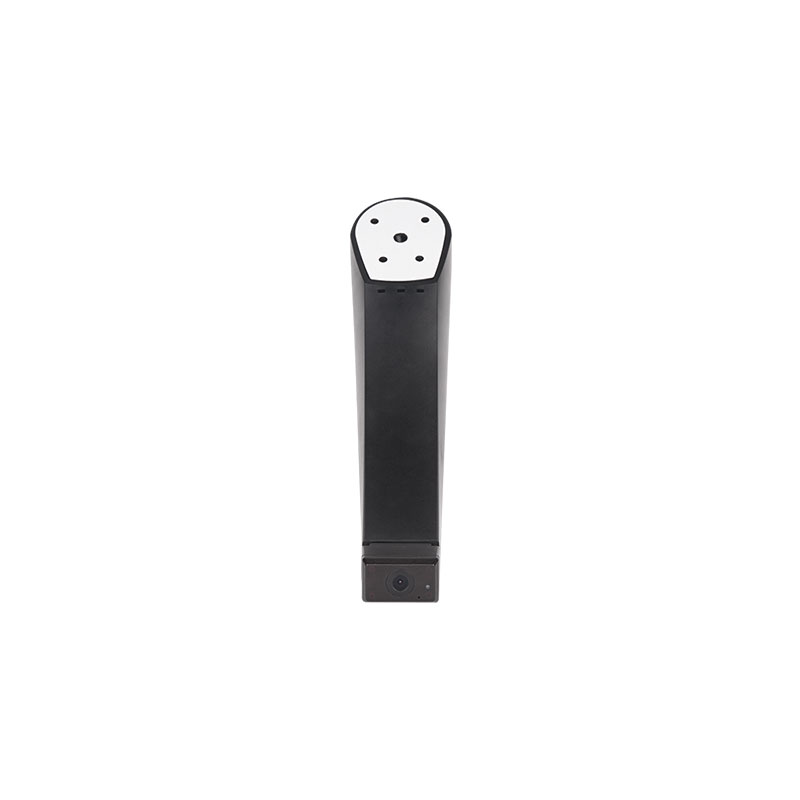

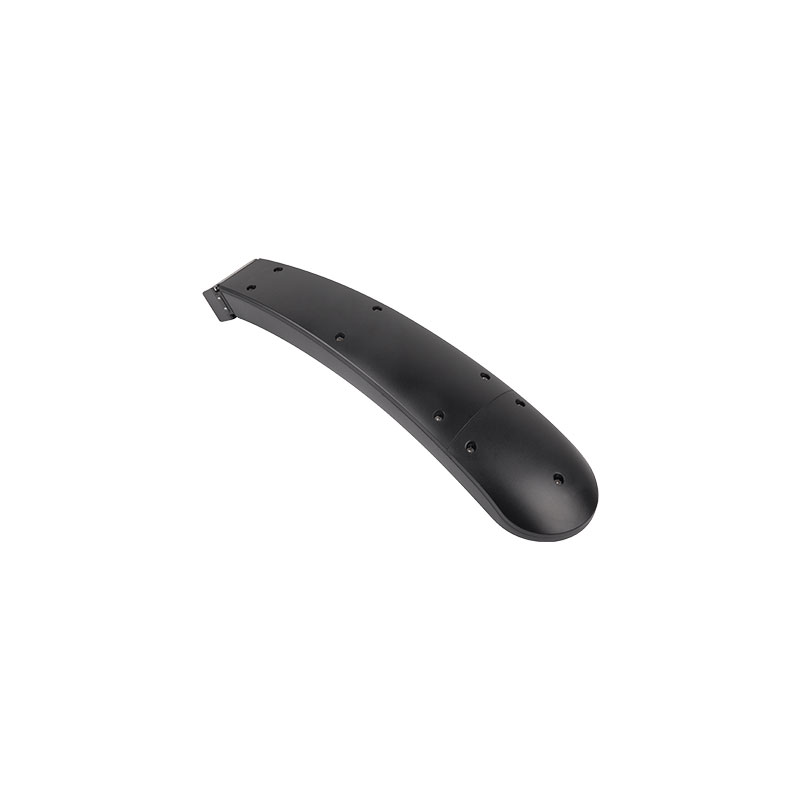

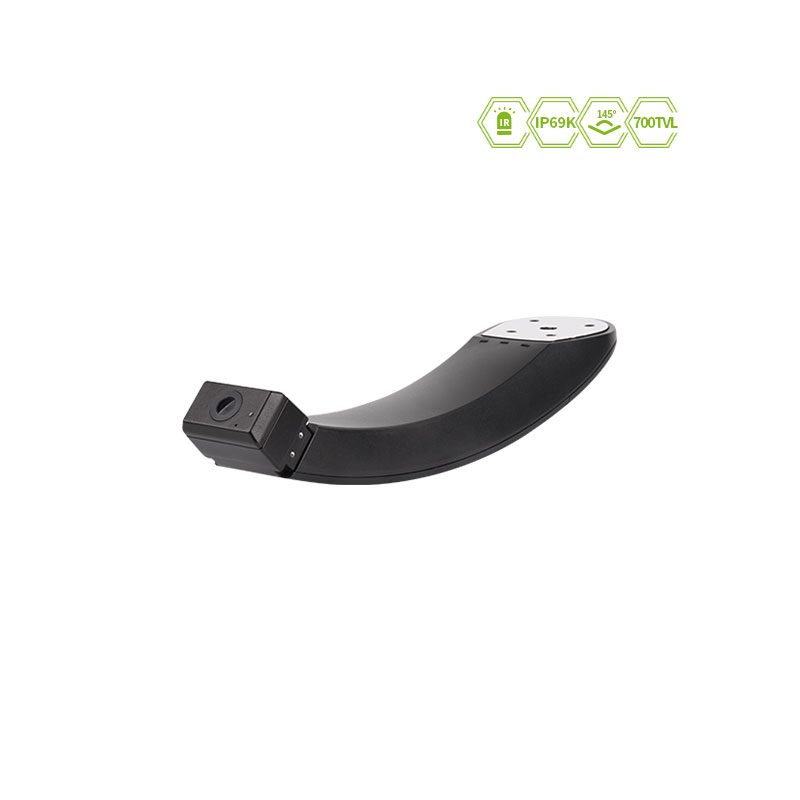

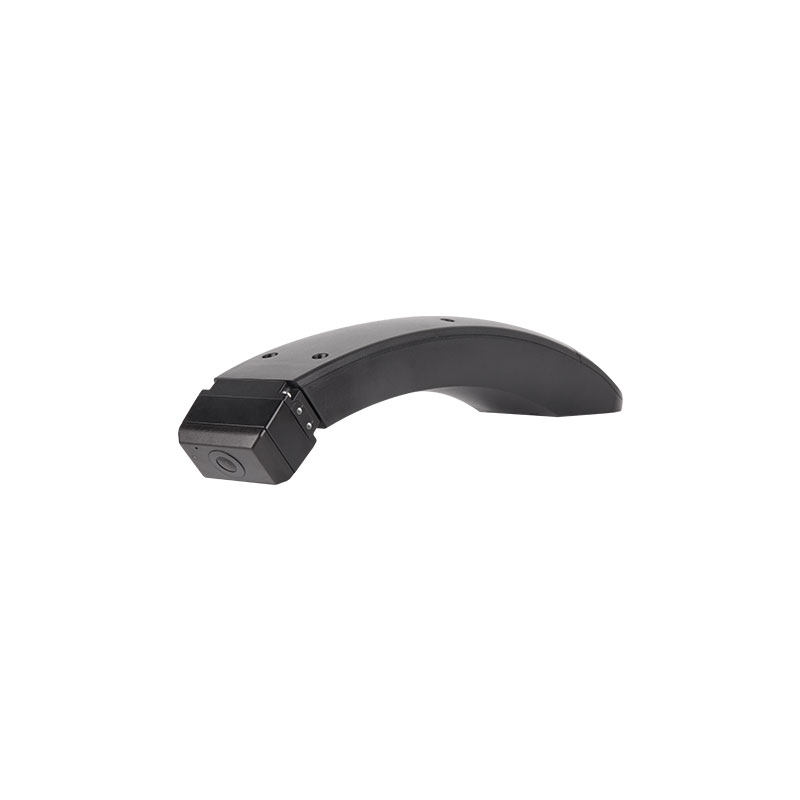

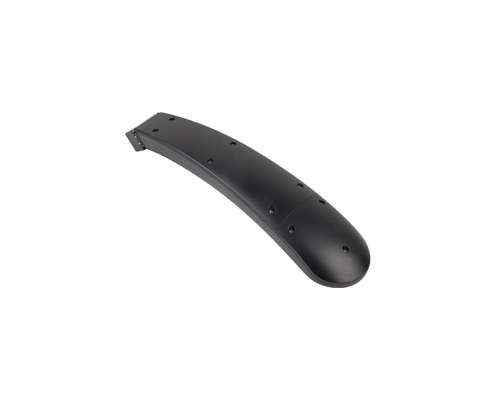

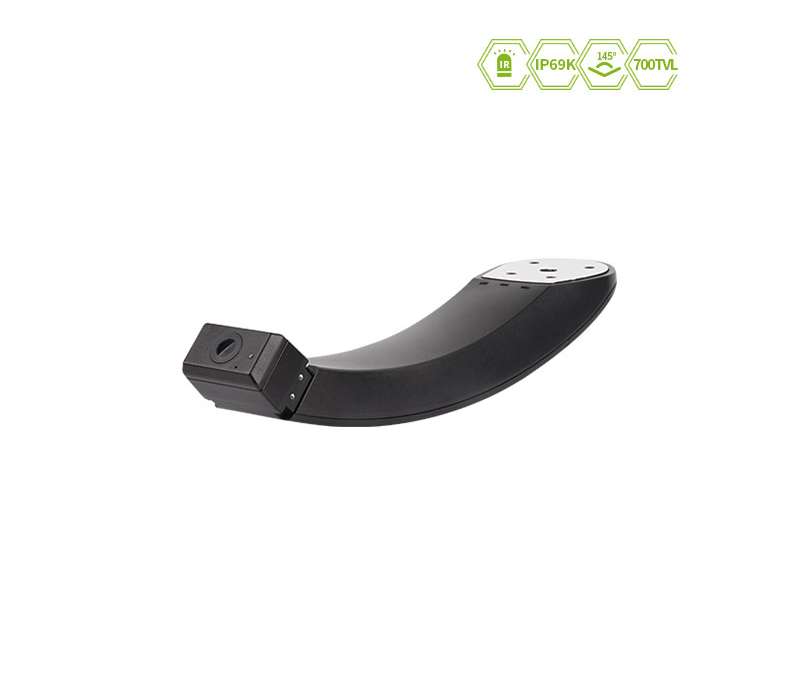

JY-686 brake light camera designed for 2013-2022 Ford Transit
Product Features
Upgrade your Ford Transit with the JY-686 brake light camera from Luview. It provides 700TVL analog high-definition video with a 1/3 CMOS sensor for clear visibility. The brake light camera has an IP69K waterproof rating, ensuring performance in harsh weather. Features like mirror and scale switch and night vision with infrared up to 6 meters enhance convenience and safety. Enjoy a more comfortable and reliable Ford Transit experience with the JY-686 brake light camera.
- Use 1/3CMOS sensor,support analog hd video 700TVL
- Waterproof grade IP69K
- Support mirror switching and ruler control functions
- With night vision function, infrared distance 6m
Technical Specifications
| Image Sensor | 1/3 CMOS PC1058K |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)×592(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 2PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 1.7mm |
| Lens Angle | 145° |
| Current Drain | Daytime current 50mA ± 5, night vision current 210mA ± 5 |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
