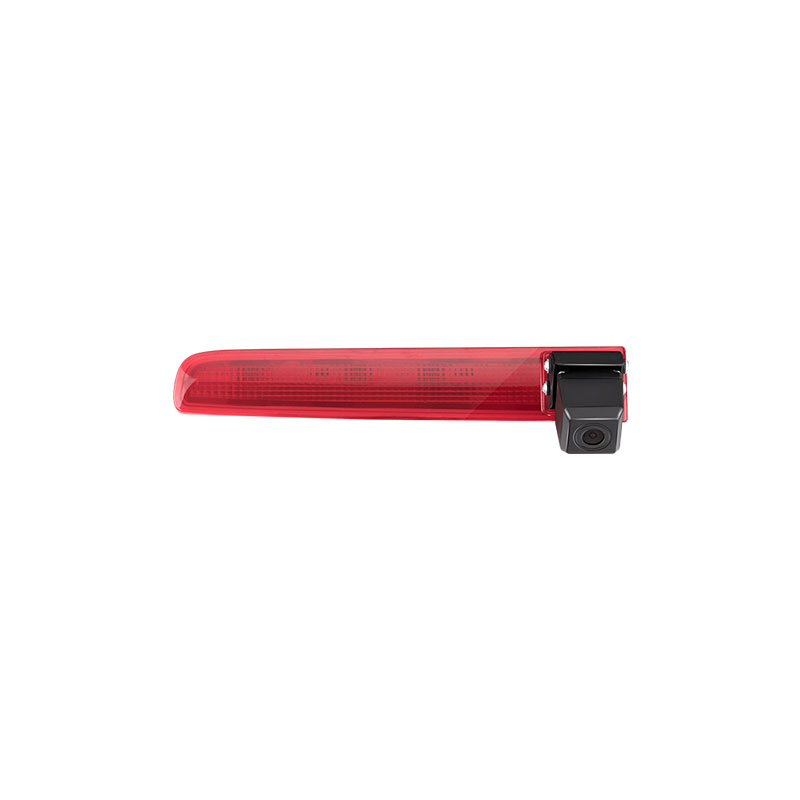

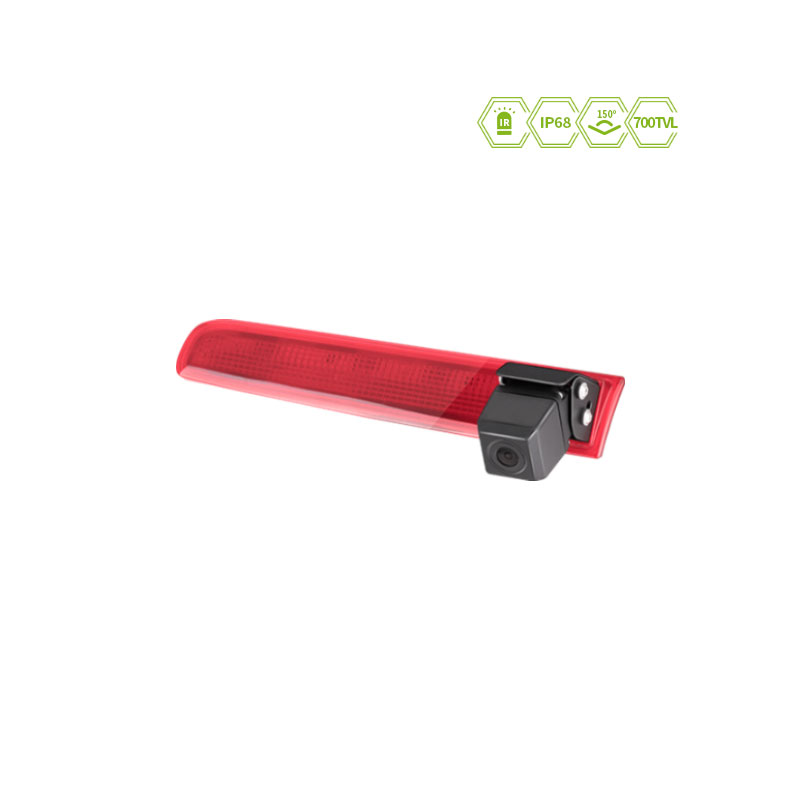

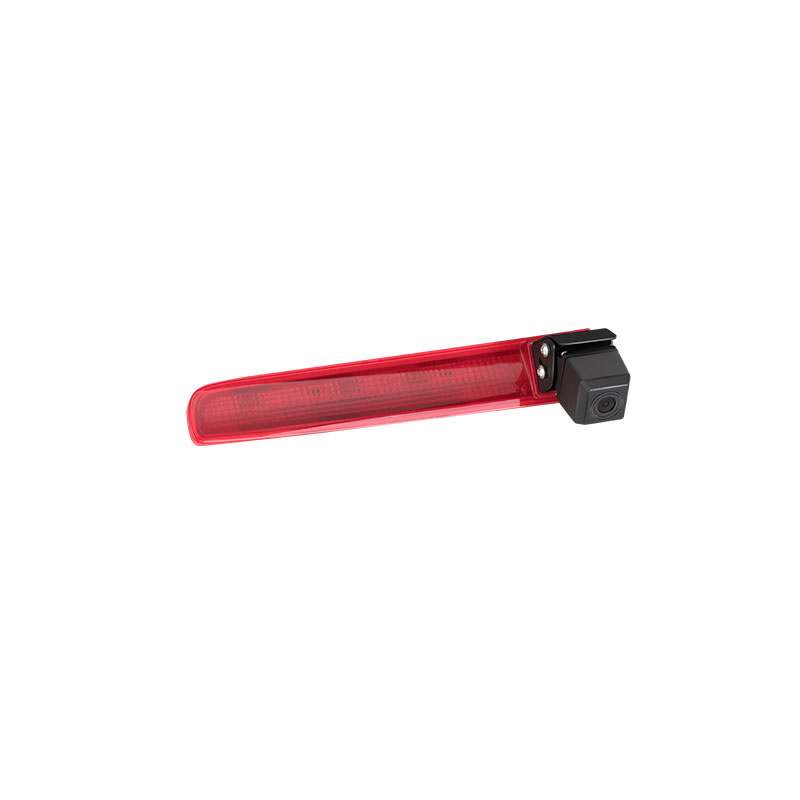

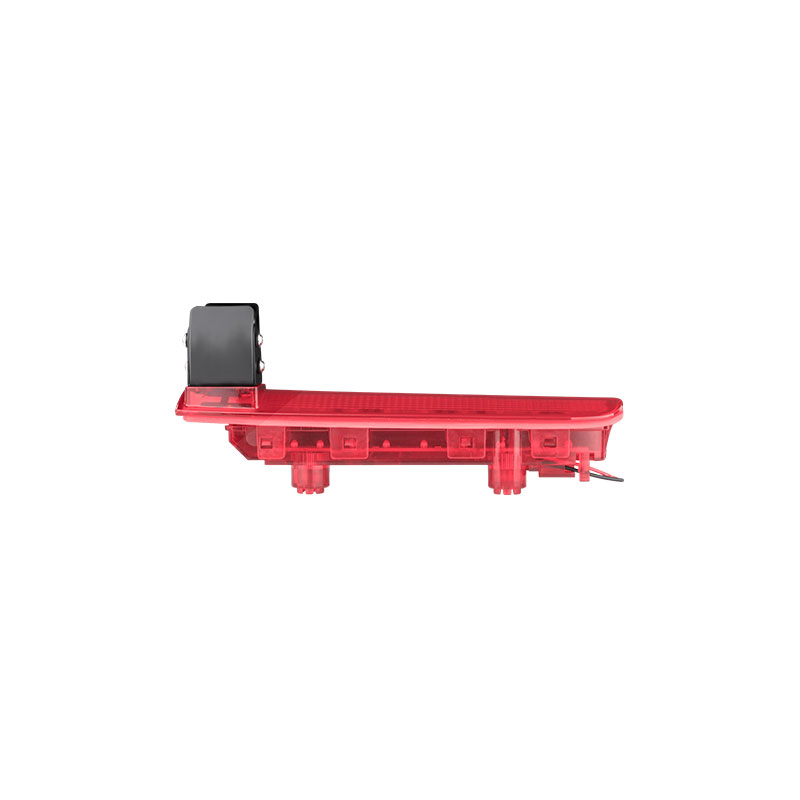

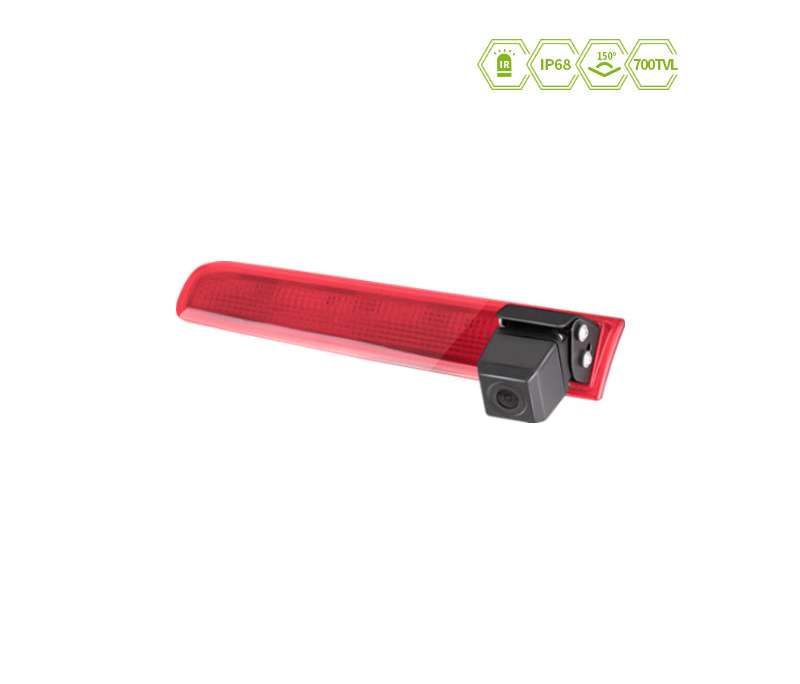

JY-696 third brake light camera for 2010-2023 Volkswagen VW Transporter T5 T6
Product Features
LUVIEW has designed and manufactured the JY-696, an unparalleled brake light camera for 2010-2023 Volkswagen VW Transporter T5 & T6 models. This superior product utilizes a 700TVL high-resolution CMOS sensor with 1.7mm lens to provide users with an incredible 150° ultra wide viewing angle which eliminates rear view blind spots. The protective level of IP69K ensures that no matter what mother nature throws at us, this device will have your back! Plus, it comes complete in one package – wires included; installation is noninvasive making setup quick and easy!
- Use 1/3CMOS sensor
- Waterproof grade IP68
- Support mirror switching
- support analog hd video 700TVL
- Support ruler control functions
Technical Specifications
| Image Device | 1/3CMOS PC 1058K |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)*592(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700W |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 1.7mm |
| Lens Angle | 150° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
