JY-F4 IP69K analog hd video 700 TVL backup camera for forklift
Product Features

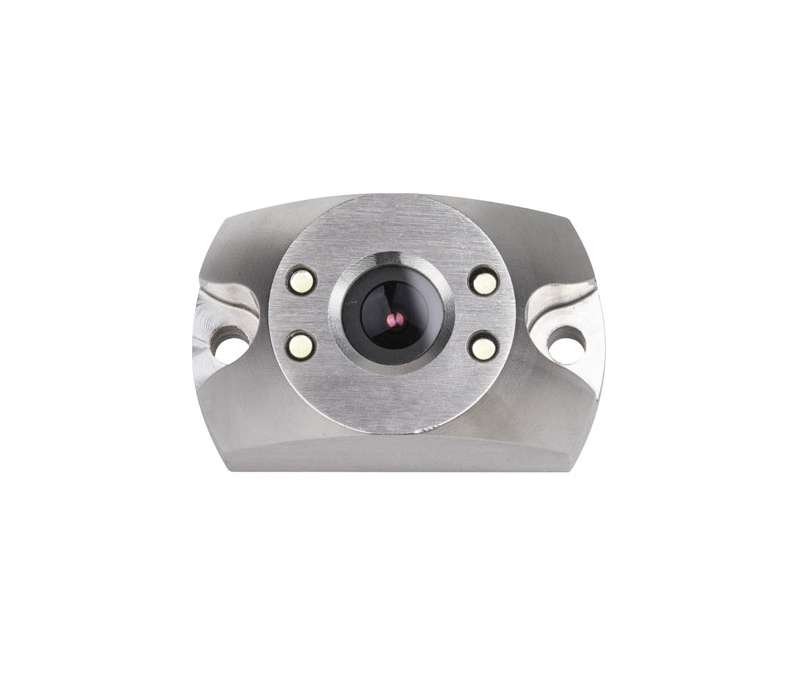

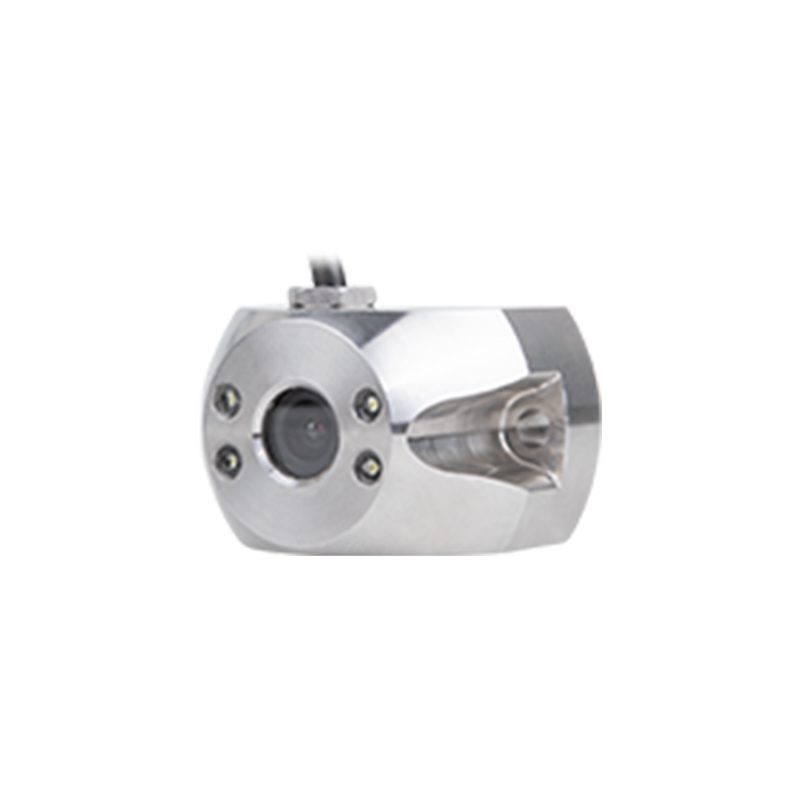

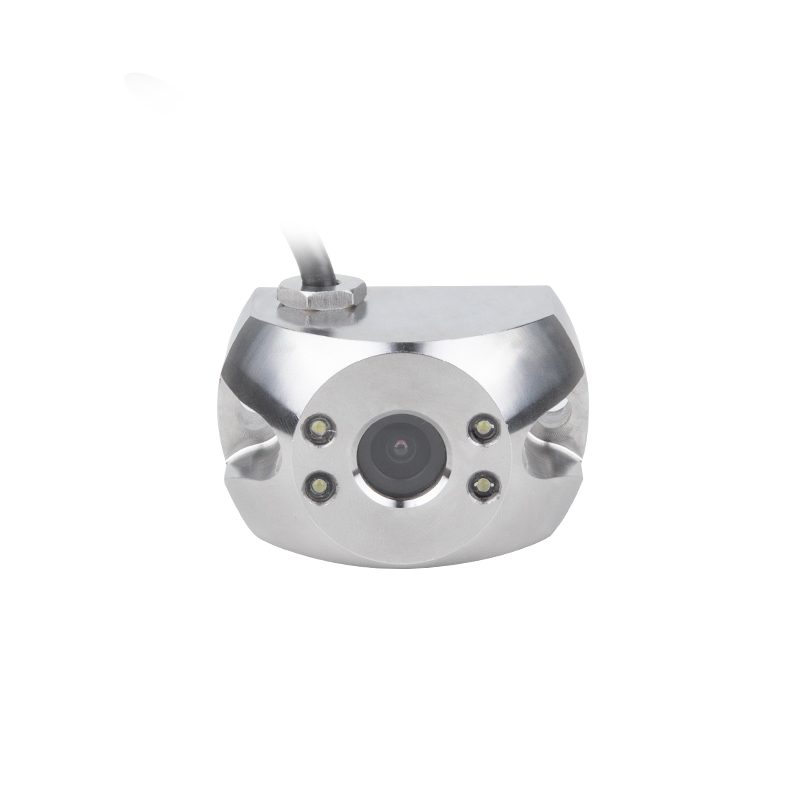

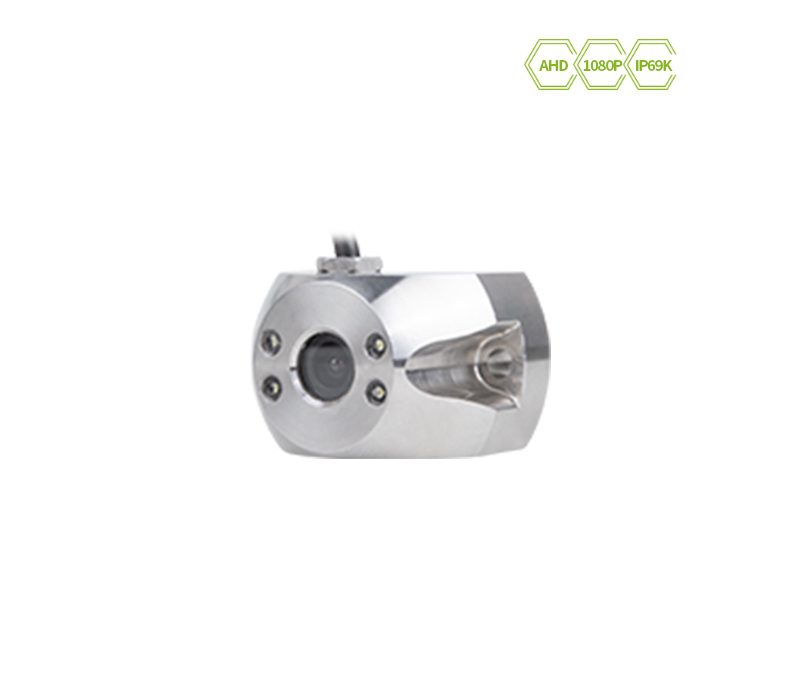

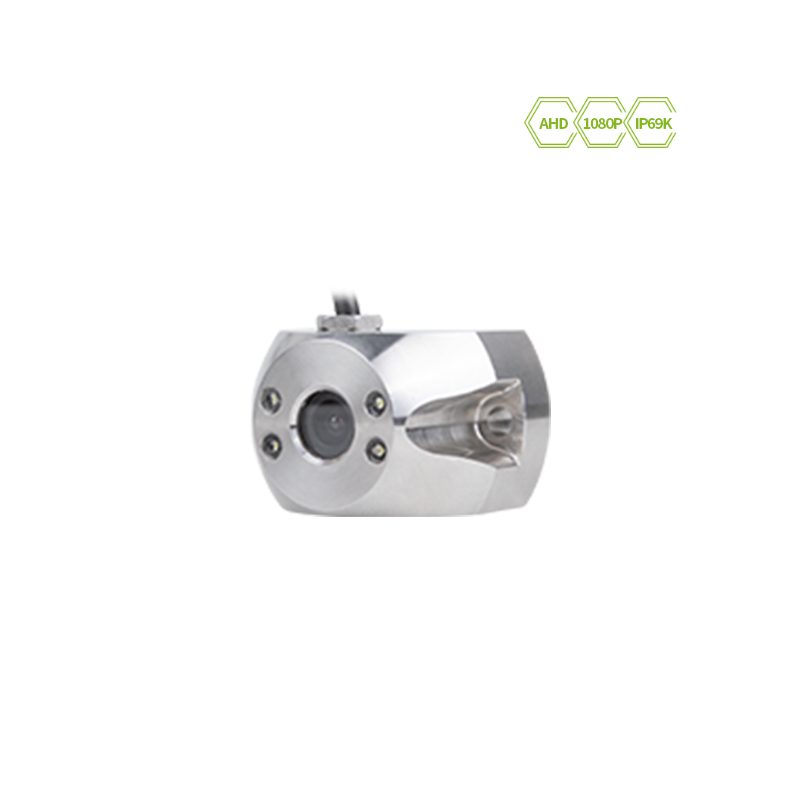

Luview JY-F4 IP69K analog hd video 700 TVL backup camera is designed for any forklifts, adopts 1/3 CMOS sensor, stainless steel housing and 4 pcs white LEDs, makes is sturdy, reliable and can placed anywhere on the forklift to help the forklift operator improve their working efficiency and safety.
- Use 1/3CMOS sensor,support analog hd video 700TVL
- Waterproof grade IP69K
- Support mirror switch
- Tape transfer function
Technical Specifications
| Image Sensor | 1/3 CMOS |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)*488(V) |
| Sensing Area | 4.880mm*3.670mm |
| Sync. System | Internal |
| Resolution | 700 TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | NO |
| IR LED Qty | white light 4 PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 3.6mm |
| Lens Angle | 83° |
| Current Drain | 50±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
