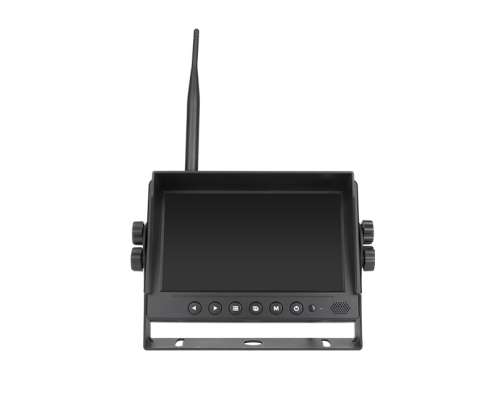

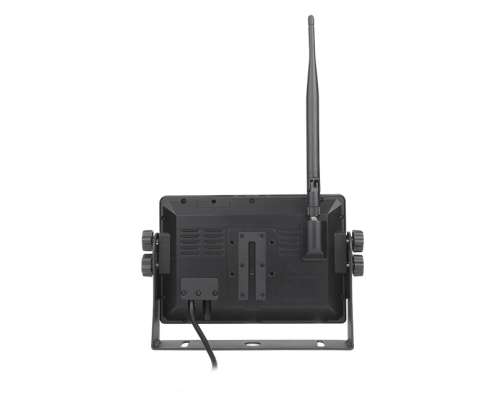

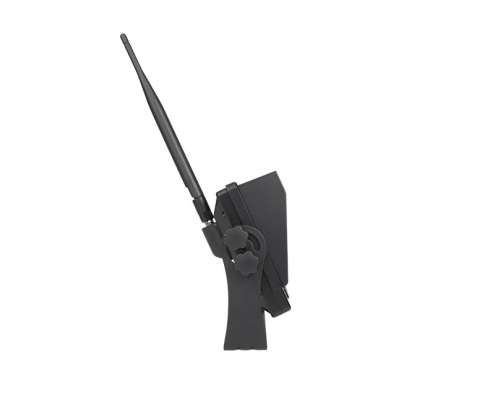

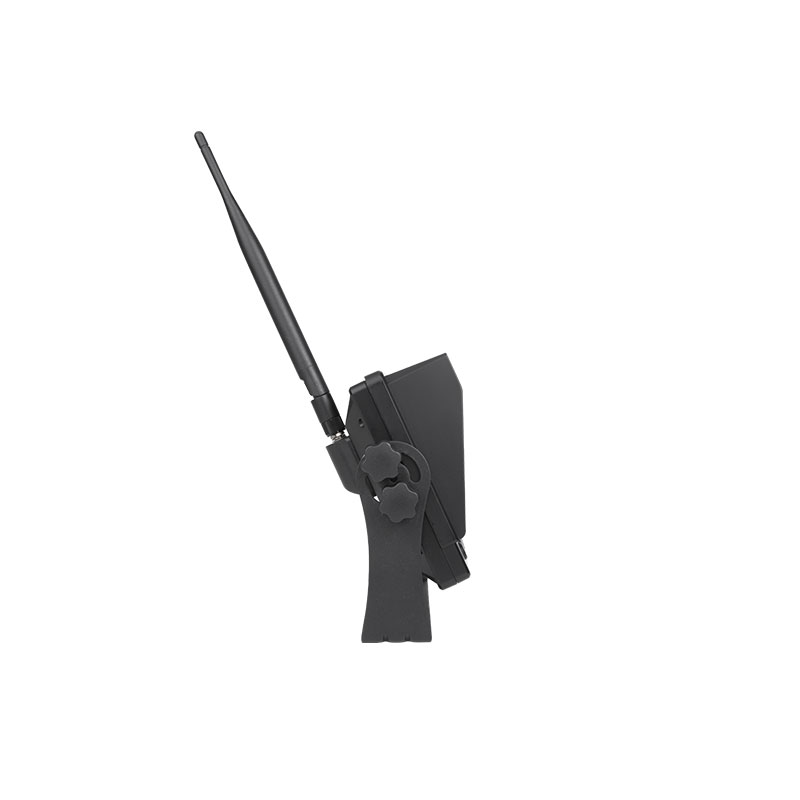

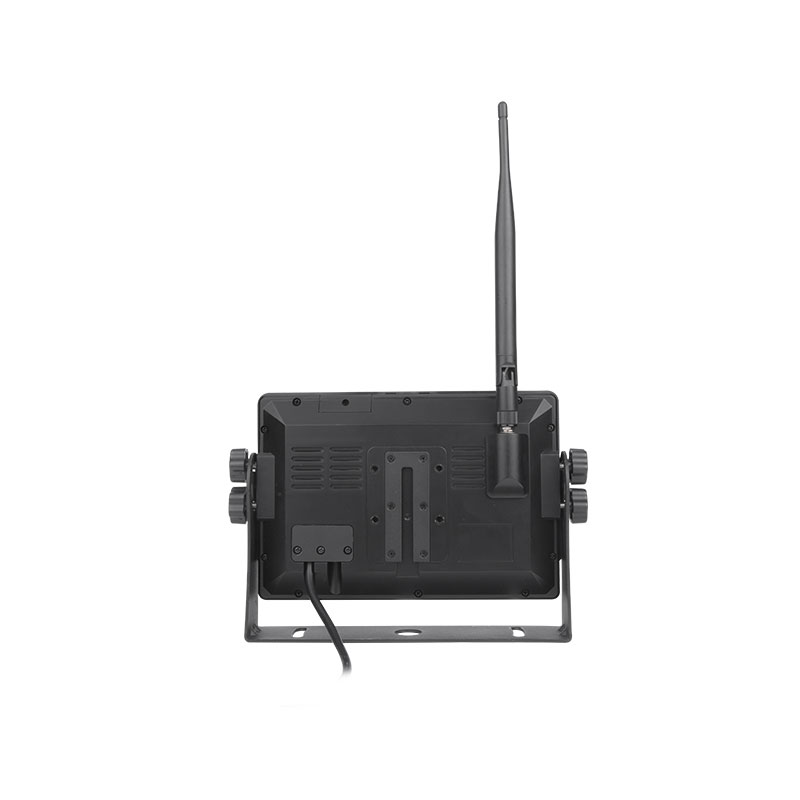

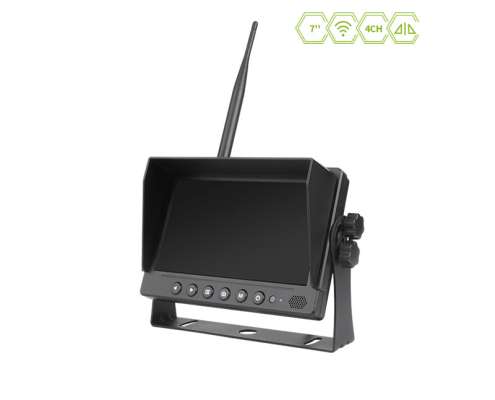

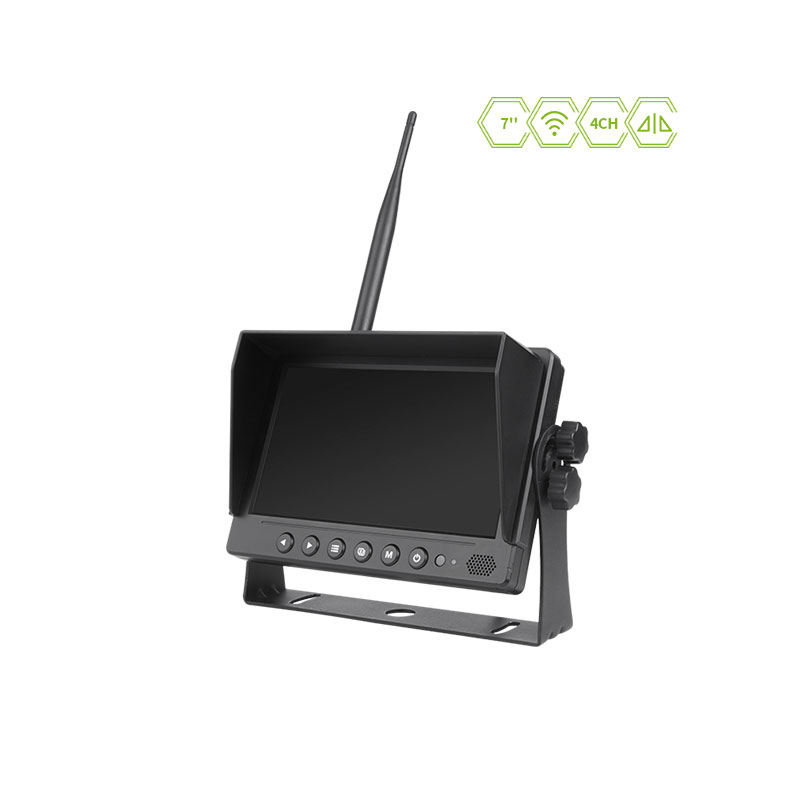

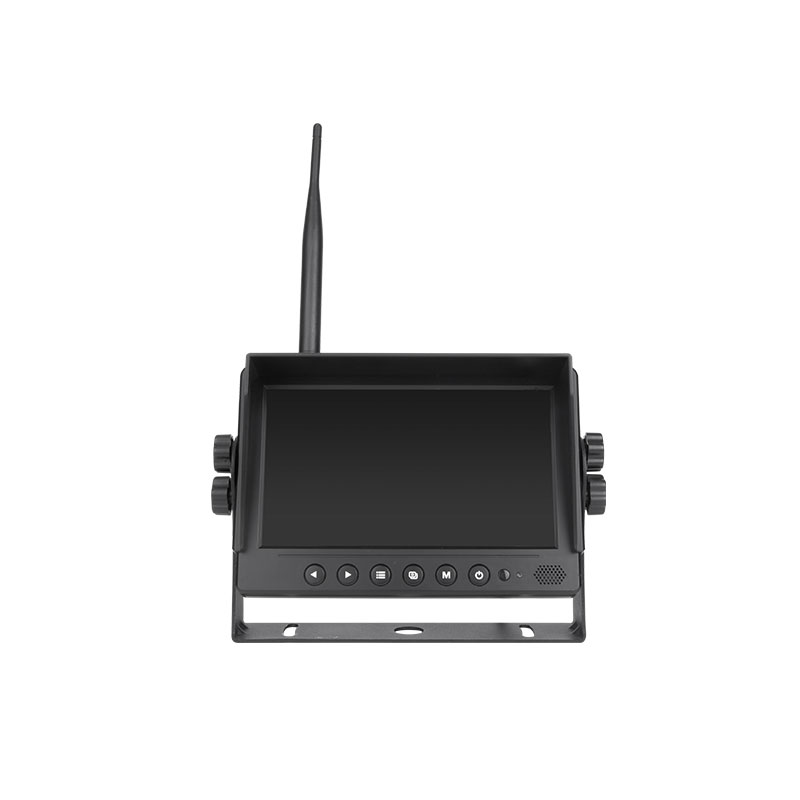

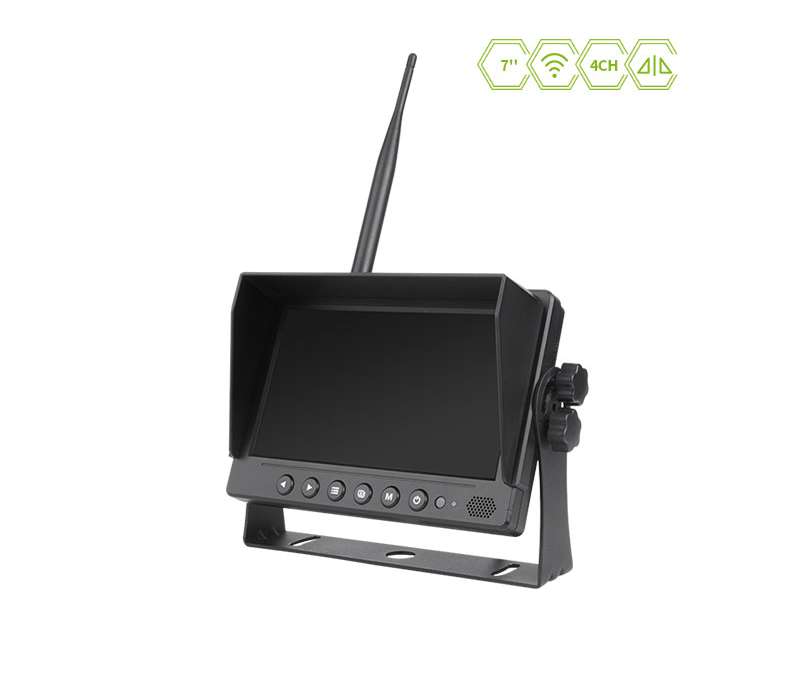

JY-M176W 7 Inch wireless 4 channel digital LCD monitor with recording and playback function
Product Features
Luview JY-M176W 7-inch wireless 4 channel digital LCD monitor is specifically designed for vehicle road safety. It features a remote control function for easy operation. The monitor is equipped with a built-in speaker, and the volume can be adjusted from the control panel or the remote control. It supports simultaneous video input from four cameras and optional audio input, complemented by a four-channel single-line trigger function to meet diverse monitoring needs. The brightness auto-adjustment function ensures optimal display quality, while the recording and playback functions capture important moments. With a wide voltage design (12~24V) and short-circuit protection, it is stable and reliable. Choose the JY-M176W for a safer and smarter driving experience!
- Multiple menu languages are available: English, French, German, Chinese, default English
- With remote control function
- The display has a speaker, and the volume can be adjusted from the control panel or remote control
- Supports simultaneous video input from four cameras
- Support 4 simultaneous camera audio inputs (optional)
- Supports four single-channel wire trigger
- With automatic brightness adjustment function
- Video recording and playback function
- Wide voltage design, working power range 12 ~ 24V, with power short circuit protection function
Technical Specifications
Screen Size | 7''(Digital) TFT LCD |
Brtghtness | 650cd/m'(typ) |
Resolution | 1024(H)* R.G.B * 600(V) |
System | PAL/NTSC/AUTO |
Contrast | 700:1 |
Visual Scope | 154.21(H) × 85.92(V) mm |
Image Setting | Brightness, chroma, contrast, saturation |
Recording format | avi |
Maximum memory support | 256G |
Video format/td> | CVBS\AHD(1080P) |
Mirror flip function | Non-mirror, mirror, flip, mirror flip |
Video channel | Four video inputs |
Drive-by-wire trigger channel | Four single-channel triggers are supported |
Power Supply | 12V,≥3.8W |
Operating Temperature | -20℃ to +60℃ |
Storage Temperature | -25℃ to +70℃ |
