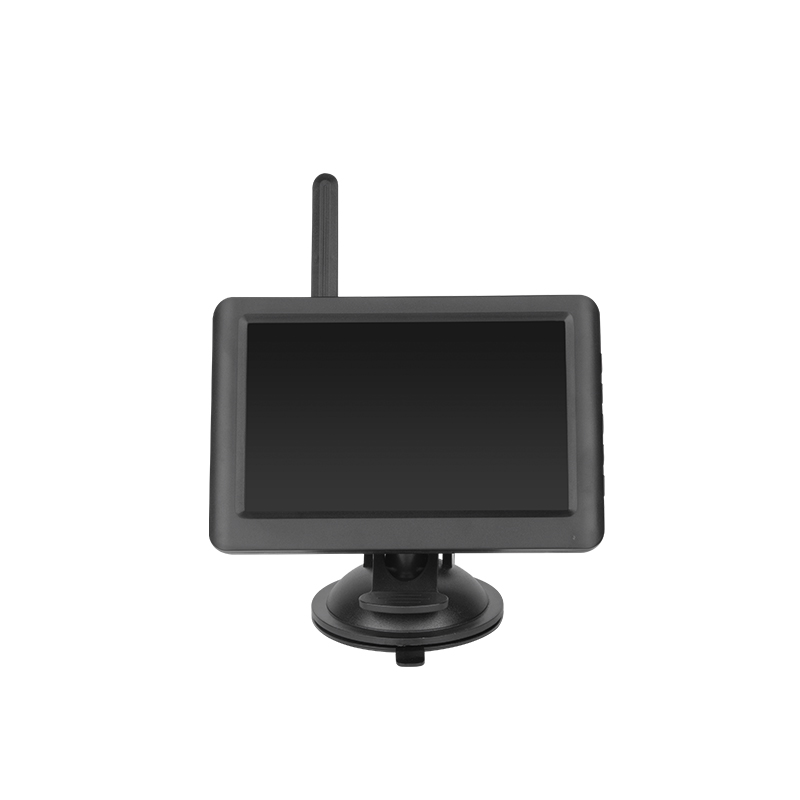

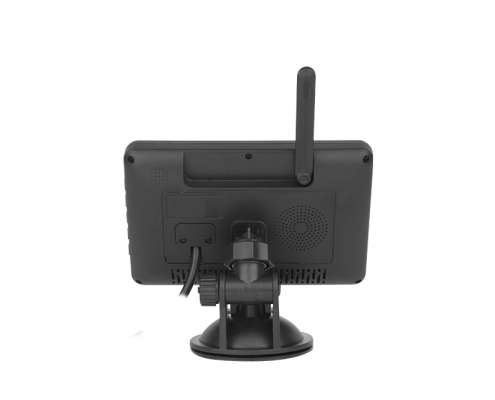

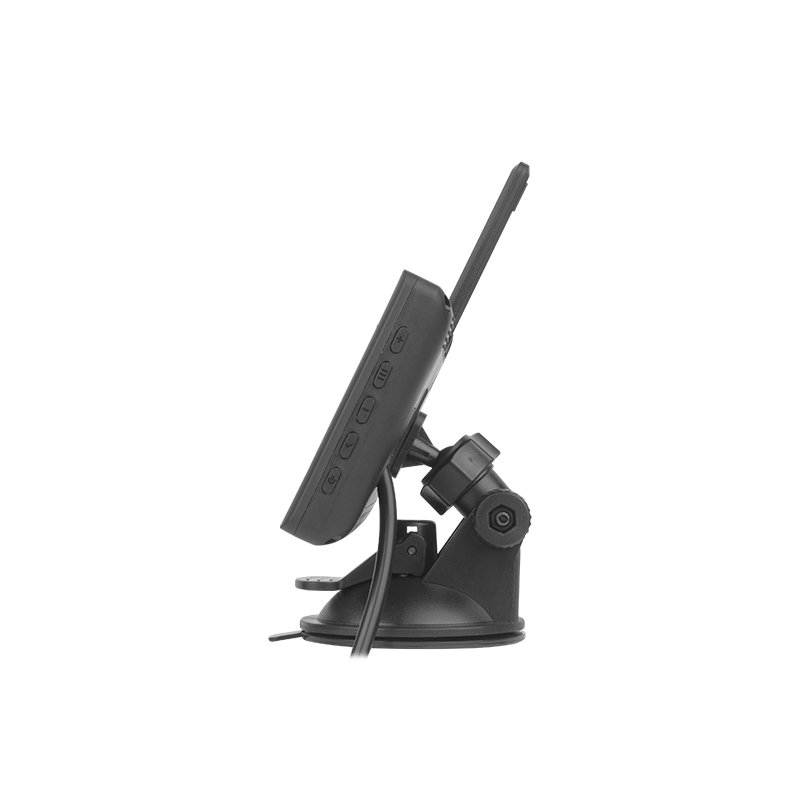

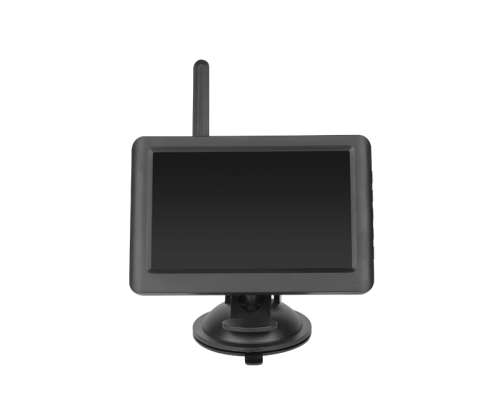

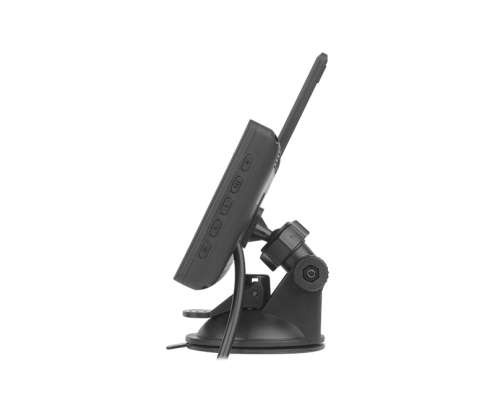

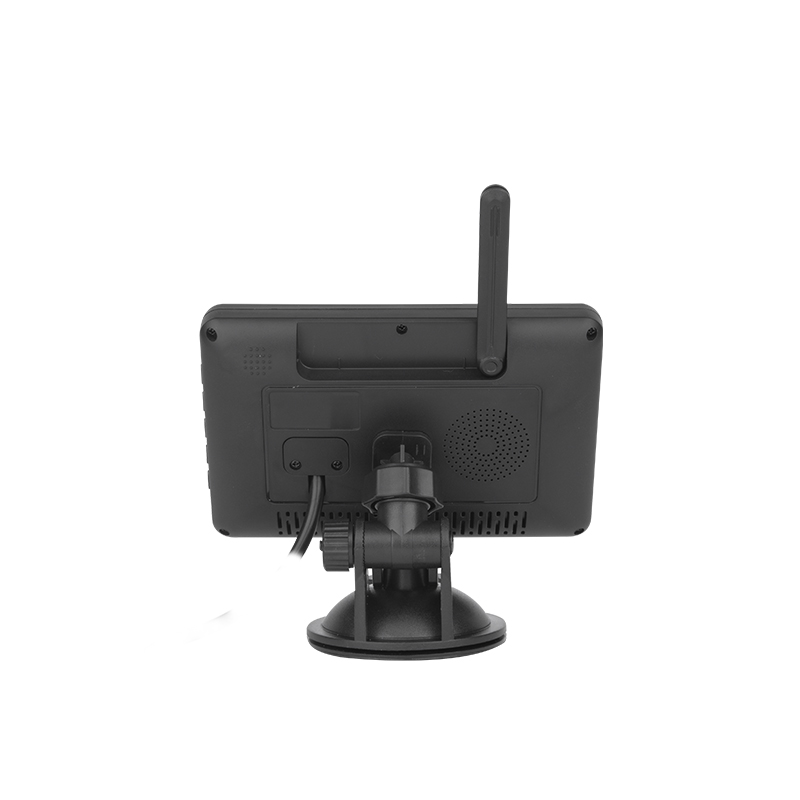

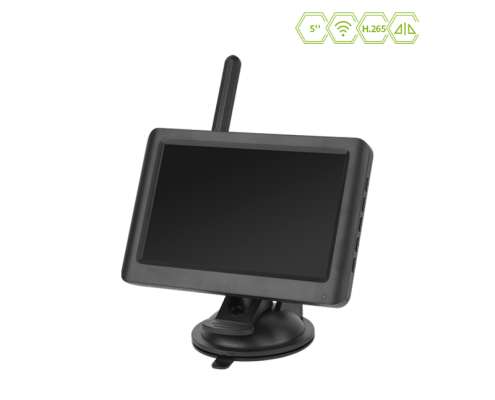

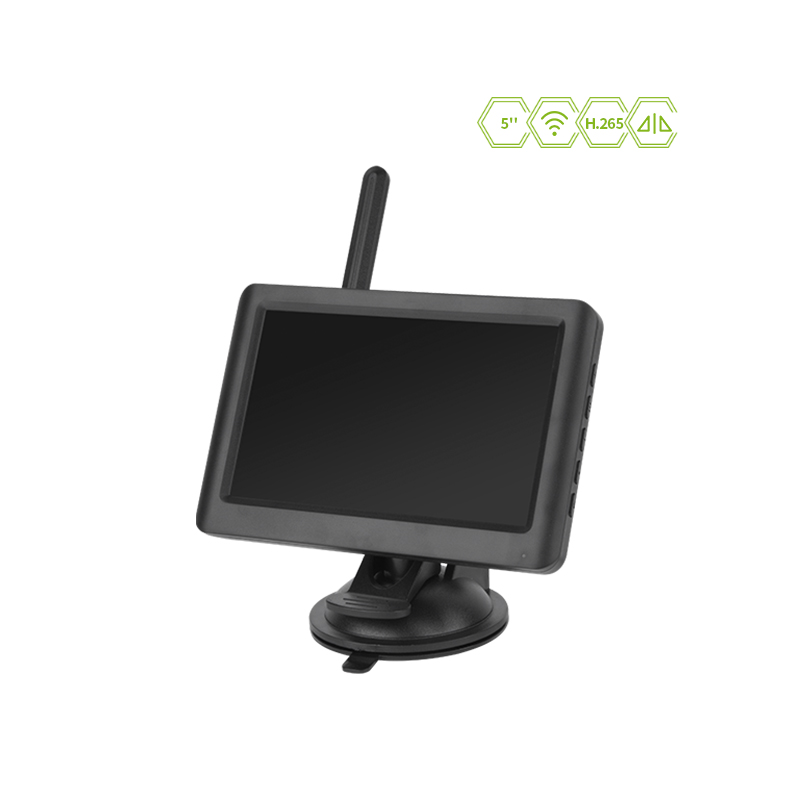

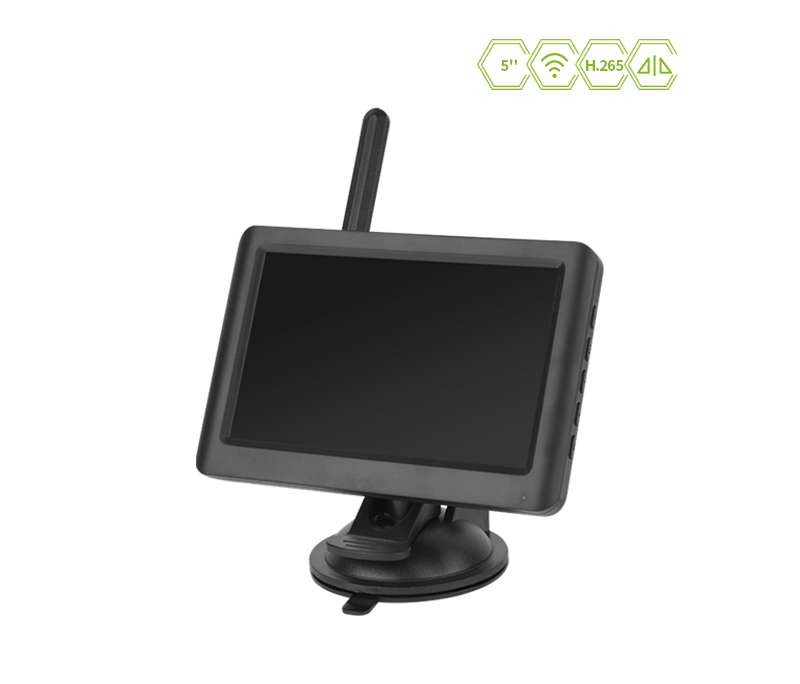

JY-M570W 5 inch wireless split screen rear view monitor
Product Features
The Luview 5-inch wireless split-screen rear view monitor effectively addresses blind spots during driving and reversing. The dual camera video input feature allows simultaneous connection of two cameras, providing split-screen and single-channel displays, enabling real-time monitoring of the vehicle’s surroundings to avoid accidents caused by limited visibility. The image flip function for up and down and mirroring for left and right ensure the best viewing angle, adapting to various installation needs. With a wide power supply range of 9~32V, the monitor is suitable for various vehicle types and easy to install.
- 12 menu languages: simplified Chinese, English, Japanese, Dutch, Finnish, Korean, Russian, Portuguese, Spanish, Italian, German and French.
- Support simultaneous video input from two cameras, one split screen and two single-channel displays.
- The image can be flipped up and down for each channel and mirrored left and right.
- The working power supply range is 9~32V
Technical Specifications
| Screen Size | 5"/5：3 |
| Resolution | 800 RGB（H）*480(V) |
| TV System | PAL/NTSC |
| Brightness | 600cd/㎡ |
| Contrast | 500:1 |
| Active Area | 108.00(H) × 64.80(V)mm |
| Viewing Angle | Left/right/up/down 70°/50°/70°/70° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | CVBS |
| Mirror Flip Function | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Two channel video input |
| Ruler Function | 2-way ruler |
| Power Supply | 9-32V，DC≤3.5W |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
