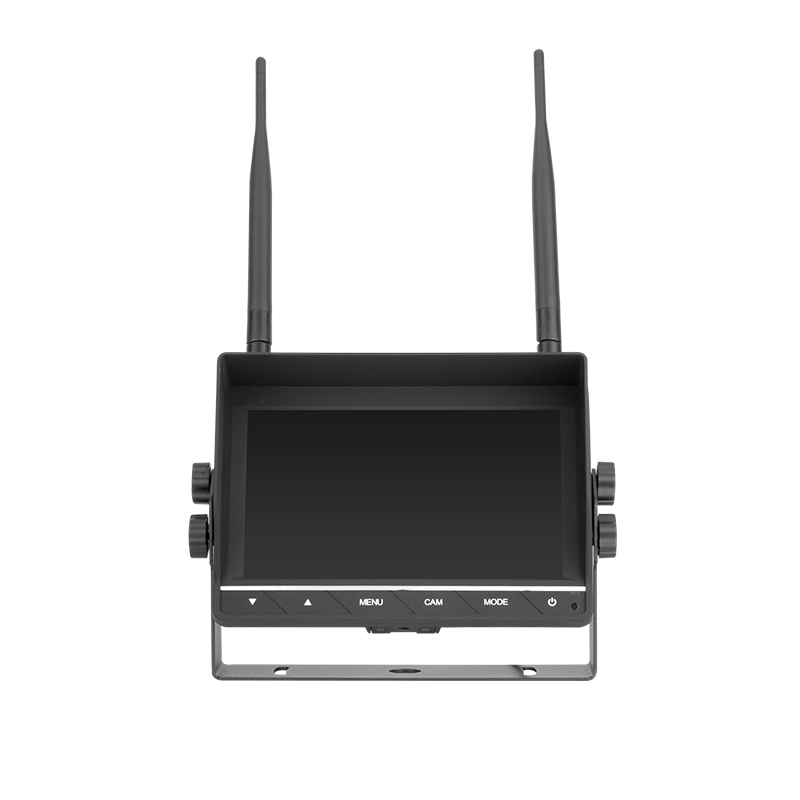

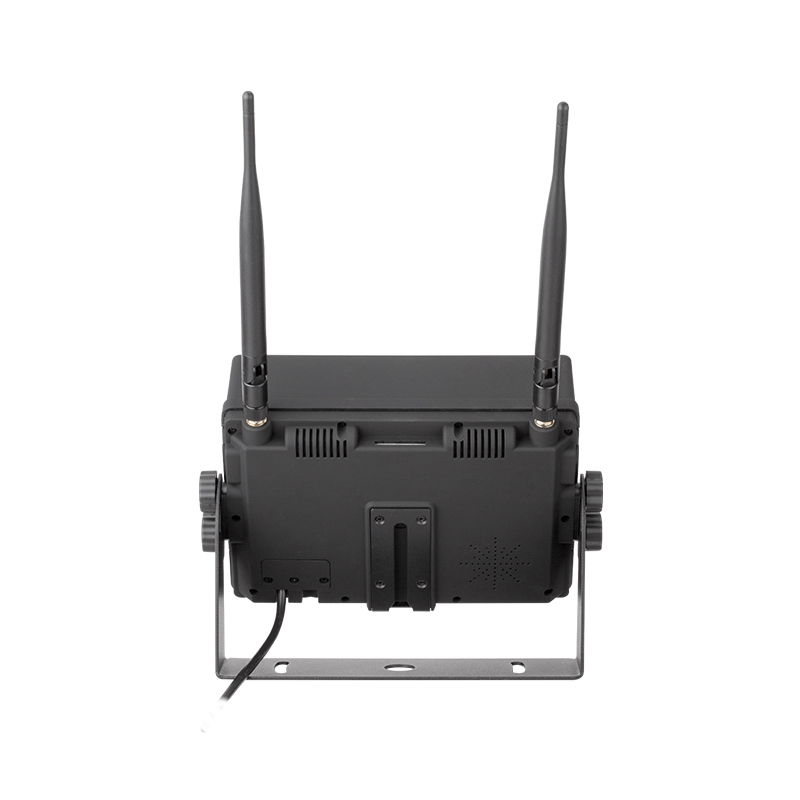

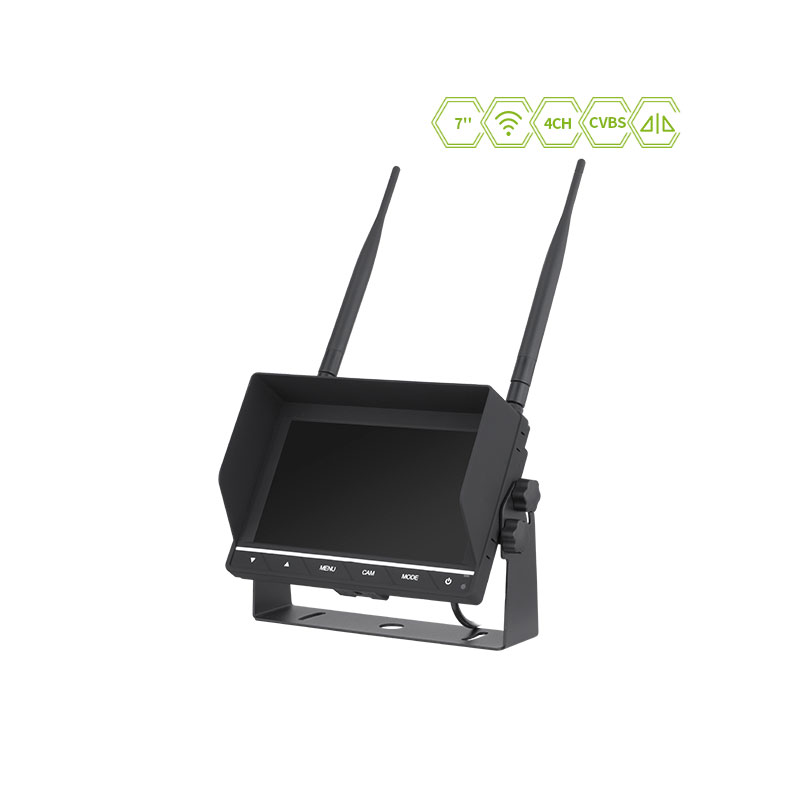

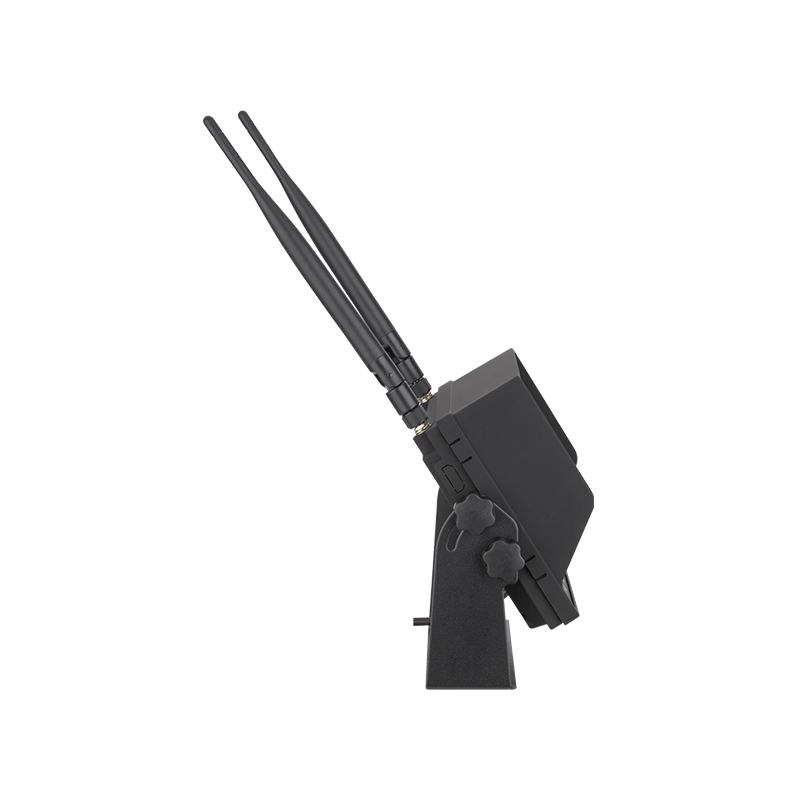

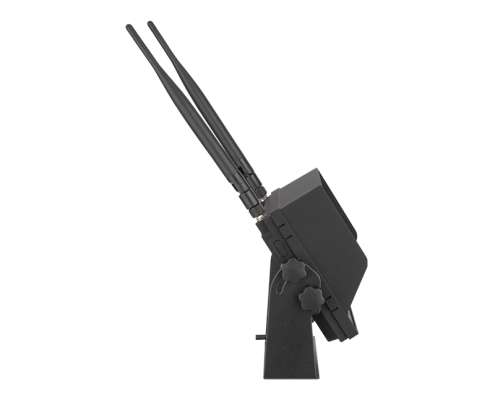

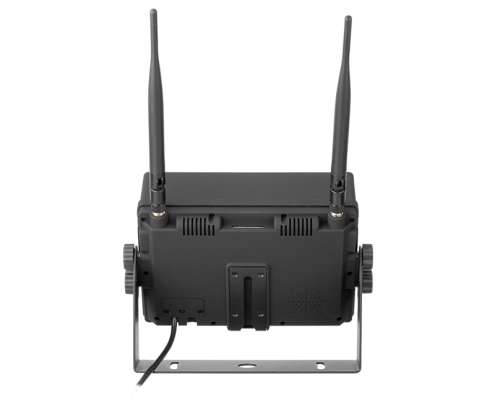

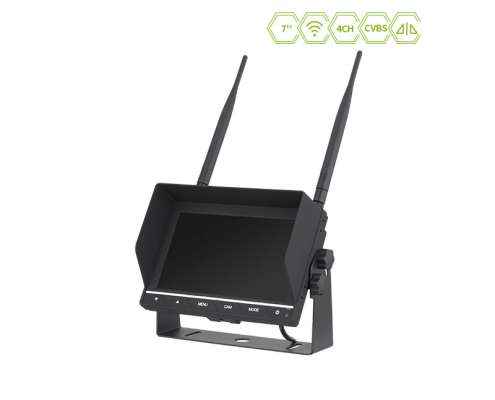

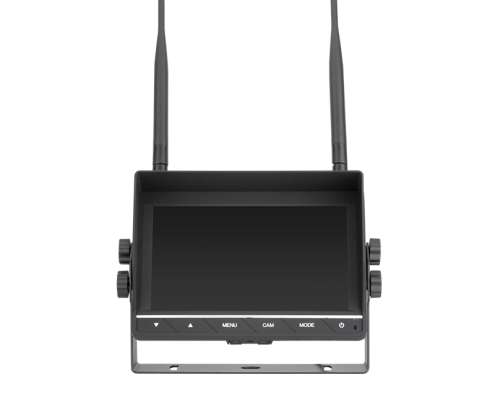

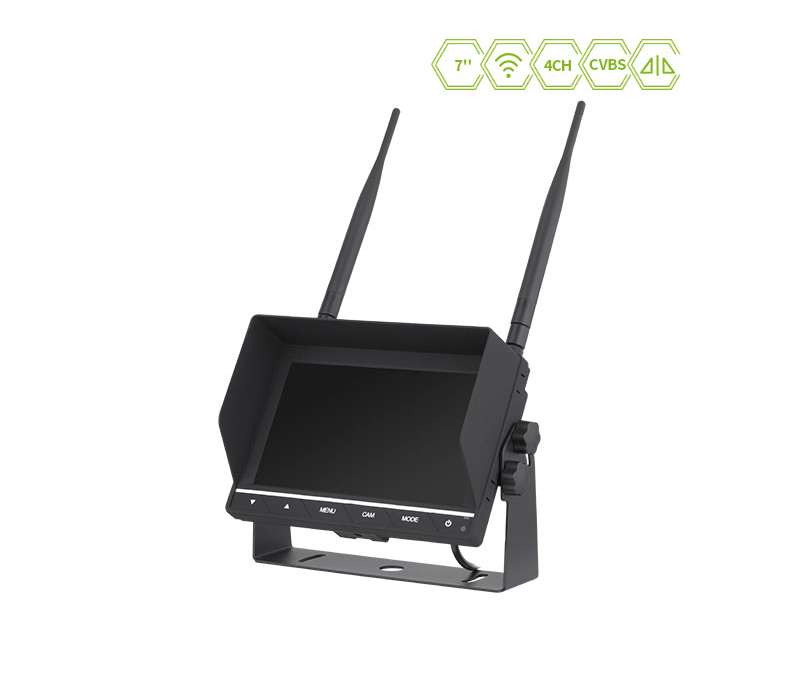

JY-M745W 7 inch wireless lcd monitor with two scale ruler & automatic ruler switch
Product Features
The Luview JY-M745W 7 inch LCD monitor is the perfect way to easily access wireless video messages. Its sturdy construction and clear picture make it ideal for any vehicle – from cars, trucks and lorries to excavators – as a convenient reversing imaging system when paired with a quality wireless backup camera.
- With speakers
- With remote control function
- Multi-languages of display available
- Supports video input from 4 cameras at the same time
- Support audio input from 4 camera at a time (optional)
- Images can be flipped up and down from left to right
- 12/24V，DC/<6W
Technical Specifications
| Screen Size | 7"/16：9 |
| Resolution | 800（W）* R.G.B * 480(H) |
| TV System | PAL/NTSC |
| Brightness | 300cd/㎡ |
| Contrast | 500:1 |
| Active Area | 154.08(W) × 85.92(H) mm |
| Viewing Angle | U/D:50°/70°,R/L:70°/70° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | CVBS |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Four channel video input, four audio optional |
| Reverse Function | Four way back (ruler setting function) |
| Reversing Delayed | 0-15s |
| Scale Function | Two scale ruler and automatic ruler switch |
| Power Supply | 12/24V，DC/<9W |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -25℃ to +70℃ |
