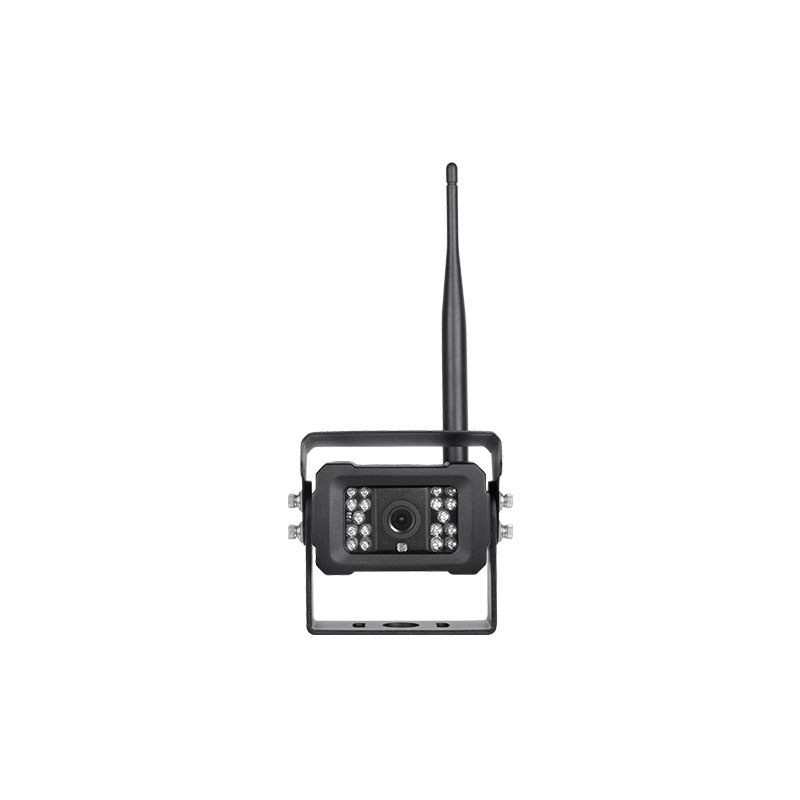

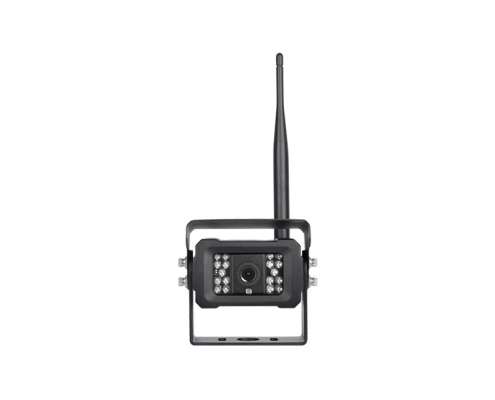

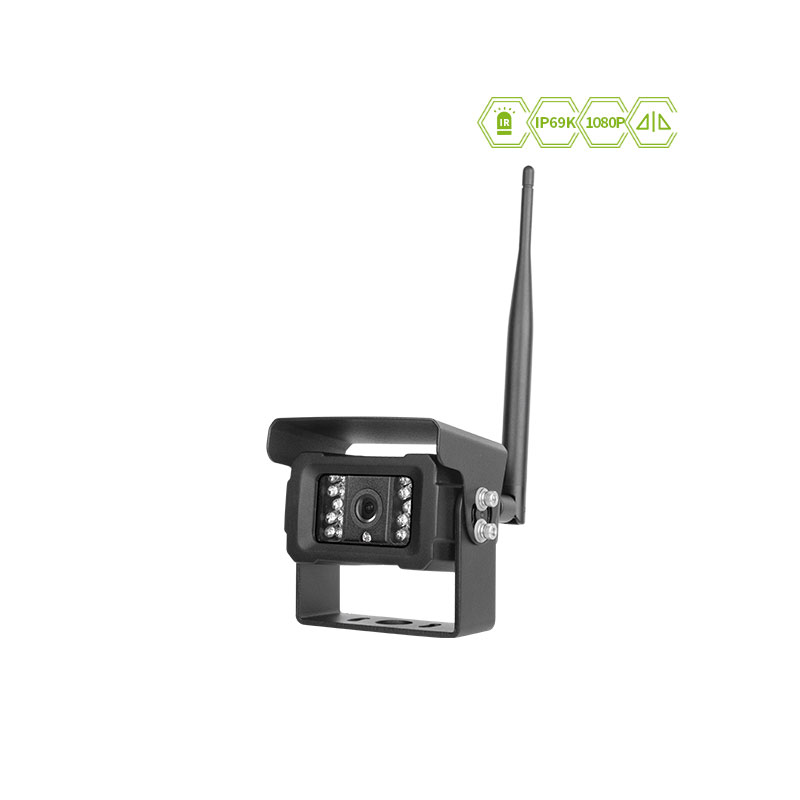

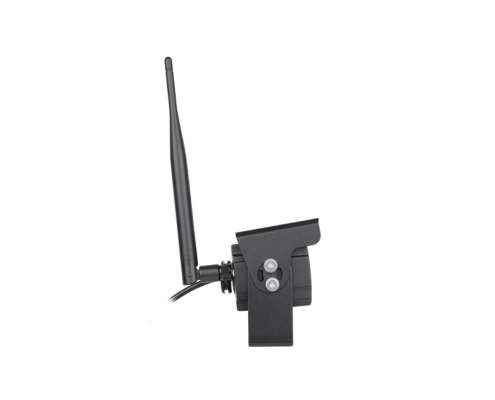

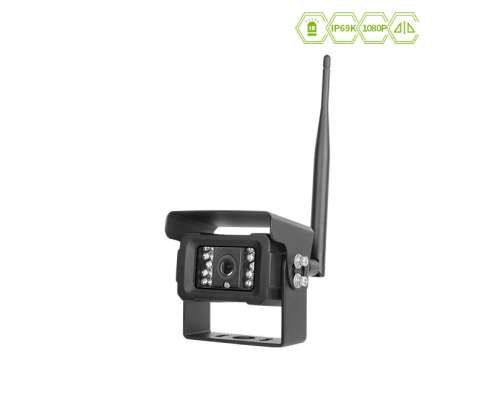

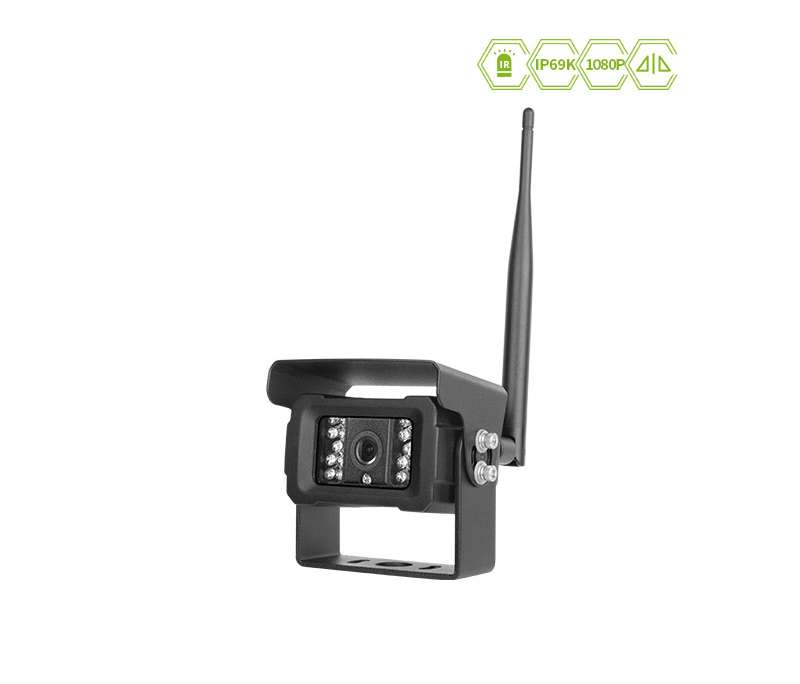

JY-683W wireless HD rear camera with IP69K waterproof rating
Product Features
The JY-683W is a wireless rear-view camera designed for large vehicles, featuring night vision and an IP69K waterproof rating. Equipped with a 1/2.9 CMOS sensor, it delivers clear image quality with a night vision range of up to 10 meters, ensuring clear visibility even in dark environments. Its IP69K waterproof rating allows it to withstand high-pressure water jets and dust, making it suitable for harsh conditions. Additionally, the camera features a wide-angle lens that provides broader coverage, helping drivers avoid obstacles more effectively.
Technical Specifications
| Image Sensor | 1/2.7 CMOS |
| Resolution | 1920 X 1080/1080P |
| Photosensitive area | 2.8μm X 2.8μm |
| Minimum Illumination | 0.01 Lux |
| SNR | ≥38dB |
| Dynamic Range | 81dB |
| Microphone | yes |
| IR LED Qty | 4PCS |
| Night Visual | 5-10M |
| Effective Launch Distance (Empty) | 150M |
| Operating frequency range | 2400-2483.5MHZ |
| Antenna power | 5dB |
| Modulation system | QPSK |
| White balance | AUTO |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC:12V~24V |
| Lens | 2.8mm |
| Lens Angle | H：110° V：60° D：142° |
| Consumption current | DAY：237±50mA；Night：390±50mA |
| Electrostatic Discharge Level | Class B, contact discharge 2kV\4kV is class B, contact discharge 6kV\8kV and air discharge 15kV is class C |
| Waterproof | IP69K |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
