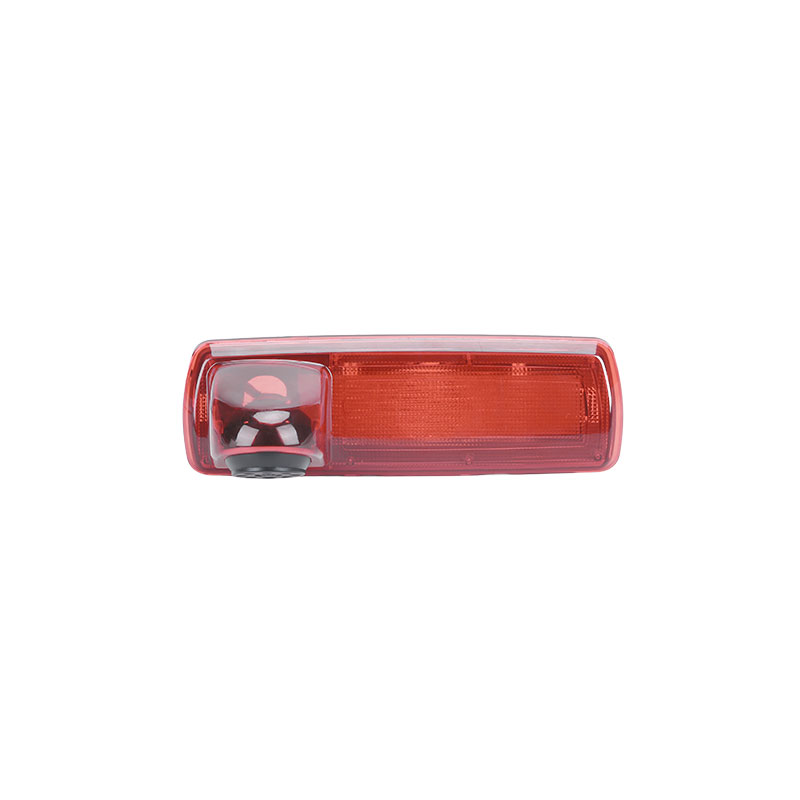

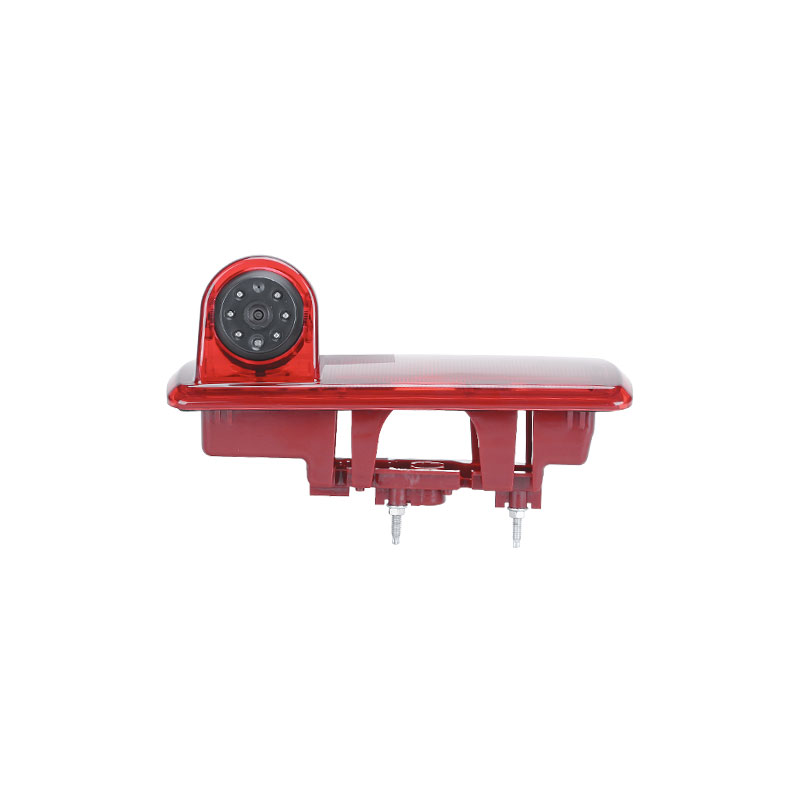

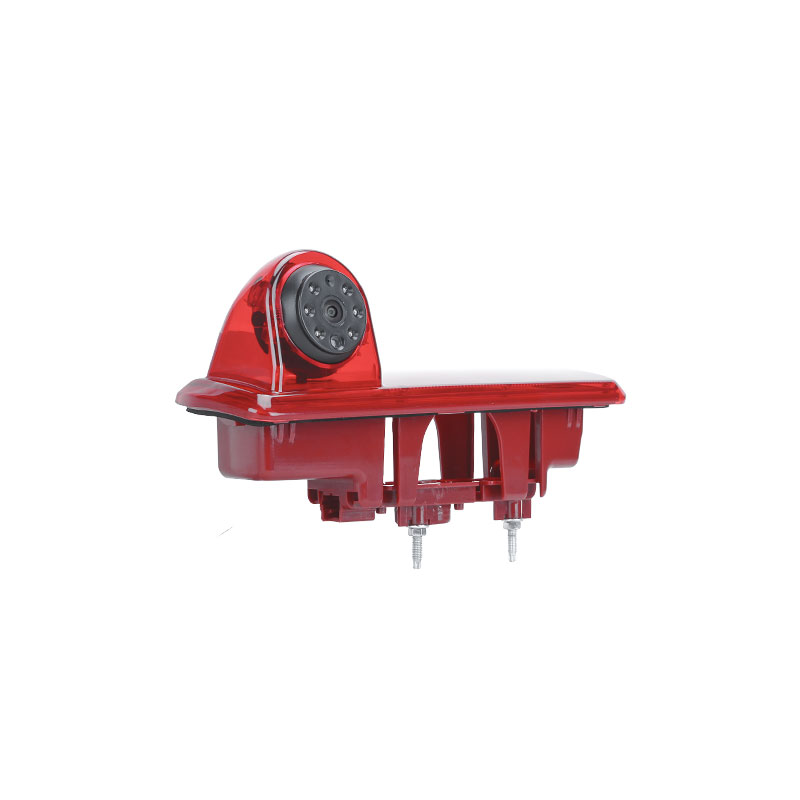

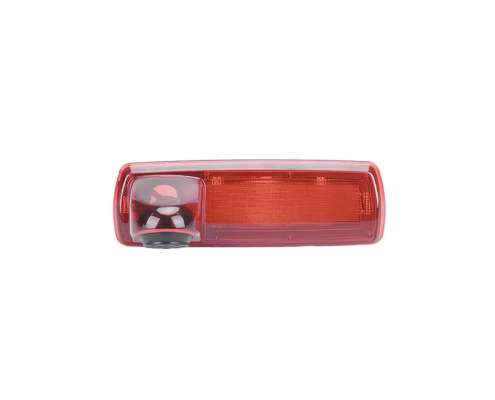

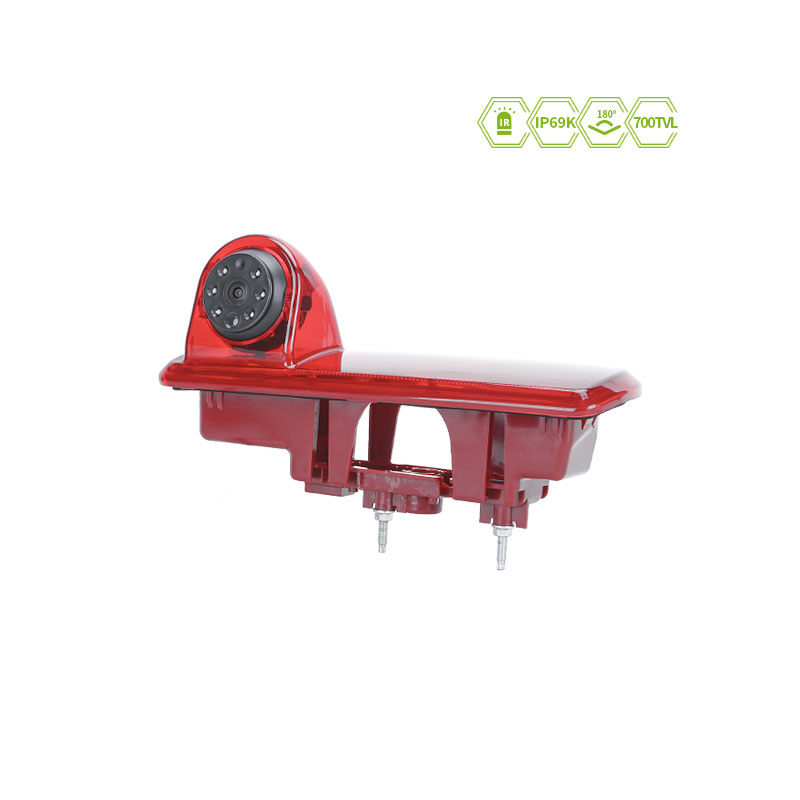

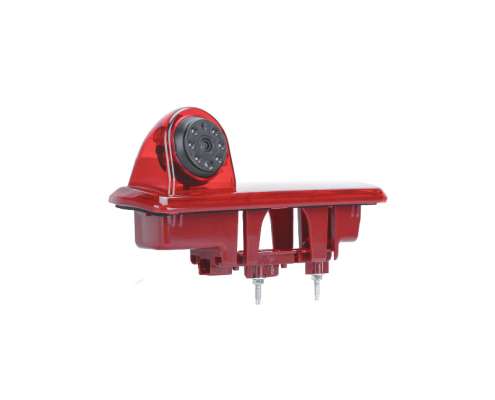

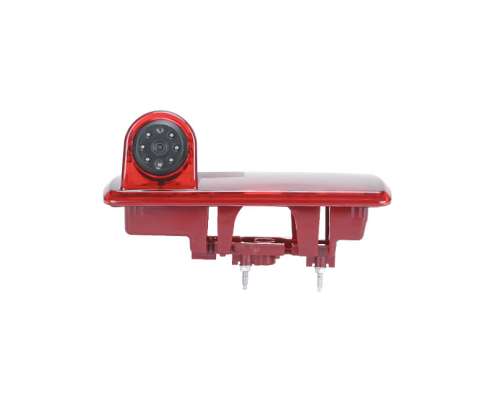

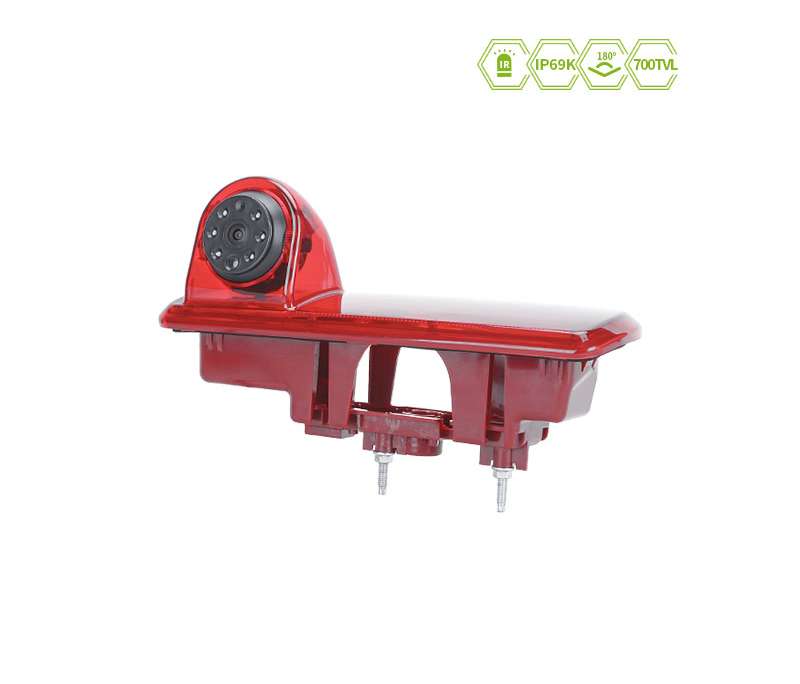

JY-690 third brake light camera for 2014-2022 Renault Traffic, Nissan NV300, 2014-2018 Vauxhall Vivaro & Opel Vivaro B, 2016-2022 Fiat Talento

Product Features

Featuring a wide viewing angle of up to 150 degrees, the Luview JY-690 Third Brake Light Camera is designed for 2014-2022 Renault Traffic & Nissan NV300, 2014-2018 Vauxhall Vivaro & Opel Vivaro B and 2016-2022 Fiat Talento. Choose from three exceptional sensors – Sharp CCD/CMOS/AHD – with resolution levels reaching a remarkable 700TVL! Six built in infrared night vision LEDS offer visibility at night without creating any glare so you’ll never miss what’s happening on the road behind when driving your vehicle.

  • IP68
  • Support mirror switch
  • Suport scale control function
  • bracket material:plastic
  • With night vision function, infrared distance is 10m

Technical Specifications

Image Device 1/3 CMOS PC2099K
TV System NTSC/PAL
Effective Pixels 968(H)×488(V)
Sensing Area 4.880mmⅹ 3.670mm
Sync. System Internal
Resolution 700TVL
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone NO
IR LED Qty 6PCS
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Power Supply DC12V
Lens 2.6mm
Lens Angle 130°
Current Drain 65±5mA
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX
