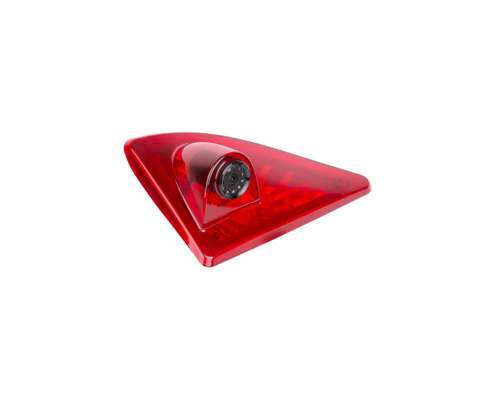

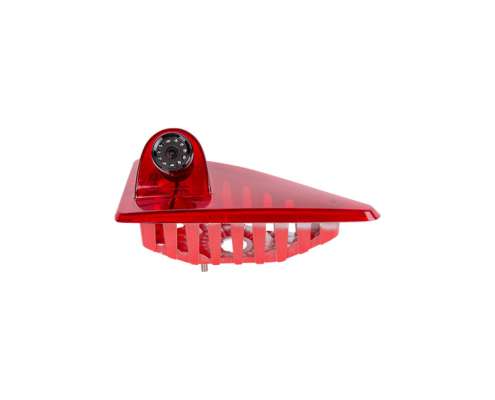

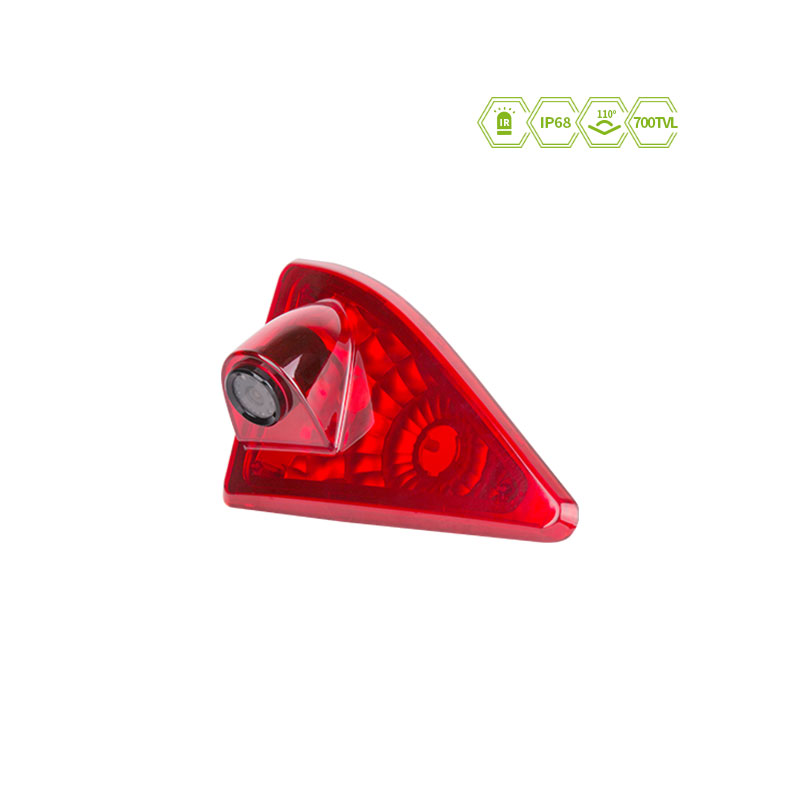

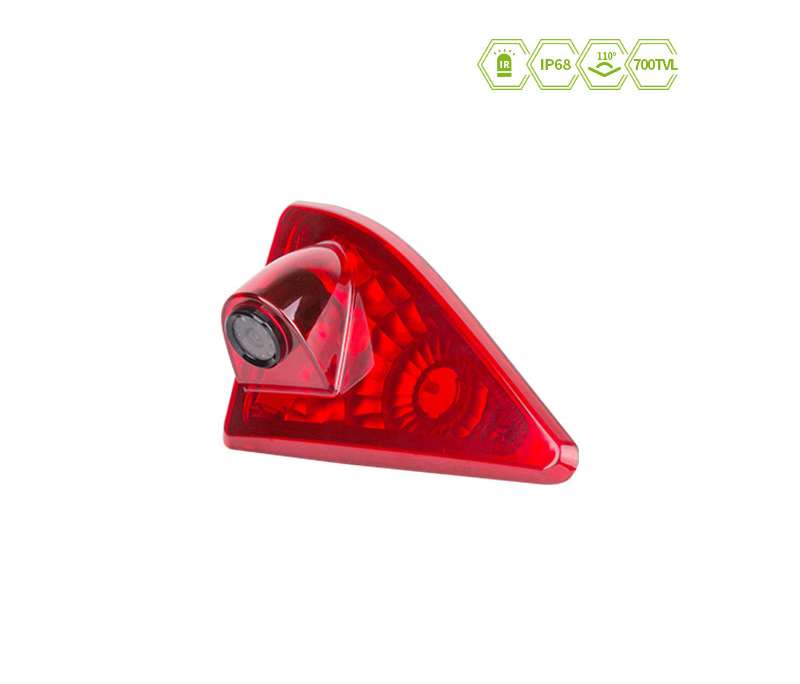

JY-691 third brake light camera for 2010-2021 Vauxhall Movano & Opel Movano, 2010-2020 Renault Master, 2010-2022 Nissan NV400, Nissan Interstar
Product Features
Looking for a reliable third brake light camera? Look no further than Luview’s JY-691, designed to fit 2010-2021 Vauxhall Movano and Opel Movanos; 2010-2020 Renault Masters ; as well as Nissan NV400 (2010-2022) & Interstars. With an IP68 waterproof rating plus free cables / accessories galore – not to mention the one year warranty – this is guaranteed quality at unbeatable bulk prices!
- Waterproof grade IP68
- Support mirror switching
- Support ruler control functions
- With night vision function, infrared distance is 10m
Technical Specifications
| Image Device | 1/4 CMOS |
| TV System | NTSC/PAL |
| Effective Pixels | 648(H)*488(V) |
| Sensing Area | 4.008mm*3.024mm |
| Sync. System | Internal |
| Resolution | 420 TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | NO |
| IR LED Qty | 10PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.1mm |
| Lens Angle | 112° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
