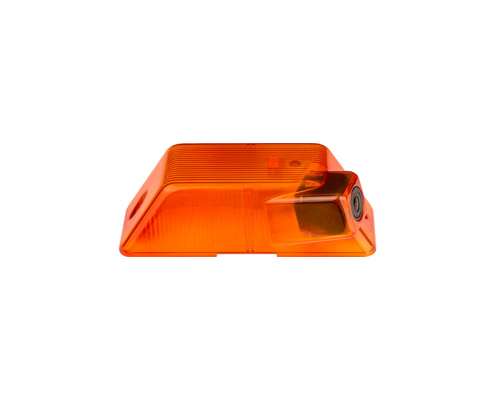

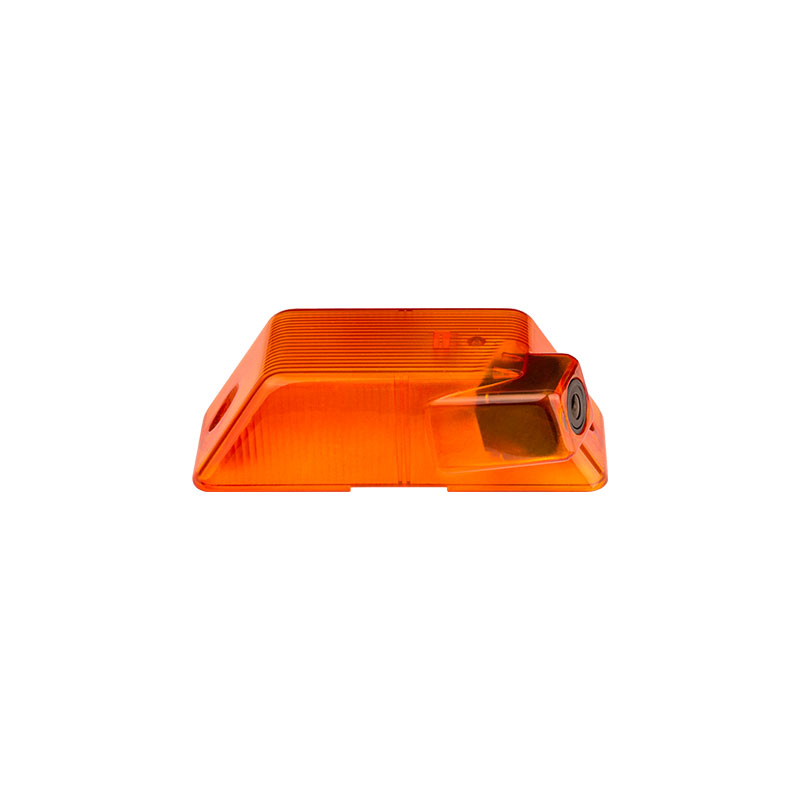

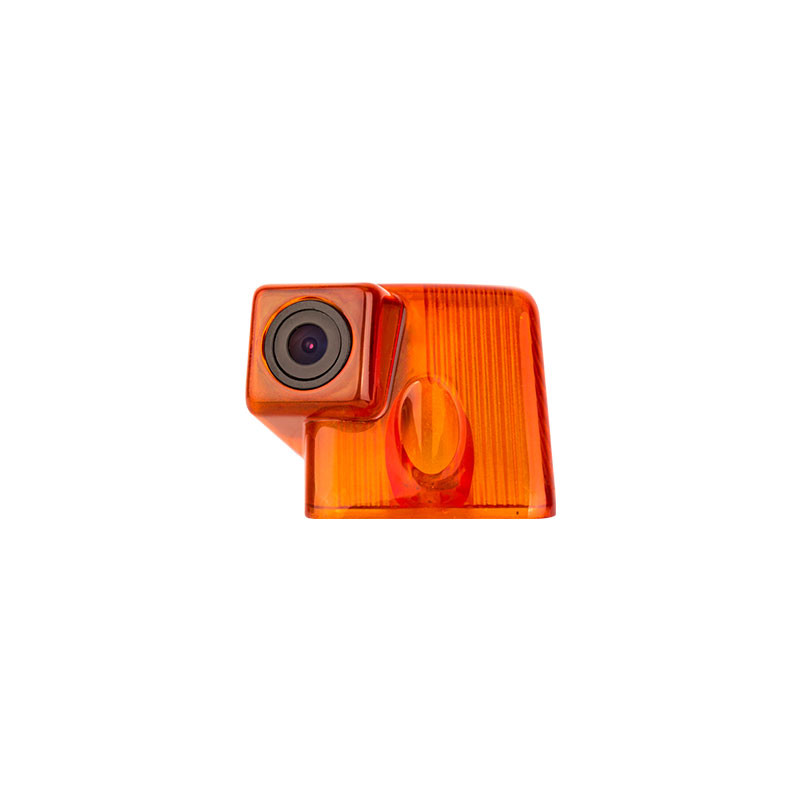

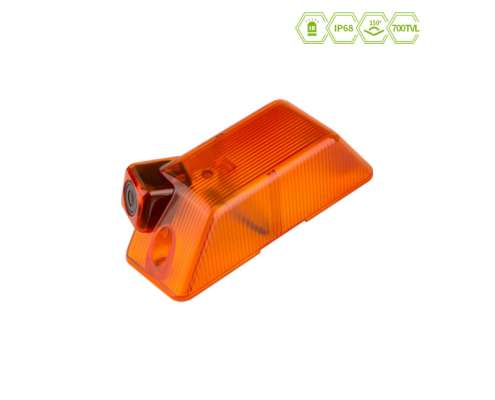

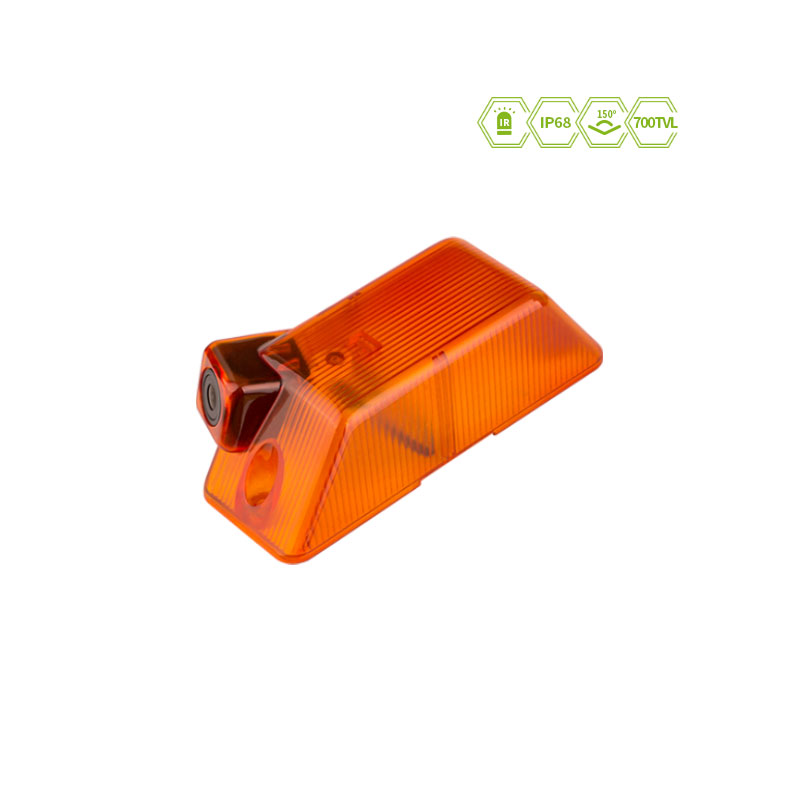

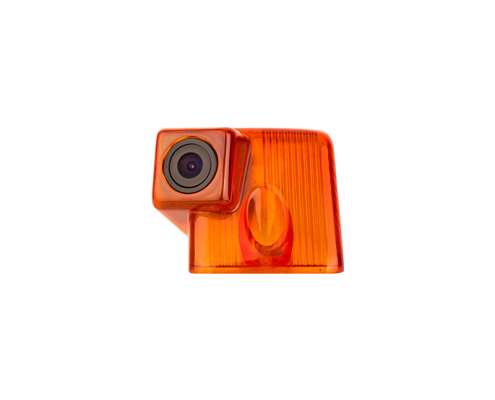

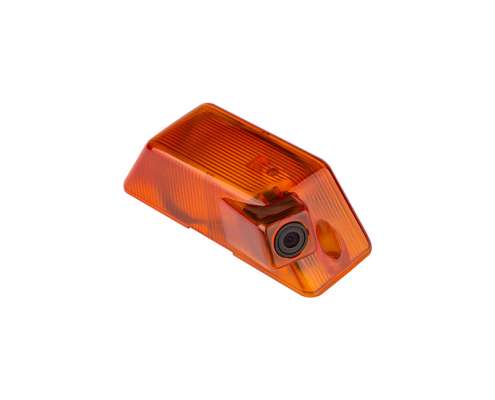

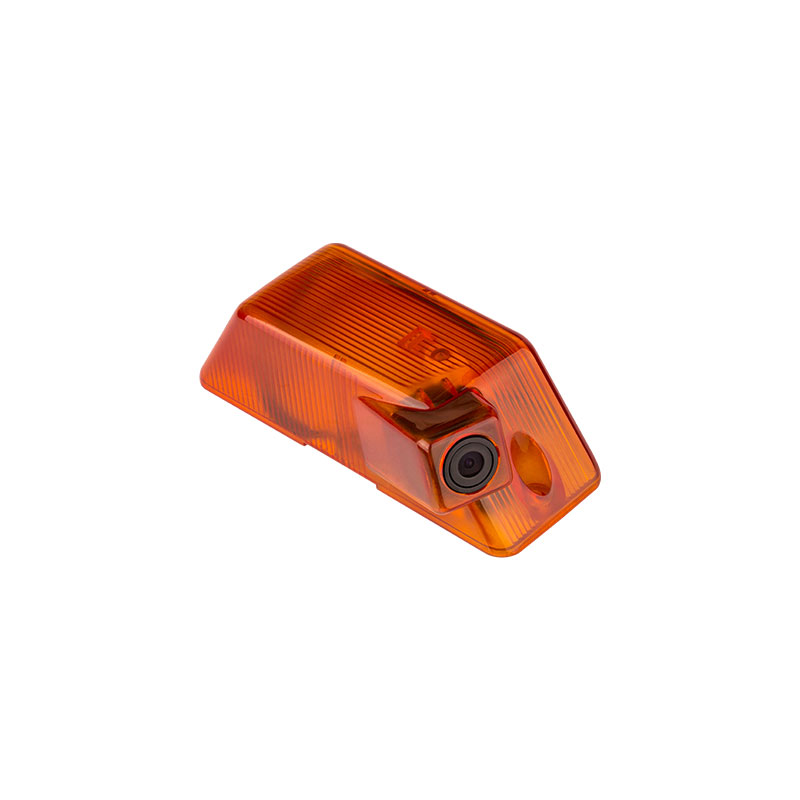

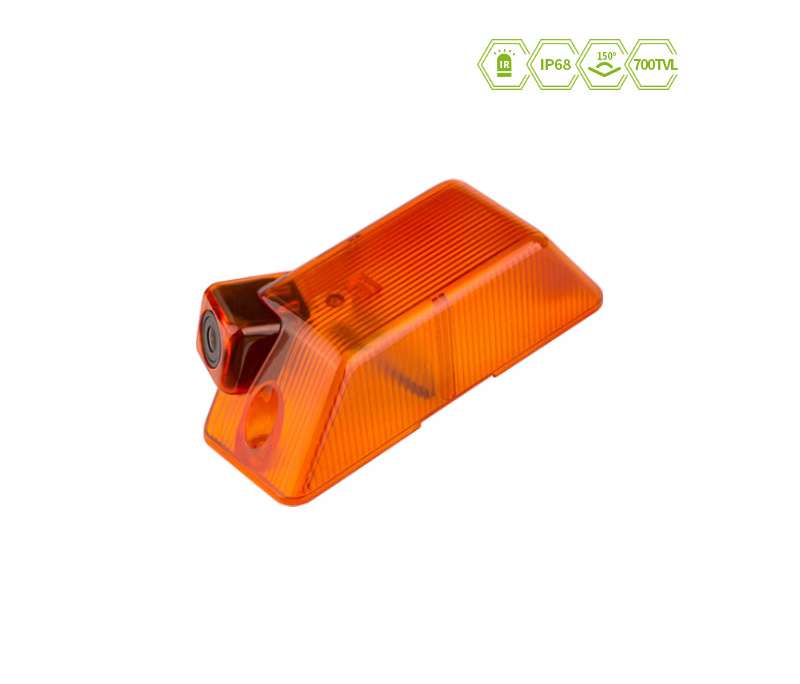

JY-697 rear fender brake light camera for 2017-2022 Mercedes Benz Sprinter and universal Cargo Vans
Product Features
While driving a 2017-2022 Mercedes Benz Sprinter or other universal Cargo Van, it can be easy to miss the normal blind spots in your rearview and side mirrors. Don’t worry – Luview’s JY-697 Brake Light Camera is here for you! This effective camera helps drivers get an unobstructed view of their vehicle’s backside, especially when dealing with large cargo vans that often obstruct more than half of the driver’s vision behind them. Make sure no matter what type of car you drive, safety always comes first – pick up the perfect supplement today with this camera specifically designed for both Mercedes Benzes and Universal Vans alike!
- Use 1/3CMOS sensor
- Waterproof grade IP68
- Support mirror switching
- Support analog hd video 700TVL
- Support ruler control functions
Technical Specifications
| Image Device | 1/3 CMOS PC2099K |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)×488(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 1.7mm |
| Lens Angle | 150° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
