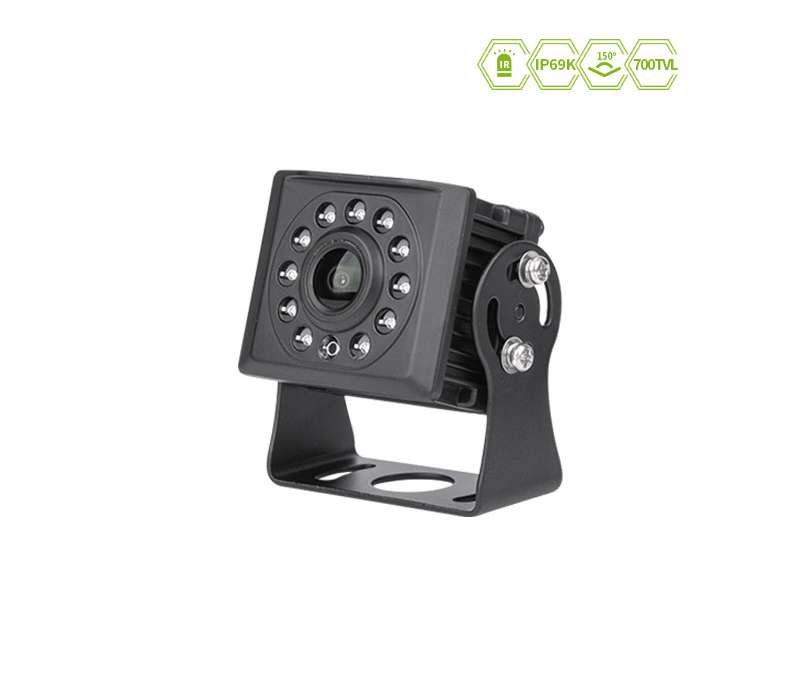

JY-813 High definition waterproof IP69K night vision backup camera

Product Features

Luview JY-813 waterproof night vision camera is specifically designed for large vehicles, ensuring reliable operation even in harsh conditions. With an IP69K waterproof rating, it is suitable for various environments. Equipped with 11 infrared LED lights, it provides clear night vision, covering a range of 13 meters. The mirror switching function enhances usability. Featuring wide-angle view, it offers a broader field of vision, enhancing both safety and convenience for drivers.

  • 1/3 CMOS Sensor with 700TVL Analog HD Video Support
  • IP69K Water and Dust Protection Rating
  • Mirror Image Switching Support
  • Night Vision Function with 13m Infrared Range

Technical Specifications

Image Sensor 1/3 CMOS PC2099K
TV System NTSC/PAL
Effective Pixels 968(H)*488(V)
Sensing Area 4.880mm*3.670mm
Sync. System Internal
Resolution 700 TVL
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone No
IR LED Qty 11PCS
Signal Output Format CVBS
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation OFF
Power Supply DC12V
Lens 1.98mm
Lens Angle H: 125°;V: 83°;D:150°
Current Drain Daytime: 45±5mA;Night Vision: 95±5mA
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX

Product Video
