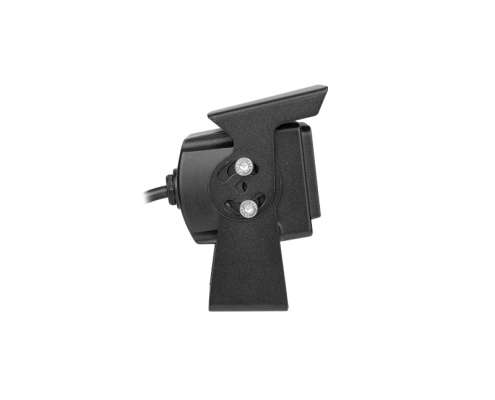

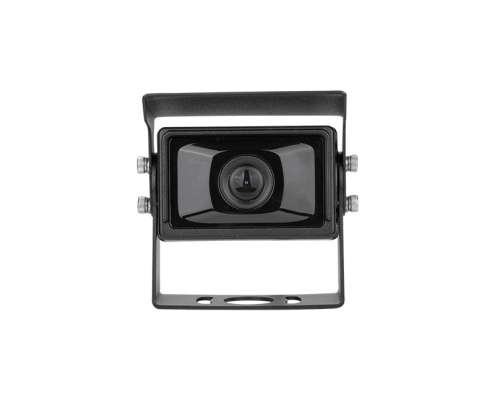

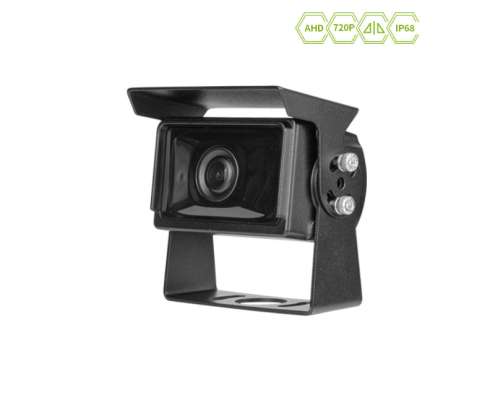

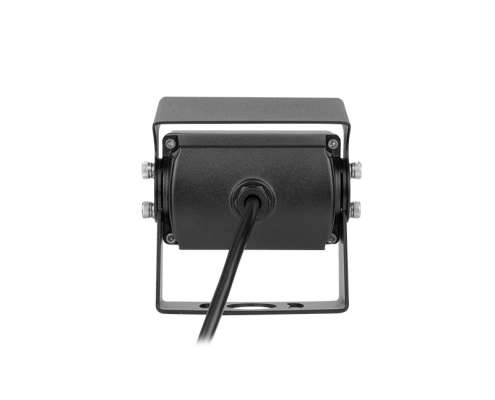

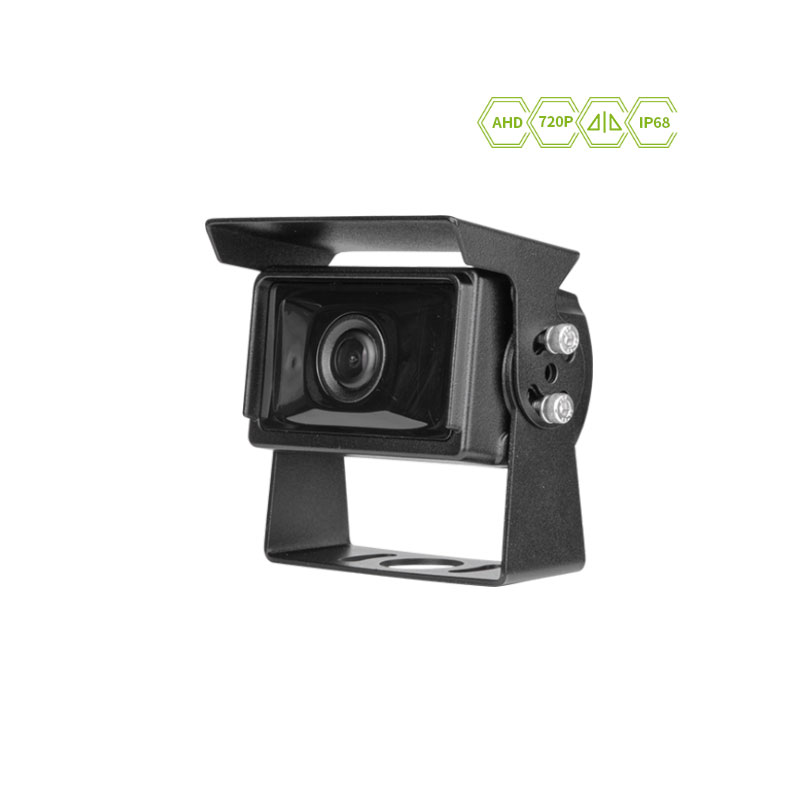

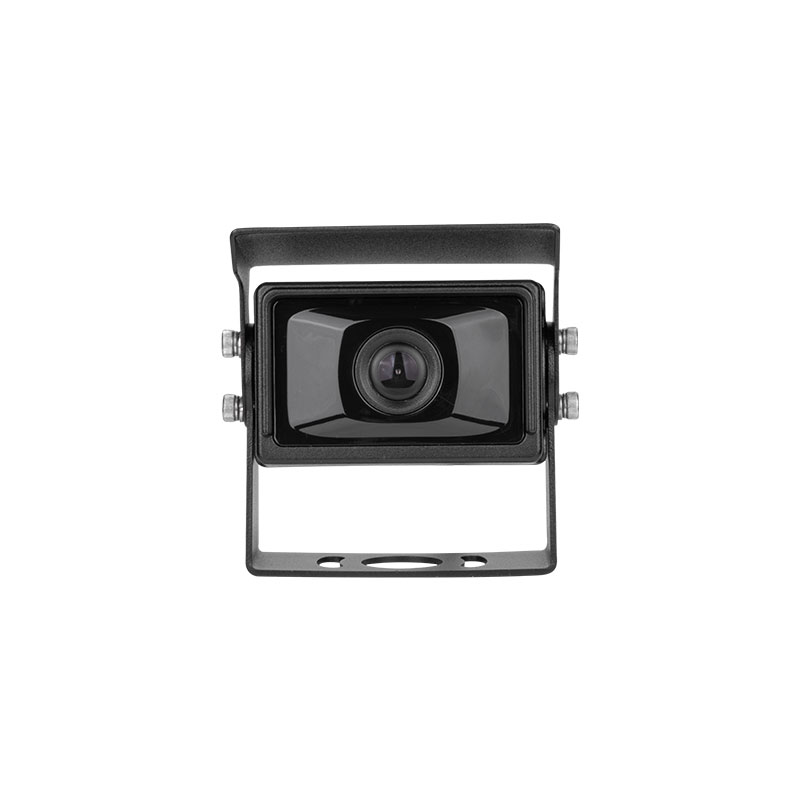

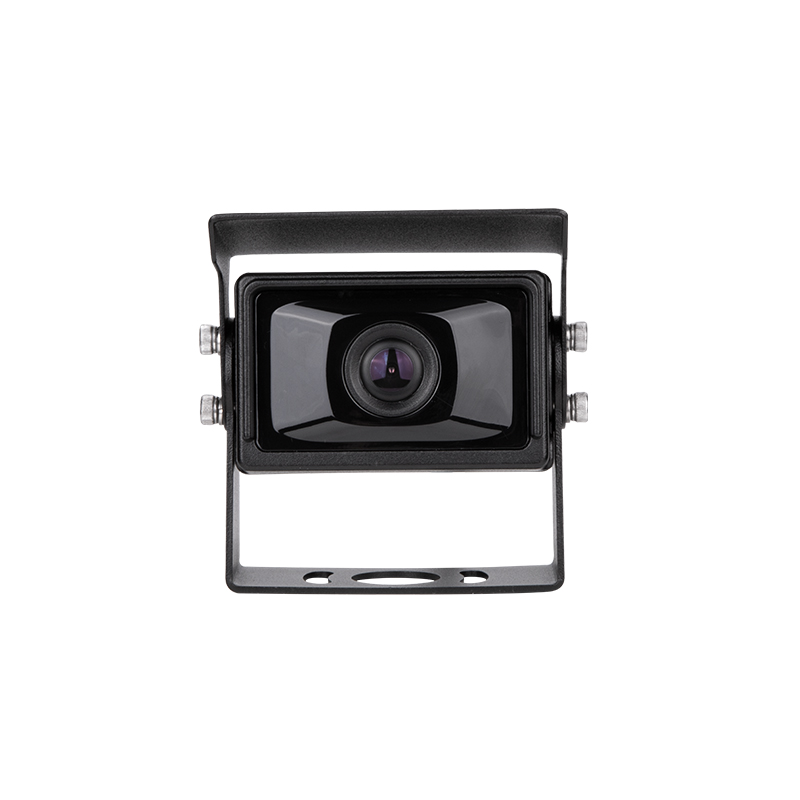

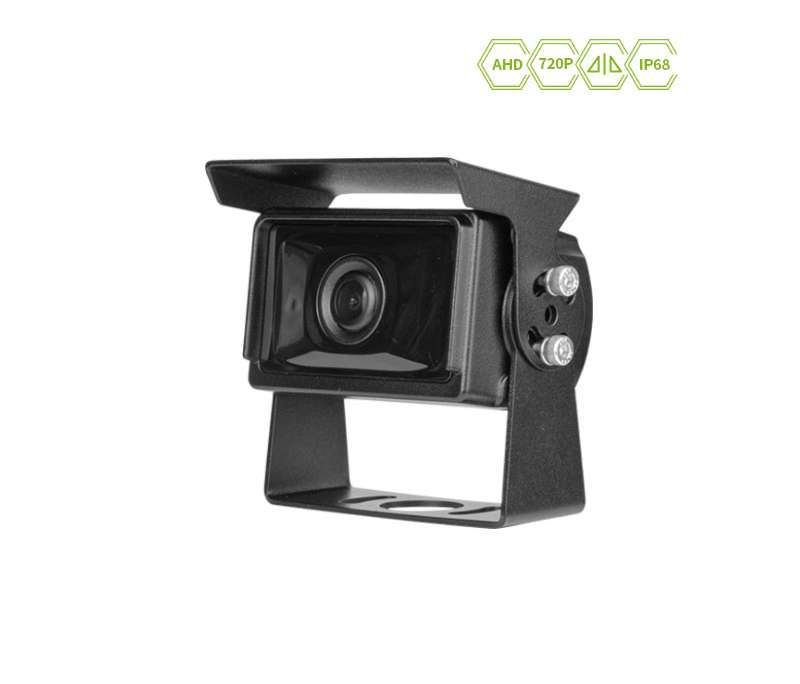

JY-822 AHD waterproof IP68 rear view camera
Product Features
The Luview 1.3-megapixel AHD waterproof camera, specifically designed for reversing blind-spot challenges in trucks, buses, cars, and other vehicles, features an IP68 protection rating to easily handle extreme conditions such as heavy rain and muddy environments. With its innovative one-touch mirror-image switching function, it ensures a clear rear view even in nighttime or poor lighting conditions, effectively solving the industry-wide problem of limited reversing visibility in various vehicles and making every reversing operation safe and worry-free.
-
Adopts a 1/2.9 CMOS sensor with 1.3 million pixels
- Waterproof and dustproof with an IP68 rating
- Supports mirror image switching
- Adaptable for installation at the rear of a vehicle
Technical Specifications
Image Sensor | 1/2.9 CMOS GC2053 |
TV System | PAL |
Video Format | AHD/720P |
Effective Pixels | 1280(H)*720(V) |
Sensing Area | 2.8μm(H)ⅹ 2.8μm(V) |
Sync. System | Internal |
Resolution | 1.3 million pixels |
Minimum Illumination | 0.1 Lux |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 38dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Startup Time | <1s |
Lens | 2.5mm |
Lens Angle | H:120°±5° V:60° ±5° |
Current Drain | 65±5mA/12V |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Waterproof Rating | IP68 |
