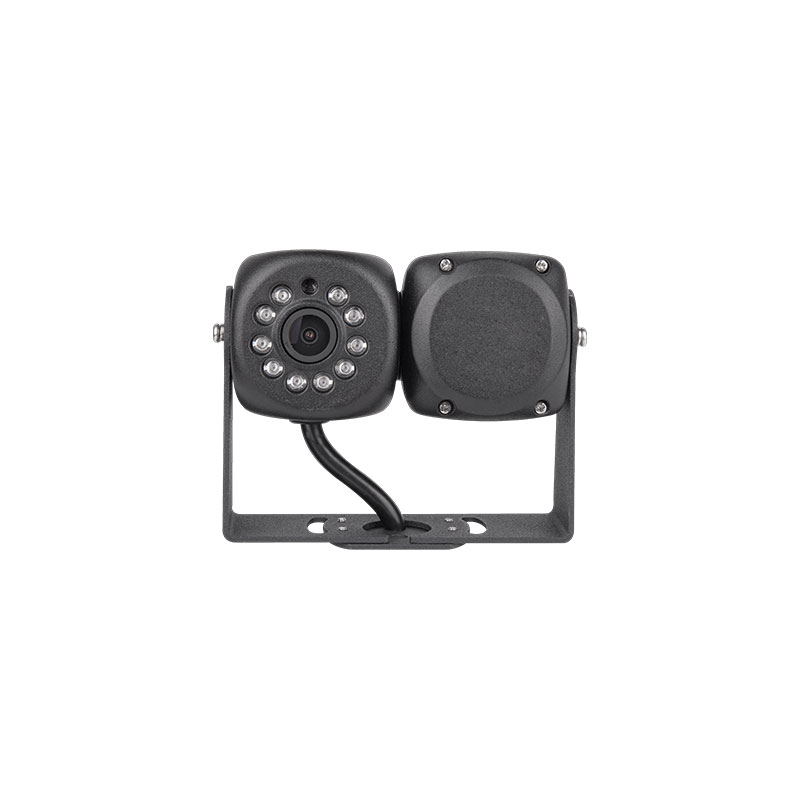

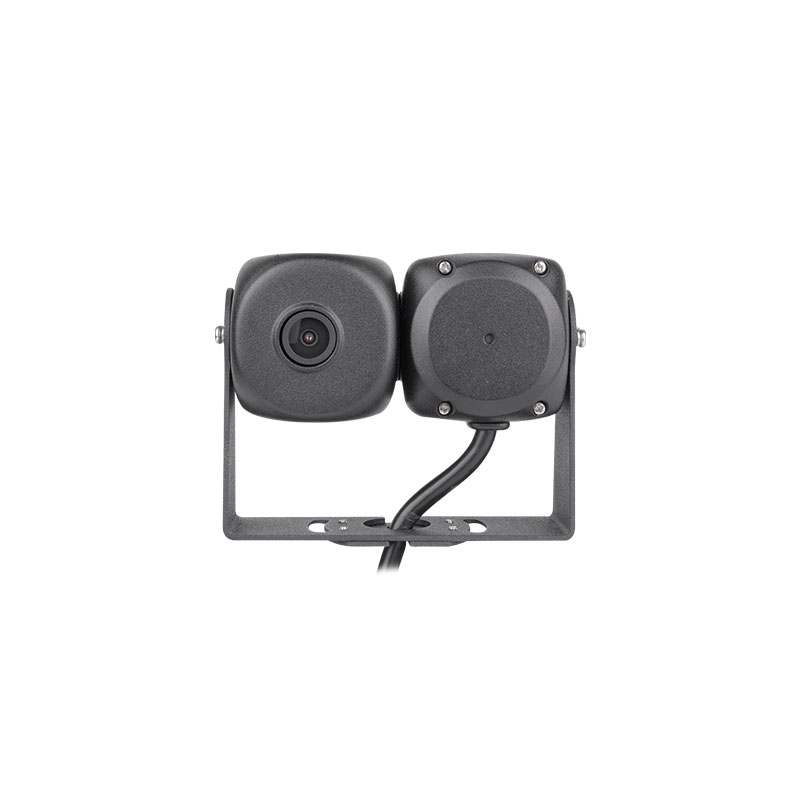

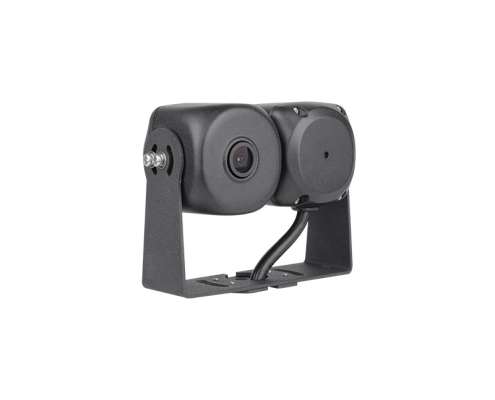

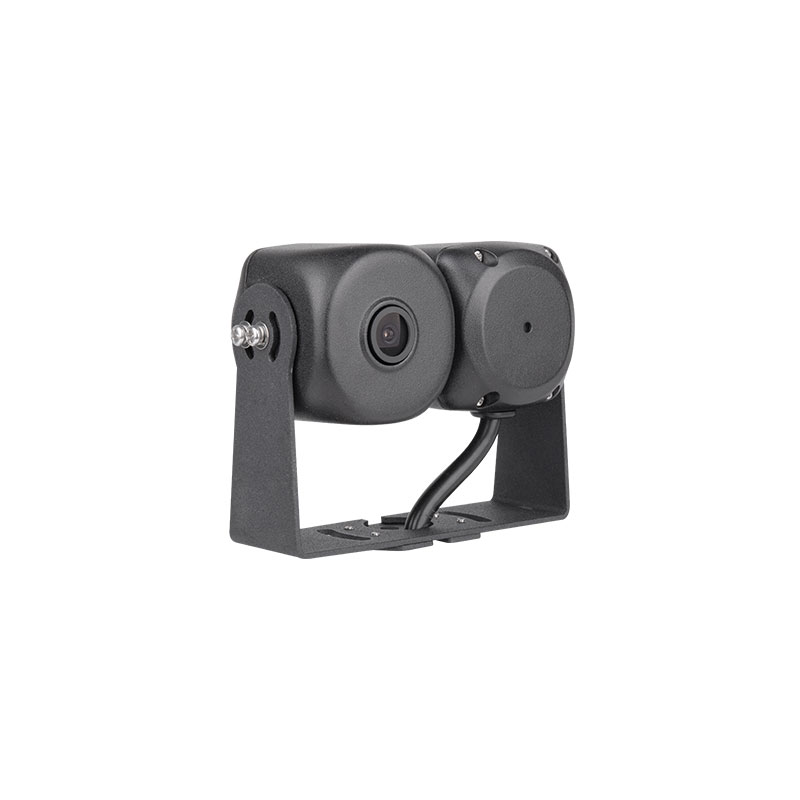

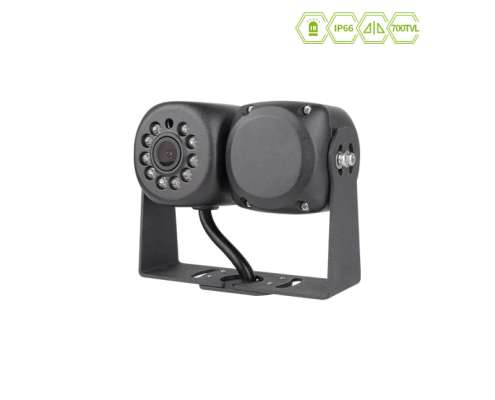

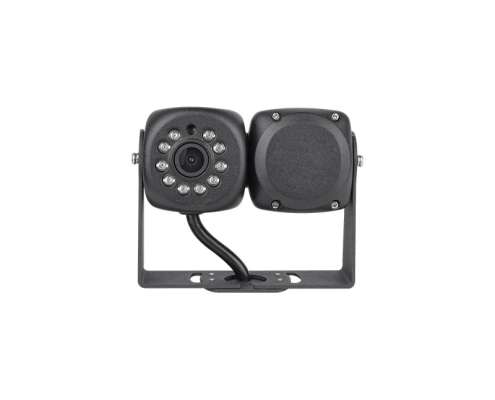

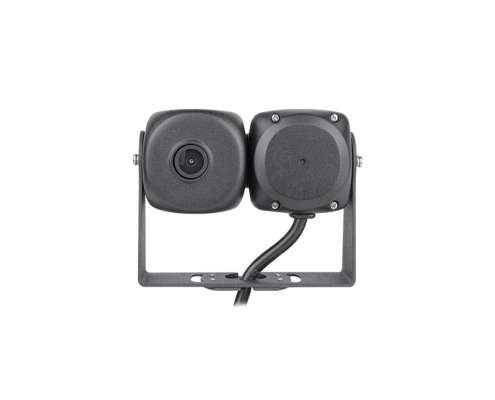

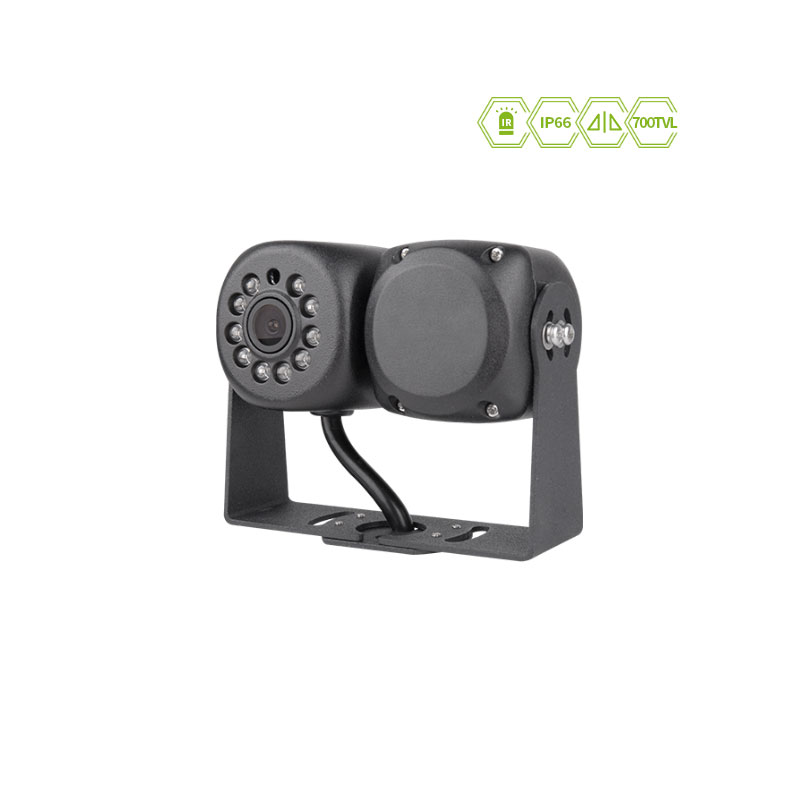

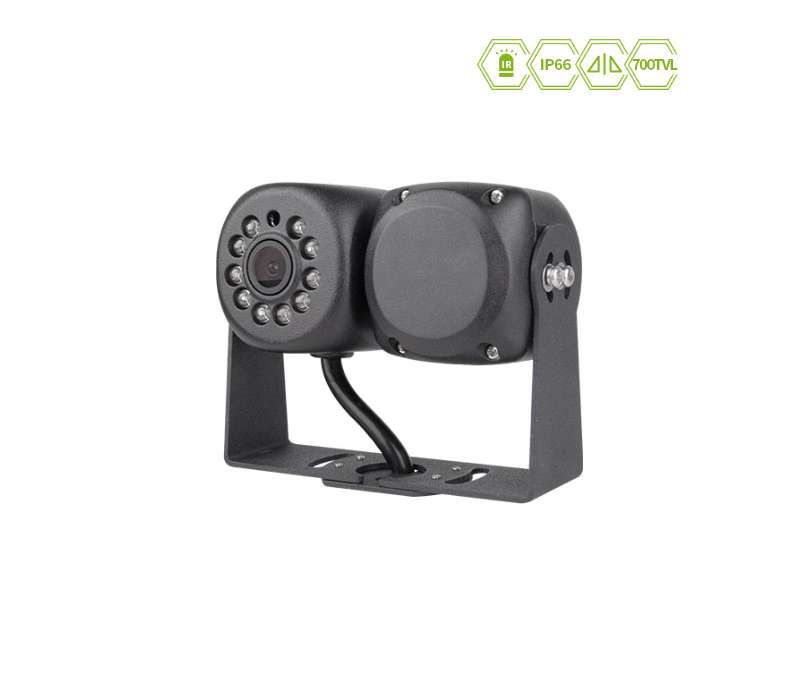

JY-861 Dual Lens Camera for Front View and Driver Monitoring, Fleet Management
JY-861 dual lens camera for front view, driver monitoring, fleet management from Luview, powered by Sony 2 million star wide dynamic sensor, with better night vision ability and exclusively design, it is perfect for vehicle DVR and fleet management. If you are looking for fleet management backup camera in bulk quantity, please feel free to contact [email protected] .
Product Features
- Adopt Sony 2 million star wide dynamic sensor
- The illumination reaches 0.001 lux, and the visibility of night vision image is clearer and more delicate
- Support four in one signal output, ahd / TVI / CVI / CVBS optional
- Support IR-cut switch to realize day and night monitoring
- Support wide dynamic range up to 120dB
- Adaptive noise reduction, 2d-dnr, 3d-dnr
Technical Specifications
| Image Sensor | 1/2.8 Sony |
| TV System | NTSC / PAL (optional) |
| Effective Pixels | 1920(H)×1080(V) |
| Frame Rate | 1080P@25fps / 1080P@30fps |
| Sync. System | Internal |
| Resolution | Default 1080p / 2 mega-pixel (720p switchable) |
| Minimum Illumination | 0.001 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 10PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | progressive scanning |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC 9V ~ 16V |
| Lens | 2.8mm |
| Lens Angle | 120° |
| Current Drain | 100±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
