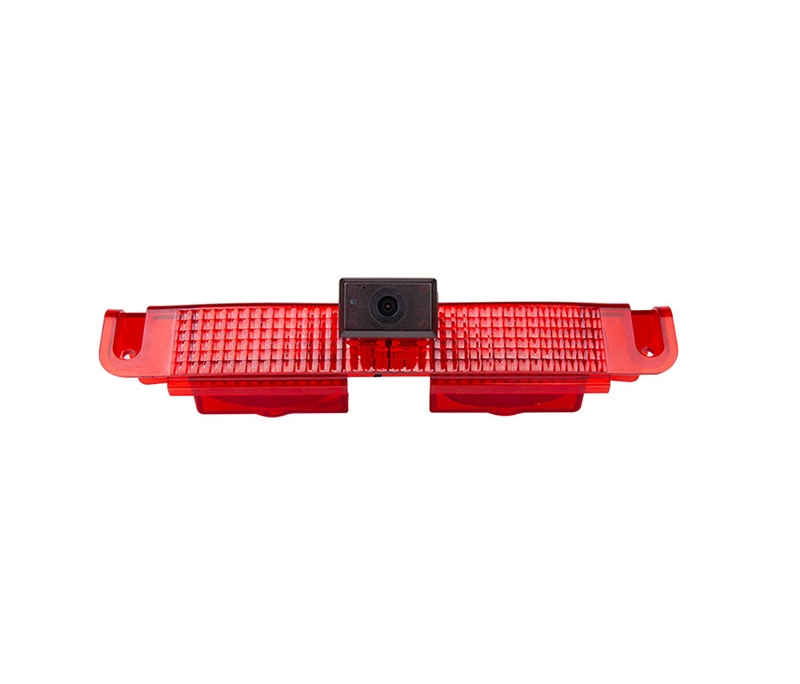

JY-871 brake light camera for 2003-2023 Chevy Express & GMC Savana Van
Product Features
The Luview JY-871 brake light camera is an excellent upgrade for any 2003-2023 Chevy Express or GMC Savana Van, equipped with night vision and two infrared lights that provide remarkable visibility even in dark conditions. With a high resolution of 700 TV lines, you’ll enjoy crystal clear video images after installation. Furthermore, this advanced device has the highest IP rating at IP68 ensuring protection from all weather elements including storms as well as optimal seismic performance.
- Waterproof grade IP69K
- With night vision function
- support analog hd video 700TVL
- Support mirror switching and ruler control functions
Technical Specifications
| Image Device | 1/3 CMOS PC1058K |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)*592(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 2PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 1.7mm |
| Lens Angle | 145° |
| Current Drain | Daytime current 50mA ± 5, night vision current 210mA ± 5 |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
