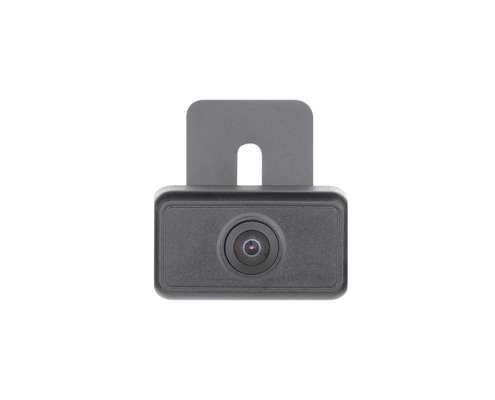

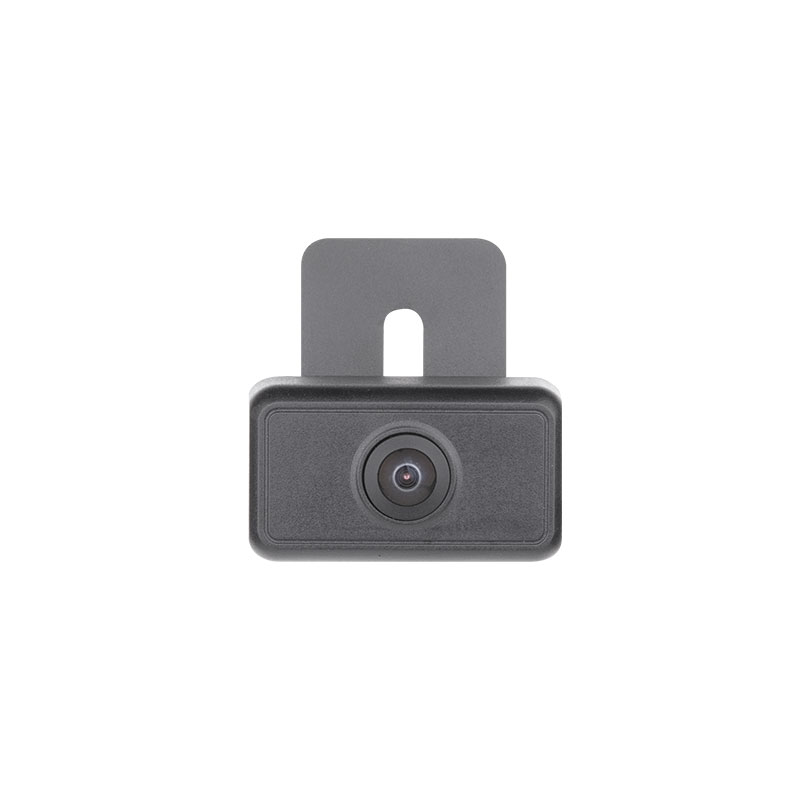

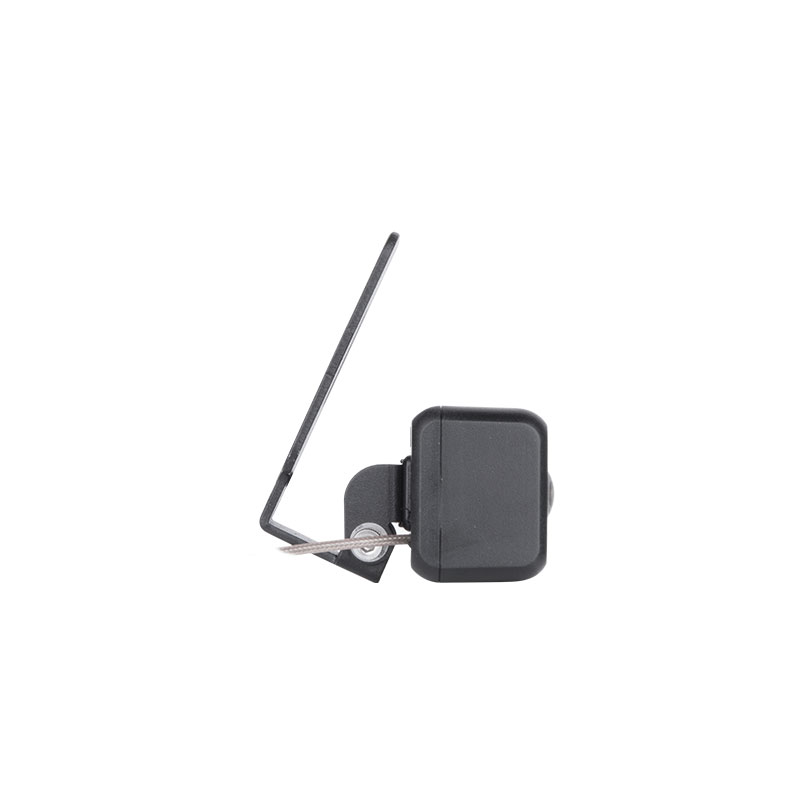

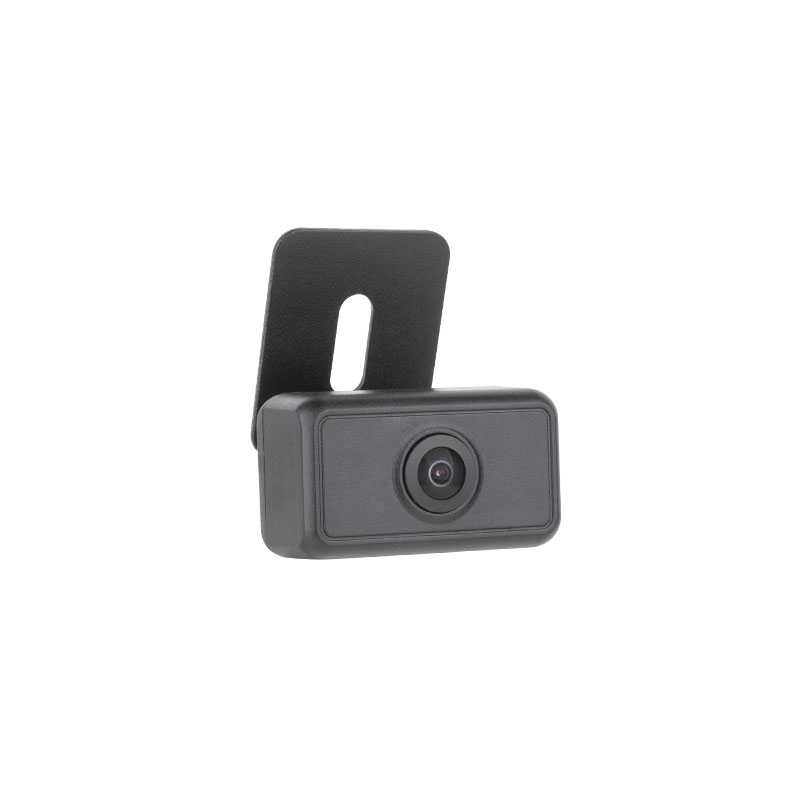

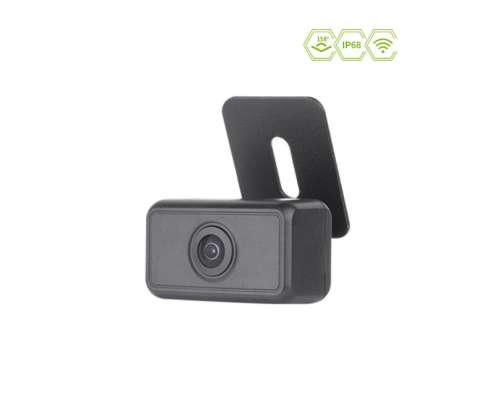

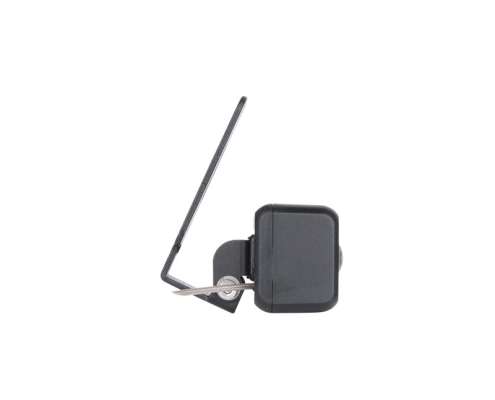

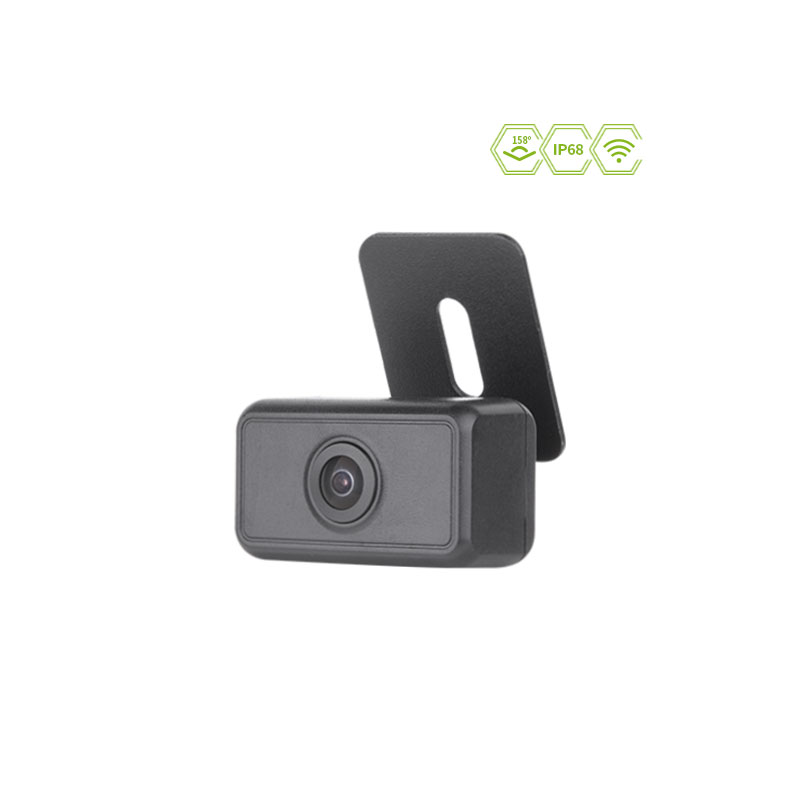

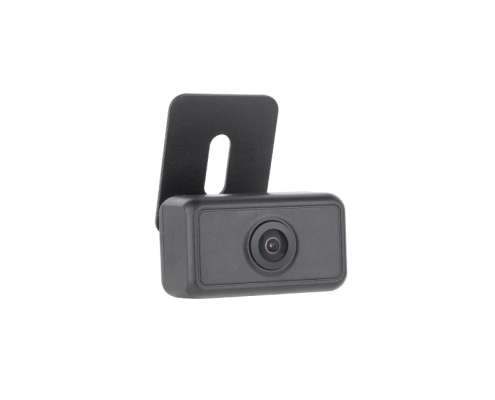

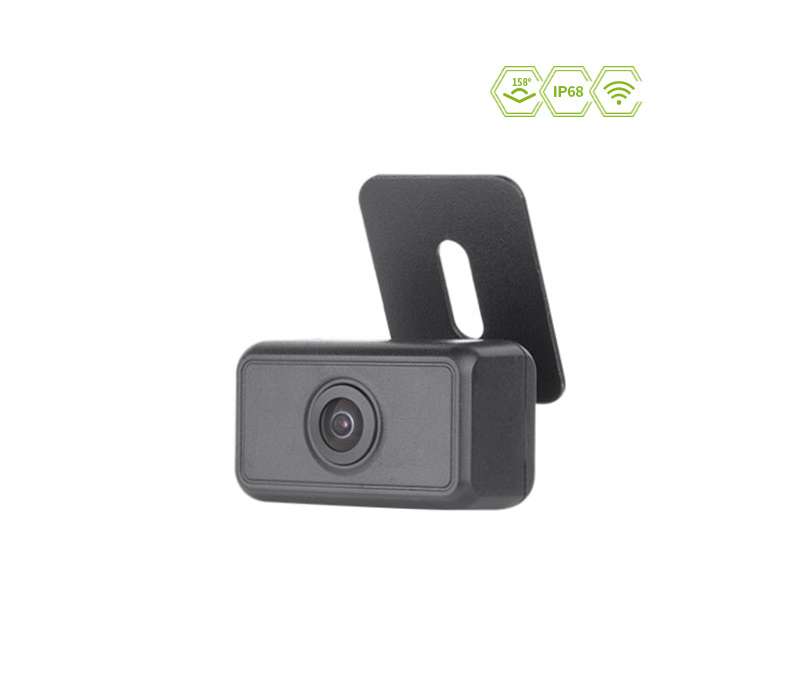

JY-367W wide angle wireless IP68 waterproof camera with 200m transmission range
Product Features
Luview JY-367W wide angle wireless IP68 waterproof camera features 1/3 CMOS sensor and a 158°ultra-wide angle lens. It is equipped with IP68 waterproof design, ensuring reliable operation in various weather conditions. With a clear line-of-sight transmission range of up to 200 meters, it guarantees stable and dependable signal transmission. Suitable for various security monitoring and outdoor scenarios, it provides a broader field of view and enhances operational efficiency.
- Adopts a 1/3 CMOS sensor
- Lens achieves a maximum angle of 158°
- Waterproof rating of IP68
- Effective transmission distance of up to 200 meters in open areas
Technical Specifications
| Image Sensor | 1/3 CMOS SC1336 |
| Effective Pixels | 1280 x 720/720P |
| Sensing Area | 3.75μm x 3.75μm |
| Effective Transmission Distance (open area) | 200M |
| Resolution | 100W |
| Video Decoding Format | H.264/H.265 |
| Operating Frequency Range | 2412-2484MHz |
| Maximum Transmission Power | 21dB |
| Antenna Power | 4dB |
| Reception Sensitivity | -90dBm |
| Image Delay | 120ms |
| Power Supply Voltage | DC:9-18V，DC≤1.5W |
| Lens | 2.0mm |
| Lens Angle | H:138° V:77° D:158° |
| Waterproof Rating | IP68 |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
